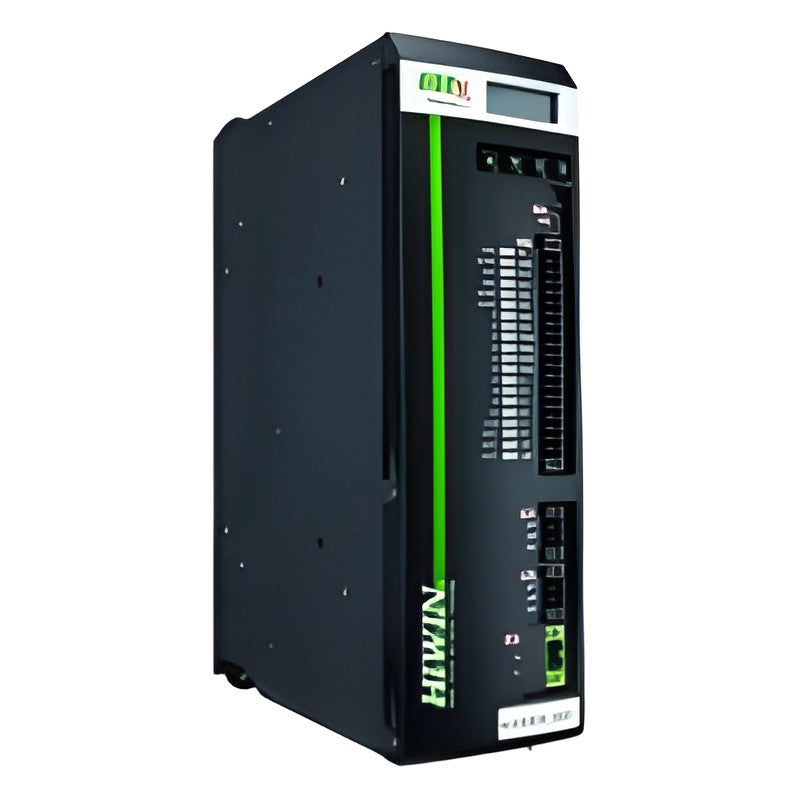

HIWIN D1-N EtherCAT Servo Drives (2.1-21 A)

HIWIN D1-N EtherCAT Servo Drives (2.1-21 A)

HIWIN D1-N servo drive amplifiers with EtherCAT for linear motors, torque motors and AC servo motors, continuous current 2.1 A to 21 A.

Key features

  • Drives linear motors, torque motors and AC servo motors
  • EtherCAT: CoE (E type) or HIWIN mega-ulink (F type)
  • IGBT PWM vector control, 16/8 kHz switching
  • Peak current up to 3x continuous for 1 s
  • Supplied as set with CK4 connector kit

Specifications

Series D1-N
Continuous current 2.1, 4.2, 8.5, 21 A
Peak current 6.4, 12.7, 25.5, 63.6 A (1 s)
Network E: EtherCAT CoE, F: EtherCAT mega-ulink
Motors Linear, torque, AC servo
Set contents 1 x D1-N, 1 x connector kit CK4
Source HIWIN D1-N Assembly and Commissioning Instructions 2015, pp.19, 59, 179
D1-N-09-E0-2-0-00 Cont. current: 2.1 A | Peak: 6.4 A | Network: EtherCAT CoE
D1-N-09-F0-2-0-00 Cont. current: 2.1 A | Peak: 6.4 A | Network: mega-ulink
D1-N-18-E0-2-0-00 Cont. current: 4.2 A | Peak: 12.7 A | Network: EtherCAT CoE
D1-N-18-F0-2-0-00 Cont. current: 4.2 A | Peak: 12.7 A | Network: mega-ulink
D1-N-36-E0-2-1-00 Cont. current: 8.5 A | Peak: 25.5 A | Network: EtherCAT CoE
D1-N-36-F0-2-1-00 Cont. current: 8.5 A | Peak: 25.5 A | Network: mega-ulink
D1-N-90-E0-2-1-00 Cont. current: 21 A | Peak: 63.6 A | Network: EtherCAT CoE
D1-N-90-F0-2-1-00 Cont. current: 21 A | Peak: 63.6 A | Network: mega-ulink
Servo DrivesHIWIN
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN D1-N EtherCAT Servo Drives (2.1-21 A)

Brand HIWIN·Servo Drives

Available part numbers (8)

D1-N-09-E0-2-0-00, D1-N-09-F0-2-0-00, D1-N-18-E0-2-0-00, D1-N-18-F0-2-0-00, D1-N-36-E0-2-1-00, D1-N-36-F0-2-1-00, D1-N-90-E0-2-1-00, D1-N-90-F0-2-1-00

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D1-N-09-E0-2-0-00Cont. current: 2.1 A | Peak: 6.4 A | Network: EtherCAT CoE
D1-N-09-F0-2-0-00Cont. current: 2.1 A | Peak: 6.4 A | Network: mega-ulink
D1-N-18-E0-2-0-00Cont. current: 4.2 A | Peak: 12.7 A | Network: EtherCAT CoE
D1-N-18-F0-2-0-00Cont. current: 4.2 A | Peak: 12.7 A | Network: mega-ulink
D1-N-36-E0-2-1-00Cont. current: 8.5 A | Peak: 25.5 A | Network: EtherCAT CoE
D1-N-36-F0-2-1-00Cont. current: 8.5 A | Peak: 25.5 A | Network: mega-ulink
D1-N-90-E0-2-1-00Cont. current: 21 A | Peak: 63.6 A | Network: EtherCAT CoE
D1-N-90-F0-2-1-00Cont. current: 21 A | Peak: 63.6 A | Network: mega-ulink
