Inovance MD810 Series Rectifier Unit (Common DC Bus Power Supply)

Inovance MD810 Series Rectifier Unit (Common DC Bus Power Supply)

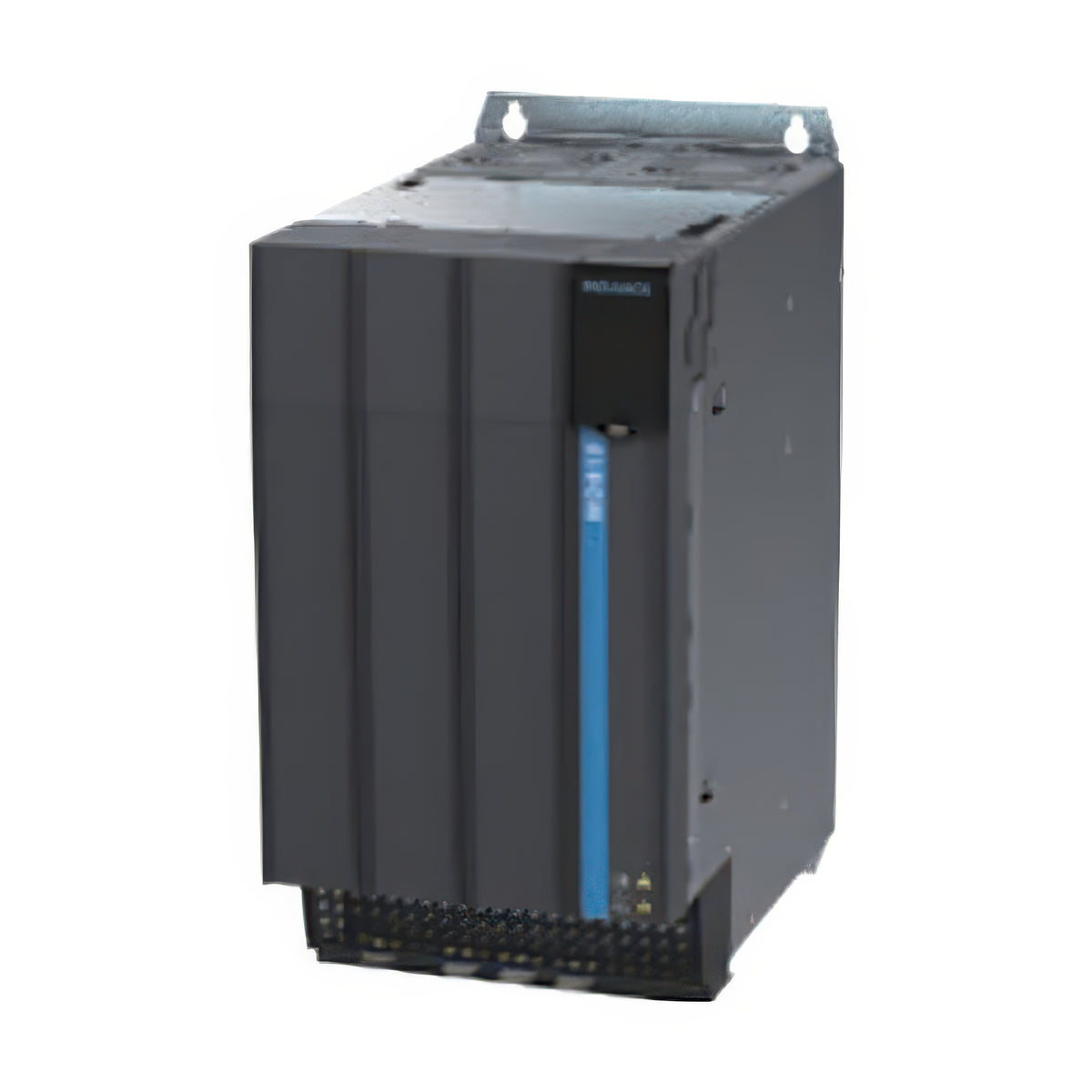

The MD810 rectifier is the power supply unit of the Inovance MD810 compact AC multi-drive system, converting 3-phase 380-480 VAC mains into a common DC bus.

Key features

  • It feeds MD810 drive modules and IS810N multi-axis servo drive modules mounted side by side on the shared DC bus, so regenerative energy is shared between axes
  • Five power ratings from 22 kW to 355 kW are available; the 22 kW and 45 kW units have a built-in braking unit, while larger units use external MDBUN braking units
  • RS485 (Modbus-RTU), CANopen and CANlink communication are built in
  • The system features a built-in DC reactor, a separate heatsink cooling channel and conformal-coated PCBs for durability

Specifications

Supply 3-phase 380-480 VAC
Communication built-in RS485 (Modbus-RTU), CANopen and CANlink
Optional features none
MD810-20M4T22G100-INT Rated power: 22 kW | Supply: 3-phase 380-480 VAC | Rated input AC current: 59 A | Rated output DC current: 56 A | Size: 1 (50 mm width) | Braking unit: Built-in | Communication: built-in RS485 (Modbus-RTU), CANopen and CANlink | Optional features: none | Dimensions (W x D x H): 50 x 305 x 350 mm
MD810-20M4T45G100-INT Rated power: 45 kW | Supply: 3-phase 380-480 VAC | Rated input AC current: 112 A | Rated output DC current: 110 A | Size: 2 (100 mm width) | Braking unit: Built-in | Communication: built-in RS485 (Modbus-RTU), CANopen and CANlink | Optional features: none
MD810-20M4T110G000-INT Rated power: 110 kW | Supply: 3-phase 380-480 VAC | Rated input AC current: 196 A | Rated output DC current: 240 A | Size: 3 (200 mm width) | Braking unit: External MDBUN-60-(5)T x 2 | Communication: built-in RS485 (Modbus-RTU), CANopen and CANlink | Optional features: none | Dimensions (W x D x H): 200 x 305 x 350 mm
MD810-20M4T160G000-INT Rated power: 160 kW | Supply: 3-phase 380-480 VAC | Rated input AC current: 292 A | Rated output DC current: 358 A | Size: 4 (300 mm width) | Braking unit: External MDBUN-90-(5)T x 2 | Communication: built-in RS485 (Modbus-RTU), CANopen and CANlink | Optional features: none | Dimensions (W x D x H): 300 x 305 x 350 mm
MD810-20M4T355G000-INT Rated power: 355 kW | Supply: 3-phase 380-480 VAC | Rated input AC current: 619 A | Rated output DC current: 759 A | Size: 5 (180 mm width) | Braking unit: External MDBUN-200-(5)T x 3 | Communication: built-in RS485 (Modbus-RTU), CANopen and CANlink | Optional features: none | Dimensions (W x D x H): 180 x 445 x 800 mm
