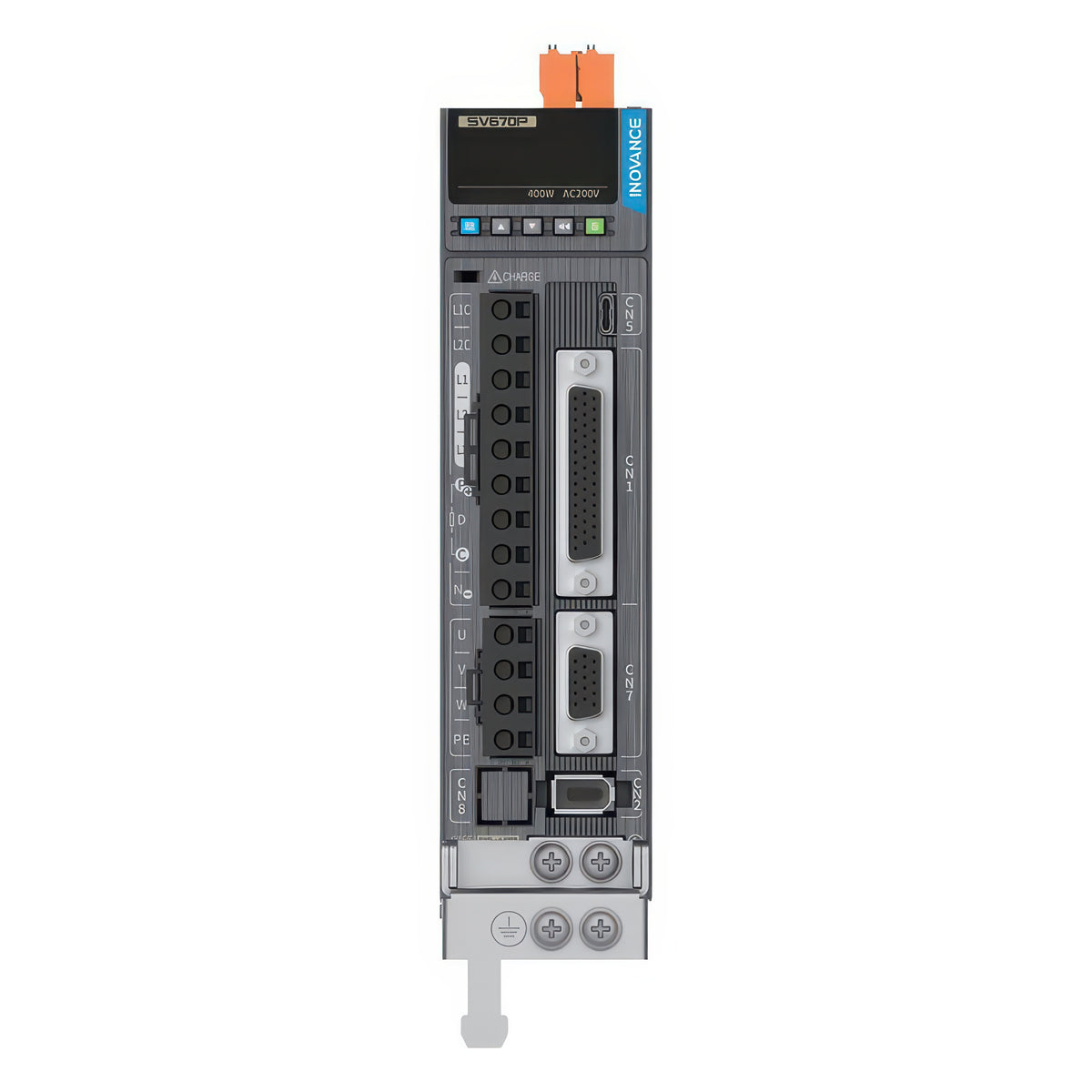

Inovance SV670P Series Pulse-Train Servo Drive (International)

Inovance SV670P Series Pulse-Train Servo Drive (International)

The SV670P-INT is the international-standard version of the Inovance SV670 general-purpose AC servo drive with pulse-train and analog command input plus CANopen and CANlink communication.

Key features

  • It covers 200 V ratings from 1.6 to 27 A and 400 V ratings from 3.5 to 26 A in four frame sizes (A, C, D, E)
  • The speed loop bandwidth is raised to 3.2 kHz compared with the previous SV660 generation, and the drive works with MS1 servo motors with 23-bit multi-turn absolute encoders
  • Every rating is available as a standard model or as an -FS model with built-in STO (Safe Torque Off) to IEC 61508 SIL3
  • A dynamic brake, an independent air duct that keeps dust away from the control circuit, and fully-closed loop control with an external ABZ encoder are included

Specifications

Interface Pulse train / analog, CANopen and CANlink
Encoder 23-bit multi-turn absolute (MS1 A3)
Speed loop bandwidth 3.2 kHz
SV670PS1R6I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS1R6I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS2R8I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS2R8I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS5R5I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS5R5I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS7R6I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS7R6I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS012I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS012I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS018I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS018I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS022I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS022I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS027I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS027I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT3R5I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT3R5I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT5R4I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT5R4I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT8R4I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT8R4I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT012I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT012I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT017I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT017I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT021I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT021I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT026I-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT026I-FS-INT Interface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
Servo DrivesInovance
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance SV670P Series Pulse-Train Servo Drive (International)

Brand Inovance·Servo Drives

Available part numbers (30)

SV670PS1R6I-INT, SV670PS1R6I-FS-INT, SV670PS2R8I-INT, SV670PS2R8I-FS-INT, SV670PS5R5I-INT, SV670PS5R5I-FS-INT, SV670PS7R6I-INT, SV670PS7R6I-FS-INT, SV670PS012I-INT, SV670PS012I-FS-INT + 20 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV670PS1R6I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS1R6I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS2R8I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS2R8I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS5R5I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS5R5I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS7R6I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS7R6I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS012I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS012I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS018I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS018I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS022I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS022I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PS027I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PS027I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT3R5I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT3R5I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT5R4I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT5R4I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT8R4I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT8R4I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT012I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT012I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT017I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT017I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT021I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT021I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
SV670PT026I-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: standard model, no STO | Speed loop bandwidth: 3.2 kHz
SV670PT026I-FS-INTInterface: Pulse train / analog, CANopen and CANlink | Voltage class: 400 V | Main circuit power: 3-phase 380-480 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series) | Encoder: 23-bit multi-turn absolute (MS1 A3) | Safety: STO (Safe Torque Off) built in, IEC 61508 SIL3 | Speed loop bandwidth: 3.2 kHz
