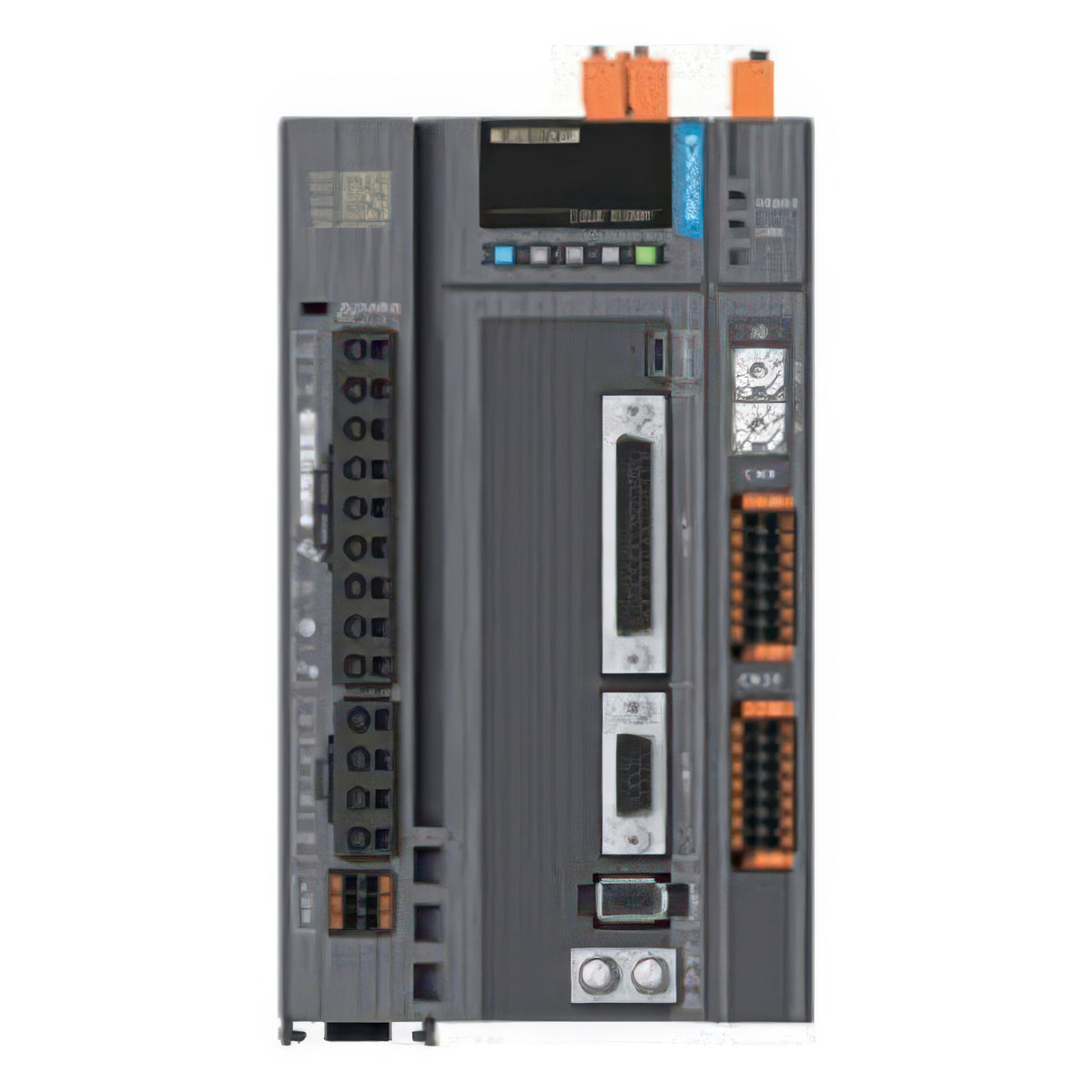

Inovance SV680N Series EtherCAT Servo Drive (International)

Inovance SV680N Series EtherCAT Servo Drive (International)

The SV680N is the flagship Inovance SV680 AC servo drive with EtherCAT communication (FSoE functional safety over EtherCAT supported).

Key features

  • A 625 kHz current loop and a speed loop bandwidth of up to 3.5 kHz give fast response, and it drives MS1 servo motors with 26-bit multi-turn absolute encoders up to 7000 rpm
  • Ratings run from 1.6 to 27 A on 200 V and 3.5 to 26 A on 400 V in frame sizes A, C, D and E
  • Each rating is offered as an I standard model (-GINT) and as an S functional-safety model with an extended safety module, in -GINT general or -PINT 24 VDC backup-power versions
  • Safety functions include STO, SS1, SS2, SLS and SBC, and resonance suppression settles low-frequency vibration within about 30 ms

Specifications

Interface EtherCAT
Speed loop bandwidth 3.5 kHz
SV680NS1R6I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS1R6S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS1R6S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS2R8I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS2R8S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS2R8S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS5R5I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS5R5S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS5R5S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS7R6I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS7R6S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS7R6S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS012I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS012S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS012S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS018I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS018S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS018S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS022I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS022S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS022S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NS027I-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NS027S-GINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NS027S-PINT Interface: EtherCAT | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT3R5I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT3R5S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT3R5S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT5R4I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT5R4S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT5R4S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT8R4I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT8R4S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT8R4S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT012I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT012S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT012S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT017I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT017S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT017S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT021I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT021S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT021S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680NT026I-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680NT026S-GINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680NT026S-PINT Interface: EtherCAT | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
Servo DrivesInovance
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance SV680N Series EtherCAT Servo Drive (International)

Brand Inovance·Servo Drives

Available part numbers (45)

SV680NS1R6I-GINT, SV680NS1R6S-GINT, SV680NS1R6S-PINT, SV680NS2R8I-GINT, SV680NS2R8S-GINT, SV680NS2R8S-PINT, SV680NS5R5I-GINT, SV680NS5R5S-GINT, SV680NS5R5S-PINT, SV680NS7R6I-GINT + 35 more — see full table ↓
