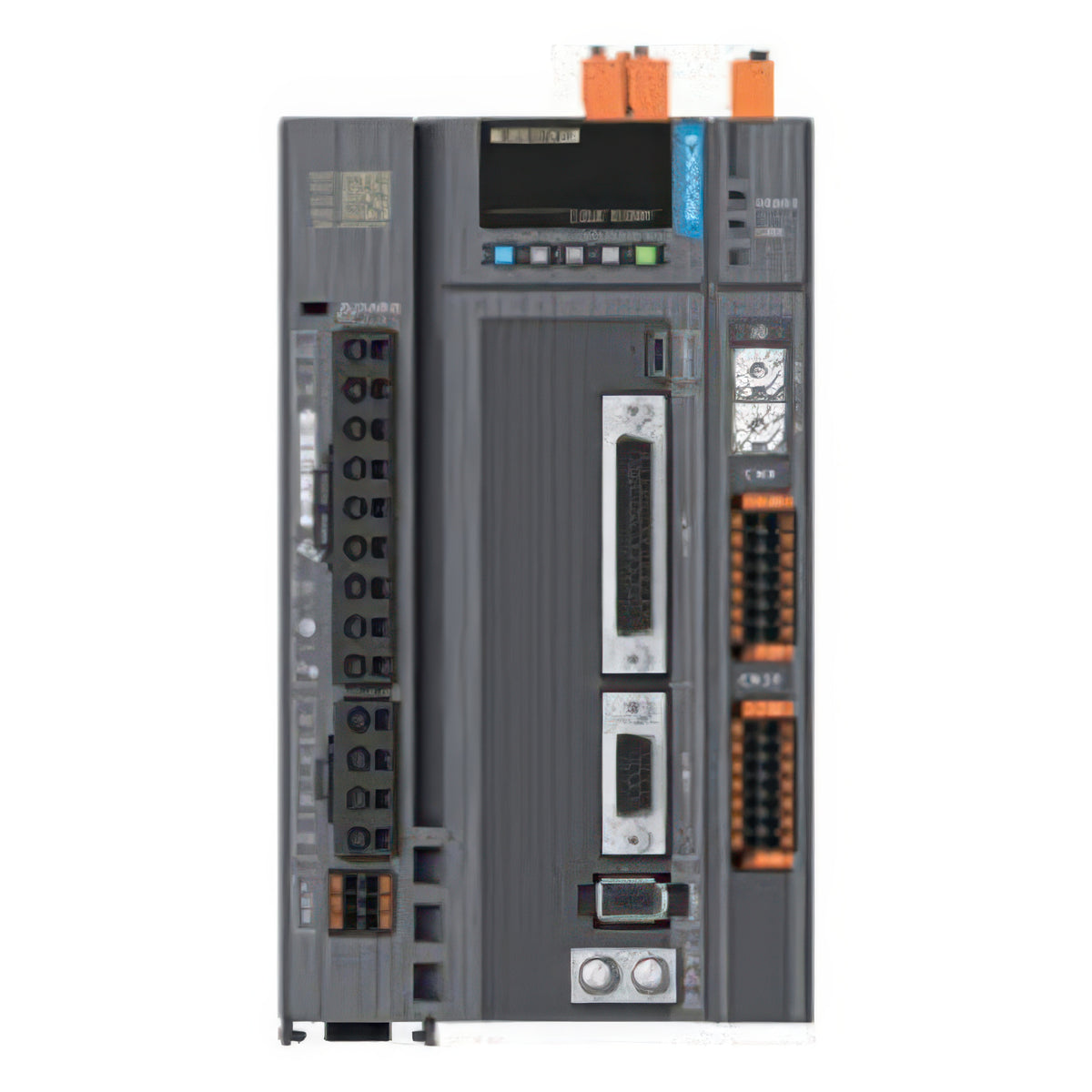

Inovance SV680P Series Pulse and CANopen Servo Drive (International)

Inovance SV680P Series Pulse and CANopen Servo Drive (International)

The SV680P is the flagship Inovance SV680 AC servo drive with pulse-train input and CANopen communication.

Key features

  • A 625 kHz current loop and a speed loop bandwidth of up to 3.5 kHz give fast response, and it drives MS1 servo motors with 26-bit multi-turn absolute encoders up to 7000 rpm
  • Ratings run from 1.6 to 27 A on 200 V and 3.5 to 26 A on 400 V in frame sizes A, C, D and E
  • Each rating is offered as an I standard model (-GINT) and as an S functional-safety model with an extended safety module, in -GINT general or -PINT 24 VDC backup-power versions
  • Safety functions include STO, SS1, SS2, SLS and SBC, and resonance suppression settles low-frequency vibration within about 30 ms

Specifications

Interface Pulse train + CANopen
Speed loop bandwidth 3.5 kHz
SV680PS1R6I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS1R6S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS1R6S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 1.6 Arms | Maximum output current: 5.8 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 50-200 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS2R8I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS2R8S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS2R8S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 2.8 Arms | Maximum output current: 10.1 Arms | Frame: Size A (45.5 x 170 x 150 mm, 0.96 kg) | Applicable motor output: 400 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS5R5I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS5R5S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS5R5S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 5.5 Arms | Maximum output current: 16.9 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 550-750 W (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS7R6I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS7R6S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS7R6S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 7.6 Arms | Maximum output current: 23.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS012I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS012S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS012S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: single-phase or 3-phase 200-240 VAC | Continuous output current: 12.0 Arms | Maximum output current: 32.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS018I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS018S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS018S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 18.0 Arms | Maximum output current: 45.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 1.8-2.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS022I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS022S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS022S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 22.0 Arms | Maximum output current: 55.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 2.5-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PS027I-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PS027S-GINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PS027S-PINT Interface: Pulse train + CANopen | Voltage class: 200 V | Main circuit power: 3-phase 200-240 VAC | Continuous output current: 27.0 Arms | Maximum output current: 67.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-5.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT3R5I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT3R5S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT3R5S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 3.5 Arms | Maximum output current: 11.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 850 W-1 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT5R4I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT5R4S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT5R4S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 5.4 Arms | Maximum output current: 14.0 Arms | Frame: Size C (55 x 170 x 173 mm, 1.3 kg) | Applicable motor output: 1.3-1.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT8R4I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT8R4S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT8R4S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 8.4 Arms | Maximum output current: 20.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 1.8-2.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT012I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT012S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT012S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 12.0 Arms | Maximum output current: 30.0 Arms | Frame: Size D (80 x 170 x 183 mm, 1.8 kg) | Applicable motor output: 2.9-3.0 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT017I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT017S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT017S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 17.0 Arms | Maximum output current: 42.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 4.0-4.4 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT021I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT021S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT021S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 21.0 Arms | Maximum output current: 52.5 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 5.0-5.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
SV680PT026I-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: I standard | Version: GINT general (international)
SV680PT026S-GINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: GINT general (international)
SV680PT026S-PINT Interface: Pulse train + CANopen | Voltage class: 400 V | Main circuit power: 3-phase 380-440 VAC | Continuous output current: 26.0 Arms | Maximum output current: 65.0 Arms | Frame: Size E (90 x 250 x 230 mm, 3.6 kg) | Applicable motor output: 7.5 kW (MS1 series, 26-bit encoder) | Speed loop bandwidth: 3.5 kHz | Model: S functional safety (safety module with extended functions; for MS1 S6 safety encoder motors) | Version: PINT with 24 VDC backup control power input (international)
Servo DrivesInovance
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance SV680P Series Pulse and CANopen Servo Drive (International)

Brand Inovance·Servo Drives

Available part numbers (45)

SV680PS1R6I-GINT, SV680PS1R6S-GINT, SV680PS1R6S-PINT, SV680PS2R8I-GINT, SV680PS2R8S-GINT, SV680PS2R8S-PINT, SV680PS5R5I-GINT, SV680PS5R5S-GINT, SV680PS5R5S-PINT, SV680PS7R6I-GINT + 35 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
