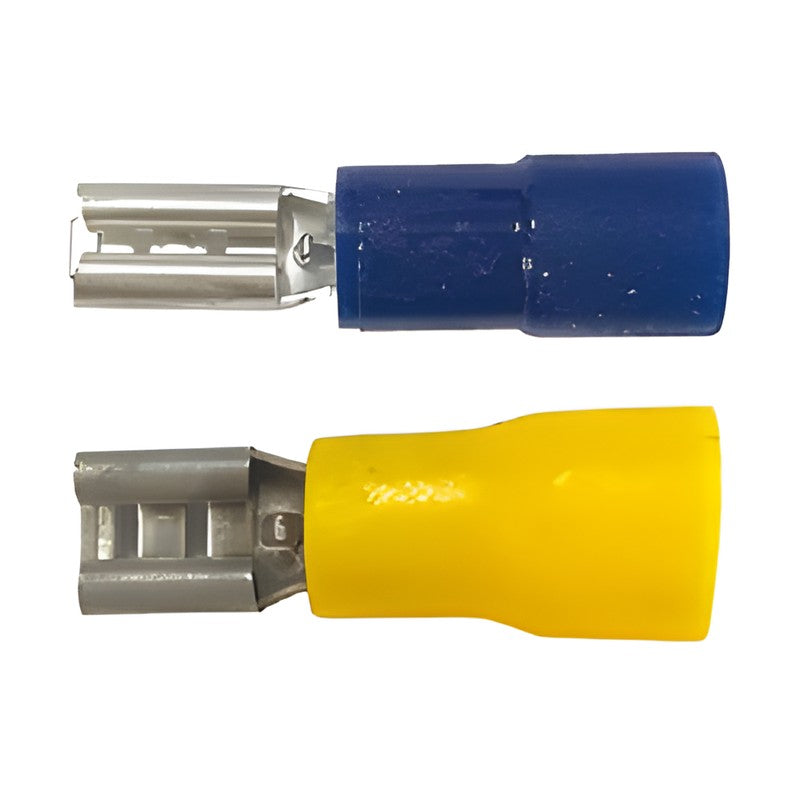

Jeoneo 36 Series Insulated Female Quick Disconnects, PVC (FEM)
Jeoneo 36 Series Insulated Female Quick Disconnects, PVC (FEM)
PVC-insulated tin-plated brass female quick-disconnect receptacles for 2.8, 4.8 and 6.3 mm tabs and 0.5 to 6 mm² wire.
Key features
- FEM funnel-entry PVC insulation
- Color coded red, blue, yellow by wire range
Specifications
| Material | Brass |
|---|---|
| Surface | Tin plated |
| Insulation | PVC (FEM) |
| Pack qty | 1,000 |
| 361285 | Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 3.2, D3 4.3, L 18, L1 10.0 | |
| 361485 | Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 5.0, D3 4.3, L 18, L1 10.0 | |
| 361638 | Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Red | Dimensions (mm): D1 1.8, D2 6.6, D3 4.3, L 20, L1 10.0 | |
| 365285 | Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Blue | Dimensions (mm): D1 2.3, D2 3.2, D3 4.8, L 18, L1 10.0 | |
| 365485 | Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Blue | Dimensions (mm): D1 2.3, D2 5.0, D3 4.8, L 18, L1 10.0 | |
| 365638 | Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Blue | Dimensions (mm): D1 2.3, D2 6.6, D3 4.8, L 20, L1 10.0 | |
| 363485 | Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Yellow | Dimensions (mm): D1 3.5, D2 5.0, D3 6.6, L 22.5, L1 14.0 | |
| 363638 | Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Dimensions (mm): D1 3.5, D2 6.6, D3 6.6, L 24.5, L1 14.0 |
Quick Disconnect TerminalsJeoneo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo 36 Series Insulated Female Quick Disconnects, PVC (FEM)
Available part numbers (8)
361285, 361485, 361638, 365285, 365485, 365638, 363485, 363638
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Quick Disconnect Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 361285 | Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 3.2, D3 4.3, L 18, L1 10.0 | ||
| 361485 | Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 5.0, D3 4.3, L 18, L1 10.0 | ||
| 361638 | Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Red | Dimensions (mm): D1 1.8, D2 6.6, D3 4.3, L 20, L1 10.0 | ||
| 365285 | Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Blue | Dimensions (mm): D1 2.3, D2 3.2, D3 4.8, L 18, L1 10.0 | ||
| 365485 | Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Blue | Dimensions (mm): D1 2.3, D2 5.0, D3 4.8, L 18, L1 10.0 | ||
| 365638 | Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Blue | Dimensions (mm): D1 2.3, D2 6.6, D3 4.8, L 20, L1 10.0 | ||
| 363485 | Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Yellow | Dimensions (mm): D1 3.5, D2 5.0, D3 6.6, L 22.5, L1 14.0 | ||
| 363638 | Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Dimensions (mm): D1 3.5, D2 6.6, D3 6.6, L 24.5, L1 14.0 |
