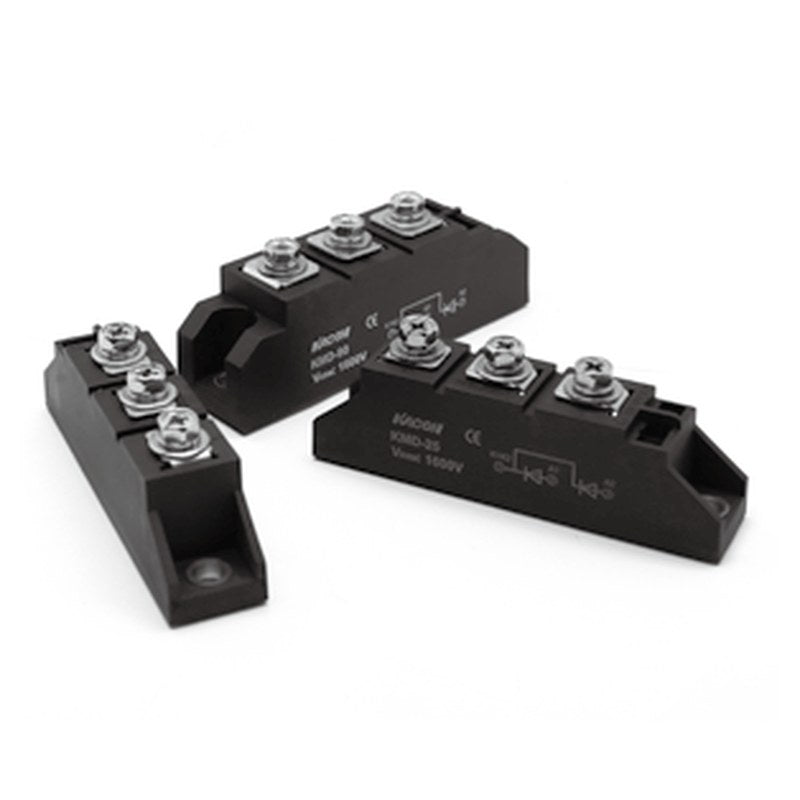

KACON KMD Series Solar Purpose Diode Modules (25-90A)

KACON KMD Series Solar Purpose Diode Modules (25-90A)

Isolated clamp-on diode modules for photovoltaic systems, compact and easy to install and replace.

Key features

  • Rated currents 25A, 55A, 70A and 90A
  • Repetitive reverse voltage 400-1,600V
  • Insulation voltage 2,500VAC
  • Max. junction temperature 150 C
  • Mounts on KHS-030-100 heatsink

Specifications

VRRM 400-1600V
Forward voltage VTM 1.5V
Max. reverse current 8 mA
Max. junction temperature 150 C
Insulation voltage 2,500VAC
Terminals M4
Source KACON KHS KTD KMD Series catalogue, p. 2
KMD-25 Rated current IF(AV): 25A | RMS current: 41A | Max. switching current: 80A | Outline: 101
KMD-55 Rated current IF(AV): 55A | RMS current: 86A | Max. switching current: 170A | Outline: 101
KMD-70 Rated current IF(AV): 70A | RMS current: 110A | Max. switching current: 270A | Outline: 201
KMD-90 Rated current IF(AV): 90A | RMS current: 141A | Max. switching current: 270A | Outline: 201
Solar DiodesKACON
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KMD Series Solar Purpose Diode Modules (25-90A)

Brand KACON·Solar Diodes

Available part numbers (4)

KMD-25, KMD-55, KMD-70, KMD-90

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KMD-25Rated current IF(AV): 25A | RMS current: 41A | Max. switching current: 80A | Outline: 101
KMD-55Rated current IF(AV): 55A | RMS current: 86A | Max. switching current: 170A | Outline: 101
KMD-70Rated current IF(AV): 70A | RMS current: 110A | Max. switching current: 270A | Outline: 201
KMD-90Rated current IF(AV): 90A | RMS current: 141A | Max. switching current: 270A | Outline: 201
