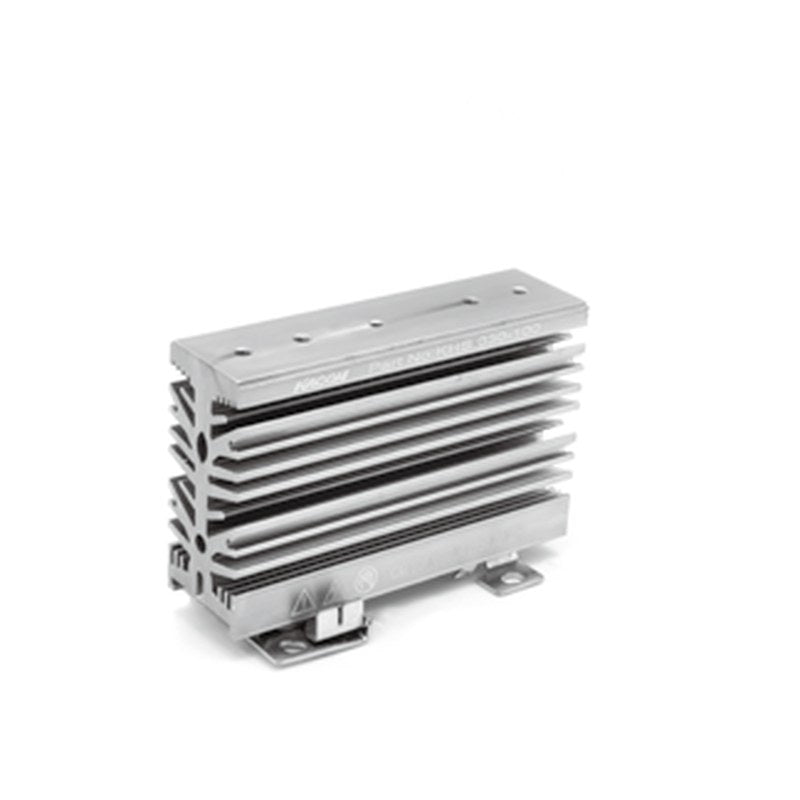

KACON KHS Series Solar Diode Heatsinks, Bus Bars and Fan

KACON KHS Series Solar Diode Heatsinks, Bus Bars and Fan

Anodized aluminium heatsinks, bus bars, DIN rail bracket and fan for mounting KTD and KMD solar diodes.

Key features

  • Heatsinks for 1, 2, 4 and 6 KTD diodes; 8-16 channels by combining KHS-108
  • KHS-030-100 heatsink for KMD diode modules
  • Plated electric brass bus bars for 1 to 16 channels
  • KHS-401 DIN rail bracket and KHS-F24 24VDC air blow fan
  • Corrosion-resistant anodized surface

Specifications

Brand KACON
Heatsink material Heat radiant aluminium alloy
Surface Anodized
Bus bar material Electric brass, plated
Applicable diodes KTD, KMD series
Fan supply 24VDC
Source KACON KHS KTD KMD Series catalogue, p. 3-4
KHS-106 Part: Heatsink for KTD | Channels: 1 channel | Material: Heat radiant AL alloy
KHS-107 Part: Heatsink for KTD | Channels: 2 channels | Material: Heat radiant AL alloy
KHS-108 Part: Heatsink for KTD | Channels: 4 channels | Material: Heat radiant AL alloy
KHS-109 Part: Heatsink for KTD | Channels: 6 channels | Material: Heat radiant AL alloy
KHS-030-100 Part: Heatsink for KMD | Channels: - | Material: Heat radiant AL alloy
KHS-401 Part: DIN rail bracket | Channels: - | Material: Fe alloy
KHS-F24 Part: Cooling fan | Channels: 24VDC | Material: -
KHS-201 Part: Bus bar (on demand) | Channels: 1 channel | Material: Electric brass, plated
KHS-202 Part: Bus bar | Channels: 2 channels | Material: Electric brass, plated
KHS-204 Part: Bus bar | Channels: 4 channels | Material: Electric brass, plated
KHS-206 Part: Bus bar | Channels: 6 channels | Material: Electric brass, plated
KHS-208 Part: Bus bar | Channels: 8 channels | Material: Electric brass, plated
KHS-212 Part: Bus bar | Channels: 12 channels | Material: Electric brass, plated
KHS-216 Part: Bus bar | Channels: 16 channels | Material: Electric brass, plated
Heat SinksKACON
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KHS Series Solar Diode Heatsinks, Bus Bars and Fan

Brand KACON·Heat Sinks

Available part numbers (14)

KHS-106, KHS-107, KHS-108, KHS-109, KHS-030-100, KHS-401, KHS-F24, KHS-201, KHS-202, KHS-204 + 4 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KHS-106Part: Heatsink for KTD | Channels: 1 channel | Material: Heat radiant AL alloy
KHS-107Part: Heatsink for KTD | Channels: 2 channels | Material: Heat radiant AL alloy
KHS-108Part: Heatsink for KTD | Channels: 4 channels | Material: Heat radiant AL alloy
KHS-109Part: Heatsink for KTD | Channels: 6 channels | Material: Heat radiant AL alloy
KHS-030-100Part: Heatsink for KMD | Channels: - | Material: Heat radiant AL alloy
KHS-401Part: DIN rail bracket | Channels: - | Material: Fe alloy
KHS-F24Part: Cooling fan | Channels: 24VDC | Material: -
KHS-201Part: Bus bar (on demand) | Channels: 1 channel | Material: Electric brass, plated
KHS-202Part: Bus bar | Channels: 2 channels | Material: Electric brass, plated
KHS-204Part: Bus bar | Channels: 4 channels | Material: Electric brass, plated
KHS-206Part: Bus bar | Channels: 6 channels | Material: Electric brass, plated
KHS-208Part: Bus bar | Channels: 8 channels | Material: Electric brass, plated
KHS-212Part: Bus bar | Channels: 12 channels | Material: Electric brass, plated
KHS-216Part: Bus bar | Channels: 16 channels | Material: Electric brass, plated
