• Jeoneo 37 Series Insulated Bullet Connectors, Polycarbonate (FEM)
1 1

Jeoneo 37 Series Insulated Bullet Connectors, Polycarbonate (FEM)

Jeoneo 37 Series Insulated Bullet Connectors, Polycarbonate (FEM)

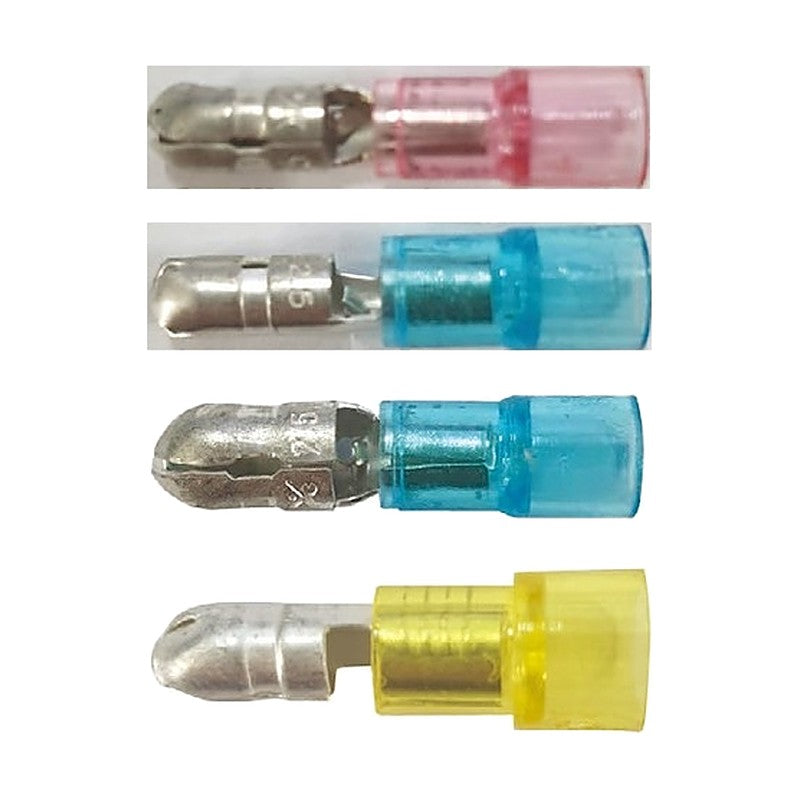

Polycarbonate-insulated tin-plated brass male bullet connectors (4.0 and 5.0 mm) for 0.5 to 6 mm² wire.

Key features

  • FEM funnel barrel easy-entry polycarbonate insulation

Specifications

Material Brass
Surface Tin plated
Insulation Polycarbonate (FEM)
Jeoneo 37 Series Insulated Bullet Connectors, Polycarbonate (FEM)
371004 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 4.0, D3 4.3, H 5.5, L 20.7, L1 10.0, L2 8.5
375004 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 4.0, D3 4.8, H 5.5, L 20.5, L1 10.0, L2 8.5
375005 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 5.0, D3 4.8, H 5.5, L 21.0, L1 10.0, L2 8.5
373005 Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D2 5.0, D3 6.6, H 6.5, L 25.0, L1 13.5, L2 8.5
Quick Disconnect TerminalsJeoneo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo 37 Series Insulated Bullet Connectors, Polycarbonate (FEM)

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (4)

371004, 375004, 375005, 373005

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo 37 Series Insulated Bullet Connectors, Polycarbonate (FEM)
0 selected
RFQ List (0)
Product codeSpec
371004Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 4.0, D3 4.3, H 5.5, L 20.7, L1 10.0, L2 8.5
375004Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 4.0, D3 4.8, H 5.5, L 20.5, L1 10.0, L2 8.5
375005Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 5.0, D3 4.8, H 5.5, L 21.0, L1 10.0, L2 8.5
373005Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D2 5.0, D3 6.6, H 6.5, L 25.0, L1 13.5, L2 8.5
