• Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 60-185 mm²
1 1

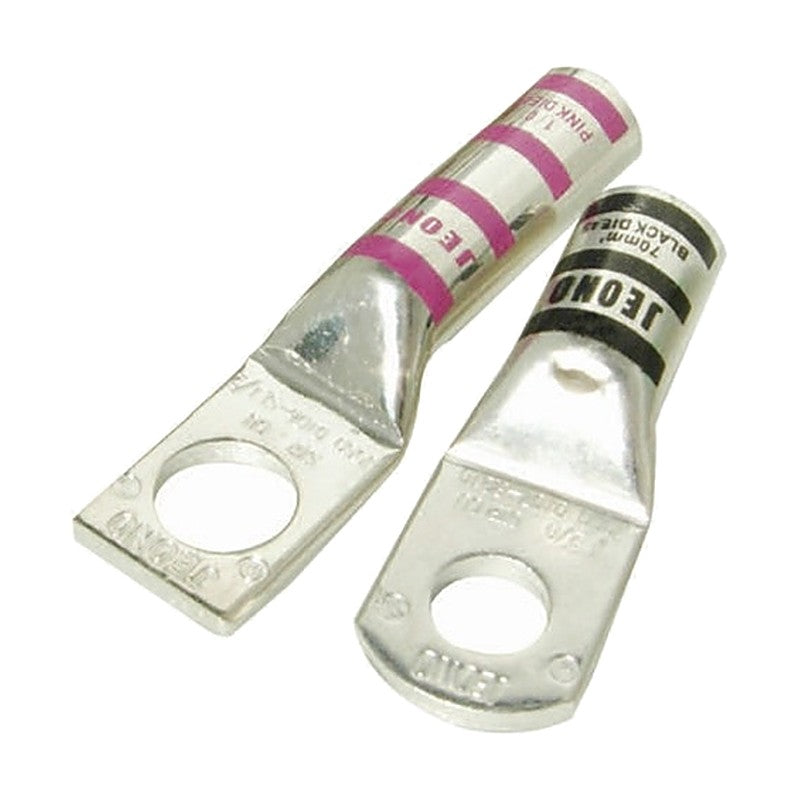

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 60-185 mm²

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 60-185 mm²

One-hole copper lugs (Type FCO) with inspection hole for flexible (class 5) conductors, standard (S) or long (L) barrel, round tongue, 60-185 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 5 flexible conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5
Holes 1
Tongue form Round
JFCO 0107-RS08 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 21, d 11.3, D 14.6, E 21.5, L 54
JFCO 0107-RL08 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, E 35, L 67
JFCO 0107-RS10 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 21, d 11.3, D 14.6, E 21.5, L 54
JFCO 0107-RL10 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, E 35, L 67
JFCO 0107-RS12 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 21, d 11.3, D 14.6, E 21.5, L 54
JFCO 0107-RL12 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, E 35, L 67
JFCO 0107-RS16 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 25, d 11.3, D 14.6, E 21.5, L 57
JFCO 0107-RL16 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 25, d 11.3, D 14.6, E 35, L 70
JFCO 0108-RS08 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL08 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0108-RS10 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL10 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0108-RS12 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL12 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0108-RS16 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL16 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0110-RS08 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL08 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0110-RS10 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL10 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0110-RS12 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL12 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0110-RS16 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL16 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0111-RS08 Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL08 Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0111-RS10 Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL10 Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0111-RS12 Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL12 Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0111-RS16 Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL16 Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0112-RS10 Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 78
JFCO 0112-RL10 Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 93
JFCO 0112-RS12 Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 78
JFCO 0112-RL12 Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 93
JFCO 0112-RS16 Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 78
JFCO 0112-RL16 Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 93
JFCO 0112-RS20 Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 82
JFCO 0112-RL20 Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 97
JFCO 0113-RS10 Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 90
JFCO 0113-RL10 Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 100
JFCO 0113-RS12 Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 90
JFCO 0113-RL12 Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 100
JFCO 0113-RS16 Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 90
JFCO 0113-RL16 Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 100
JFCO 0113-RS20 Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 92
JFCO 0113-RL20 Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 102
Cable LugsJeoneo
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 60-185 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (48)

JFCO 0107-RS08, JFCO 0107-RL08, JFCO 0107-RS10, JFCO 0107-RL10, JFCO 0107-RS12, JFCO 0107-RL12, JFCO 0107-RS16, JFCO 0107-RL16, JFCO 0108-RS08, JFCO 0108-RL08 + 38 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JFCO 0107-RS08Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 21, d 11.3, D 14.6, E 21.5, L 54
JFCO 0107-RL08Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, E 35, L 67
JFCO 0107-RS10Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 21, d 11.3, D 14.6, E 21.5, L 54
JFCO 0107-RL10Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, E 35, L 67
JFCO 0107-RS12Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 21, d 11.3, D 14.6, E 21.5, L 54
JFCO 0107-RL12Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, E 35, L 67
JFCO 0107-RS16Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 80 | Dimensions (mm): W 25, d 11.3, D 14.6, E 21.5, L 57
JFCO 0107-RL16Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 25, d 11.3, D 14.6, E 35, L 70
JFCO 0108-RS08Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL08Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0108-RS10Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL10Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0108-RS12Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL12Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0108-RS16Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 50 | Dimensions (mm): W 25, d 13.5, D 17, E 24, L 64
JFCO 0108-RL16Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange48, JHCD-3/0 | Pack qty: 40 | Dimensions (mm): W 25, d 13.5, D 17, E 40, L 80
JFCO 0110-RS08Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL08Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0110-RS10Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL10Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0110-RS12Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL12Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0110-RS16Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 30, L 70
JFCO 0110-RL16Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 40 | Dimensions (mm): W 28, d 15, D 19, E 49, L 89.5
JFCO 0111-RS08Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL08Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0111-RS10Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL10Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0111-RS12Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL12Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0111-RS16Barrel form: Standard | Wire range: 250 Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 30 | Dimensions (mm): W 32, d 17, D 21, E 30, L 73
JFCO 0111-RL16Barrel form: Long | Wire range: 250 Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, E 49, L 92.5
JFCO 0112-RS10Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 78
JFCO 0112-RL10Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 93
JFCO 0112-RS12Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 78
JFCO 0112-RL12Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 93
JFCO 0112-RS16Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 78
JFCO 0112-RL16Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 93
JFCO 0112-RS20Barrel form: Standard | Wire range: 300 Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 25 | Dimensions (mm): W 35, d 19, D 23.5, E 35, L 82
JFCO 0112-RL20Barrel form: Long | Wire range: 300 Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 20 | Dimensions (mm): W 35, d 19, D 23.5, E 50, L 97
JFCO 0113-RS10Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 90
JFCO 0113-RL10Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 100
JFCO 0113-RS12Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 90
JFCO 0113-RL12Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 100
JFCO 0113-RS16Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 90
JFCO 0113-RL16Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 100
JFCO 0113-RS20Barrel form: Standard | Wire range: 350 Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 15 | Dimensions (mm): W 37.5, d 21, D 26, E 39, L 92
JFCO 0113-RL20Barrel form: Long | Wire range: 350 Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, E 50, L 102
