• Jeoneo JFCT Flex Conductor Lugs, Two Hole, Round Tongue, 10-50 mm²
1 1

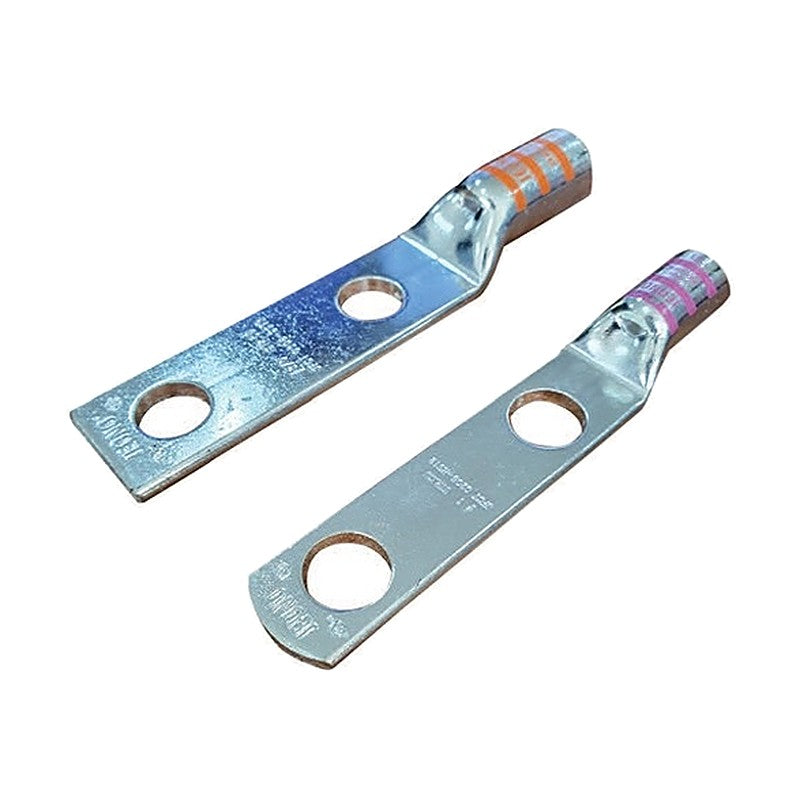

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Round Tongue, 10-50 mm²

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Round Tongue, 10-50 mm²

Two-hole copper lugs (Type FCT) with inspection hole for flexible (class 5) conductors, standard (S) or long (L) barrel, round tongue, 10-50 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 5 flexible conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5
Holes 2
Tongue form Round
JFCT 0202-RS05 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 15, L 52
JFCT 0202-RL05 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 30, L 67
JFCT 0202-RS06 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 15, L 52
JFCT 0202-RL06 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 30, L 67
JFCT 0202-RS08 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 15, L 67
JFCT 0202-RL08 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 30, L 82
JFCT 0202-RS10 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 15, L 67
JFCT 0202-RL10 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 30, L 82
JFCT 0202-RS12 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 18, d 5.4, D 7.4, A 22, E 15, L 70
JFCT 0202-RL12 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 18, d 5.4, D 7.4, A 22, E 30, L 85
JFCT 0203-RS05 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 17, L 54
JFCT 0203-RL05 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 33, L 70
JFCT 0203-RS06 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 17, L 54
JFCT 0203-RL06 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 33, L 70
JFCT 0203-RS08 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 16, E 17, L 70
JFCT 0203-RL08 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 16, E 33, L 86
JFCT 0203-RS10 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 19, E 17, L 70
JFCT 0203-RL10 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 19, E 33, L 86
JFCT 0203-RS12 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 100 | Dimensions (mm): W 18, d 6.7, D 9.0, A 22, E 17, L 73
JFCT 0203-RL12 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, A 22, E 33, L 89
JFCT 0204-RS05 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 71.5
JFCT 0204-RL05 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 75
JFCT 0204-RS06 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 71.5
JFCT 0204-RL06 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 75
JFCT 0204-RS08 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 72
JFCT 0204-RL08 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 85
JFCT 0204-RS10 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 72
JFCT 0204-RL10 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 85
JFCT 0204-RS12 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, A 22, E 19.5, L 75
JFCT 0204-RL12 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, A 22, E 33, L 88
JFCT 0205-RS05 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL05 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS06 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL06 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS08 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL08 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS10 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL10 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS12 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL12 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS16 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL16 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0206-RS05 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL05 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS06 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL06 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS08 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL08 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS10 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL10 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS12 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL12 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS16 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL16 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 37, L 117
Cable LugsJeoneo
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Round Tongue, 10-50 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (54)

JFCT 0202-RS05, JFCT 0202-RL05, JFCT 0202-RS06, JFCT 0202-RL06, JFCT 0202-RS08, JFCT 0202-RL08, JFCT 0202-RS10, JFCT 0202-RL10, JFCT 0202-RS12, JFCT 0202-RL12 + 44 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JFCT 0202-RS05Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 15, L 52
JFCT 0202-RL05Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 30, L 67
JFCT 0202-RS06Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 15, L 52
JFCT 0202-RL06Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 30, L 67
JFCT 0202-RS08Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 15, L 67
JFCT 0202-RL08Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 30, L 82
JFCT 0202-RS10Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 15, L 67
JFCT 0202-RL10Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 30, L 82
JFCT 0202-RS12Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 18, d 5.4, D 7.4, A 22, E 15, L 70
JFCT 0202-RL12Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 150 | Dimensions (mm): W 18, d 5.4, D 7.4, A 22, E 30, L 85
JFCT 0203-RS05Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 17, L 54
JFCT 0203-RL05Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 33, L 70
JFCT 0203-RS06Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 17, L 54
JFCT 0203-RL06Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 33, L 70
JFCT 0203-RS08Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 16, E 17, L 70
JFCT 0203-RL08Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 16, E 33, L 86
JFCT 0203-RS10Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 19, E 17, L 70
JFCT 0203-RL10Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 19, E 33, L 86
JFCT 0203-RS12Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 100 | Dimensions (mm): W 18, d 6.7, D 9.0, A 22, E 17, L 73
JFCT 0203-RL12Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, A 22, E 33, L 89
JFCT 0204-RS05Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 71.5
JFCT 0204-RL05Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 75
JFCT 0204-RS06Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 71.5
JFCT 0204-RL06Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 75
JFCT 0204-RS08Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 72
JFCT 0204-RL08Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 85
JFCT 0204-RS10Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 72
JFCT 0204-RL10Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 85
JFCT 0204-RS12Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, A 22, E 19.5, L 75
JFCT 0204-RL12Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, A 22, E 33, L 88
JFCT 0205-RS05Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL05Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS06Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL06Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS08Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL08Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS10Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL10Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS12Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL12Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0205-RS16Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, A 44.5, E 19.5, L 97
JFCT 0205-RL16Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, A 44.5, E 35, L 112
JFCT 0206-RS05Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL05Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS06Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL06Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS08Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL08Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS10Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL10Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS12Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL12Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JFCT 0206-RS16Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 20, L 100
JFCT 0206-RL16Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 37, L 117
