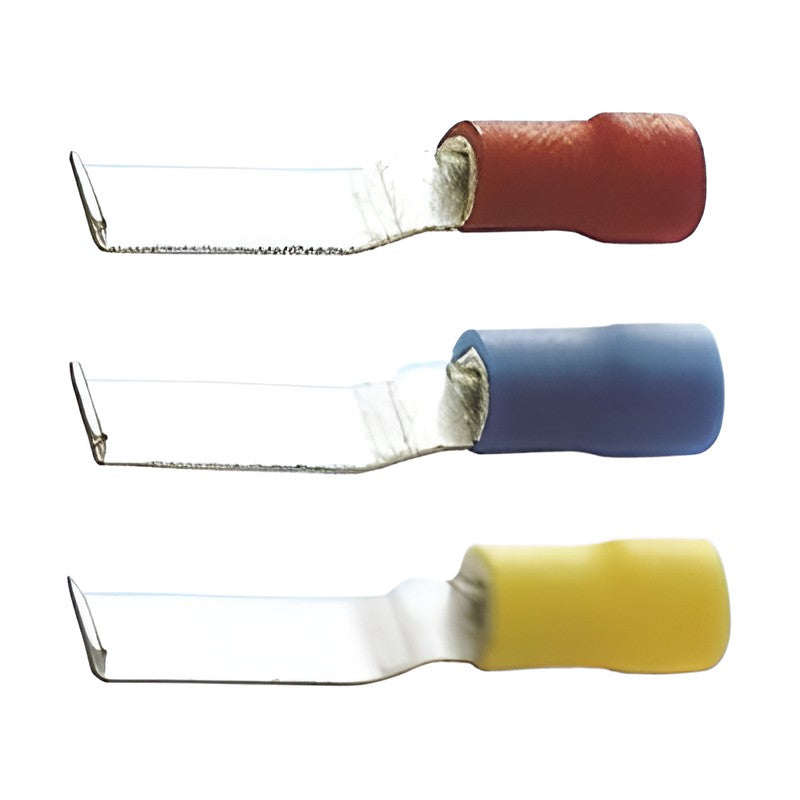

Jeoneo JHBP PVC-Insulated Hook Blade Terminals

Jeoneo JHBP PVC-Insulated Hook Blade Terminals

PVC-insulated copper hook blade terminals for 0.5 to 6 mm² wire; W suffix = brazed seam.

Key features

  • PVC insulation rated 105 °C, UL94 V-0

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation PVC
Insulation temperature rating 105 °C
Flammability UL94 V-0
Color RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY
Pack qty 1,000
Jeoneo JHBP PVC-Insulated Hook Blade Terminals
JHBP 1530 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 1546 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 2530 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 2546 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 630 Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14, L 30.0, D 8.3, t 1.0
JHBP 646 Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14, L 30.0, D 8.3, t 1.0
JHBP 1530W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 1546W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 2530W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 2546W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 630W Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14, L 30.0, D 8.3, t 1.0
JHBP 646W Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14, L 30.0, D 8.3, t 1.0
Blade TerminalsJeoneo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JHBP PVC-Insulated Hook Blade Terminals

Brand Jeoneo·Blade Terminals

Available part numbers (12)

JHBP 1530, JHBP 1546, JHBP 2530, JHBP 2546, JHBP 630, JHBP 646, JHBP 1530W, JHBP 1546W, JHBP 2530W, JHBP 2546W + 2 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JHBP PVC-Insulated Hook Blade Terminals
0 selected
RFQ List (0)
Product codeSpec
JHBP 1530Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 1546Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 2530Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 2546Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 630Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14, L 30.0, D 8.3, t 1.0
JHBP 646Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14, L 30.0, D 8.3, t 1.0
JHBP 1530WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 1546WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.1, t 0.7
JHBP 2530WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 2546WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 10.0, L 26.5, D 6.6, t 0.8
JHBP 630WBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14, L 30.0, D 8.3, t 1.0
JHBP 646WBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14, L 30.0, D 8.3, t 1.0
