Jeoneo JKS Nuclear-Grade PVDF-Insulated Butt Splices

Jeoneo JKS Nuclear-Grade PVDF-Insulated Butt Splices

PVDF (Kynar) insulated butt splices (Type JKS) for nuclear power plant wiring from 1.5 to 6 mm².

Key features

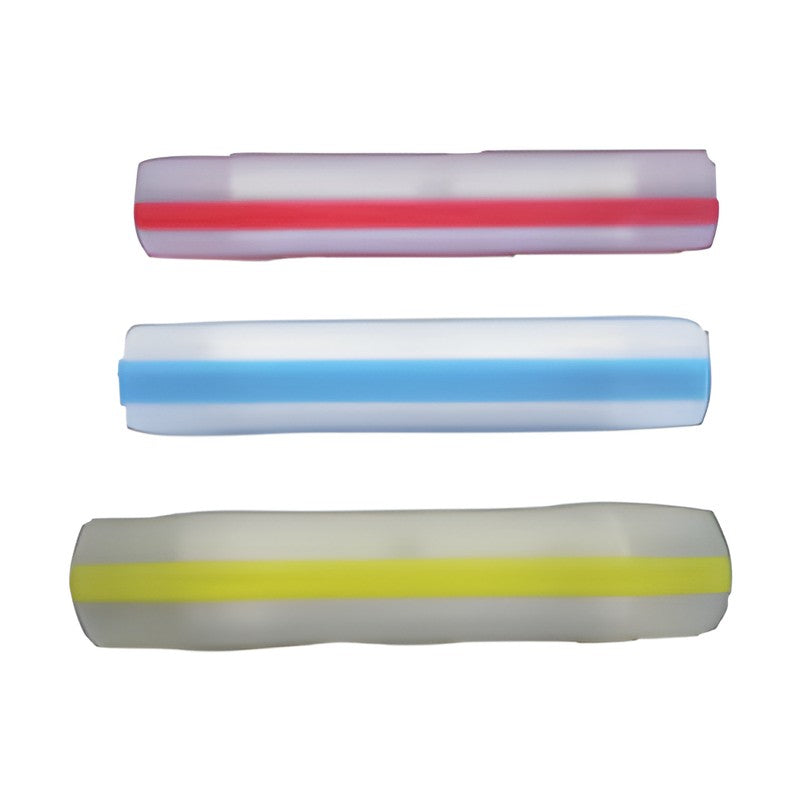

  • Natural PVDF housing with color stripe identifying the wire range
  • Insulation temperature rating 150 °C
  • Internal wire stop prevents over-insertion of the conductor

Specifications

Material Electrolytic copper
Insulation housing PVDF (Kynar)
Insulation temperature rating 150 °C
Jeoneo JKS Nuclear-Grade PVDF-Insulated Butt Splices
JKS-16 Wire range: 20~16 AWG / 1.5 mm² | Crimping tool/die: JHCT-8642, JD-16 | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): D 5.2, d2 4.3, d1 1.8, L2 22.0, L 30.0
JKS-14 Wire range: 16~14 AWG / 2.5 mm² | Crimping tool/die: JHCT-8642, JD-14 | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): D 6.0, d2 4.6, d1 2.4, L2 22.0, L 30.0
JKS-10 Wire range: 12~10 AWG / 4, 6 mm² | Crimping tool/die: JHCT-8642, JD-10 | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): D 8.0, d2 6.4, d1 3.6, L2 23.0, L 31.0
Butt SplicesJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JKS Nuclear-Grade PVDF-Insulated Butt Splices

Brand Jeoneo·Butt Splices

Available part numbers (3)

JKS-16, JKS-14, JKS-10

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JKS Nuclear-Grade PVDF-Insulated Butt Splices
0 selected
RFQ List (0)
Product codeSpec
JKS-16Wire range: 20~16 AWG / 1.5 mm² | Crimping tool/die: JHCT-8642, JD-16 | Color stripe: RED | Pack qty: 1,000 | Dimensions (mm): D 5.2, d2 4.3, d1 1.8, L2 22.0, L 30.0
JKS-14Wire range: 16~14 AWG / 2.5 mm² | Crimping tool/die: JHCT-8642, JD-14 | Color stripe: BLUE | Pack qty: 1,000 | Dimensions (mm): D 6.0, d2 4.6, d1 2.4, L2 22.0, L 30.0
JKS-10Wire range: 12~10 AWG / 4, 6 mm² | Crimping tool/die: JHCT-8642, JD-10 | Color stripe: YELLOW | Pack qty: 500 | Dimensions (mm): D 8.0, d2 6.4, d1 3.6, L2 23.0, L 31.0
