• Jeoneo JOCO Code Conductor Lugs, One Hole, Square Tongue, 10-50 mm²
1 1

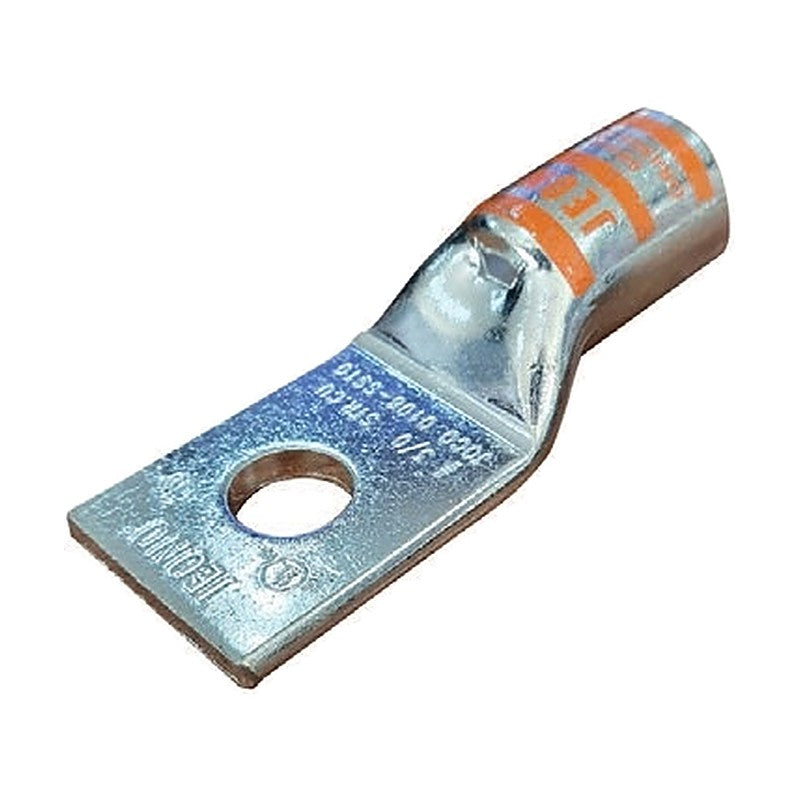

Jeoneo JOCO Code Conductor Lugs, One Hole, Square Tongue, 10-50 mm²

Jeoneo JOCO Code Conductor Lugs, One Hole, Square Tongue, 10-50 mm²

One-hole copper lugs (Type CO) with inspection hole for code (class 2) conductors, standard (S) or long (L) barrel, square tongue, 10-50 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 2 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 1
Tongue form Square
JOCO 0101-SS05 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21, JOCD-8 | Pack qty: 500 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 15, L 33
JOCO 0101-SL05 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 21, L 39
JOCO 0101-SS06 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21, JOCD-8 | Pack qty: 500 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 15, L 33
JOCO 0101-SL06 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 21, L 39
JOCO 0101-SS08 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 15, L 39
JOCO 0101-SL08 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 21, L 45
JOCO 0101-SS10 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 15, L 39
JOCO 0101-SL10 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 21, L 45
JOCO 0101-SS12 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 18, d 4.7, D 6.7, E 15, L 43
JOCO 0101-SL12 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Red 21, JOCD-8 | Pack qty: 250 | Dimensions (mm): W 18, d 4.7, D 6.7, E 21, L 49
JOCO 0102-SS05 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JOCO 0102-SL05 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JOCO 0102-SS06 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JOCO 0102-SL06 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JOCO 0102-SS08 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JOCO 0102-SL08 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JOCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JOCO 0102-SS10 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JOCO 0102-SL10 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JOCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JOCO 0102-SS12 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 18, d 5.4, D 7.4, E 15, L 43
JOCO 0102-SL12 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JOCD-6 | Pack qty: 200 | Dimensions (mm): W 18, d 5.4, D 7.4, E 21, L 49
JOCO 0103-SS05 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JOCO 0103-SL05 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JOCO 0103-SS06 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JOCO 0103-SL06 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JOCO 0103-SS08 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JOCO 0103-SL08 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JOCO 0103-SS10 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 17, L 44
JOCO 0103-SL10 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 23, L 50
JOCO 0103-SS12 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 18, d 6.7, D 9.0, E 17, L 44
JOCO 0103-SL12 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, E 23, L 50
JOCO 0104-SS05 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL05 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS06 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL06 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS08 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL08 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS10 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL10 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS12 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 18, d 8.1, D 10.6, E 19.5, L 50
JOCO 0104-SL12 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, E 26, L 56
JOCO 0105-SS05 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL05 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS06 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL06 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS08 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL08 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS10 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL10 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS12 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL12 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS16 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 23, d 9.5, D 12, E 20, L 56
JOCO 0105-SL16 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, E 35, L 71
Cable LugsJeoneo
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOCO Code Conductor Lugs, One Hole, Square Tongue, 10-50 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (52)

JOCO 0101-SS05, JOCO 0101-SL05, JOCO 0101-SS06, JOCO 0101-SL06, JOCO 0101-SS08, JOCO 0101-SL08, JOCO 0101-SS10, JOCO 0101-SL10, JOCO 0101-SS12, JOCO 0101-SL12 + 42 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JOCO 0101-SS05Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21, JOCD-8 | Pack qty: 500 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 15, L 33
JOCO 0101-SL05Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 21, L 39
JOCO 0101-SS06Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21, JOCD-8 | Pack qty: 500 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 15, L 33
JOCO 0101-SL06Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 9.5, d 4.7, D 6.7, E 21, L 39
JOCO 0101-SS08Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 15, L 39
JOCO 0101-SL08Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 21, L 45
JOCO 0101-SS10Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 15, L 39
JOCO 0101-SL10Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, E 21, L 45
JOCO 0101-SS12Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 18, d 4.7, D 6.7, E 15, L 43
JOCO 0101-SL12Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Red 21, JOCD-8 | Pack qty: 250 | Dimensions (mm): W 18, d 4.7, D 6.7, E 21, L 49
JOCO 0102-SS05Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JOCO 0102-SL05Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JOCO 0102-SS06Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JOCO 0102-SL06Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JOCO 0102-SS08Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JOCO 0102-SL08Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JOCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JOCO 0102-SS10Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JOCO 0102-SL10Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JOCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JOCO 0102-SS12Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JOCD-6 | Pack qty: 300 | Dimensions (mm): W 18, d 5.4, D 7.4, E 15, L 43
JOCO 0102-SL12Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JOCD-6 | Pack qty: 200 | Dimensions (mm): W 18, d 5.4, D 7.4, E 21, L 49
JOCO 0103-SS05Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JOCO 0103-SL05Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JOCO 0103-SS06Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JOCO 0103-SL06Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JOCO 0103-SS08Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JOCO 0103-SL08Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JOCO 0103-SS10Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 17, L 44
JOCO 0103-SL10Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 23, L 50
JOCO 0103-SS12Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 18, d 6.7, D 9.0, E 17, L 44
JOCO 0103-SL12Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, E 23, L 50
JOCO 0104-SS05Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL05Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS06Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL06Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS08Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL08Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS10Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JOCO 0104-SL10Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JOCO 0104-SS12Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Brown 33, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 18, d 8.1, D 10.6, E 19.5, L 50
JOCO 0104-SL12Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, E 26, L 56
JOCO 0105-SS05Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL05Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS06Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL06Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS08Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL08Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS10Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL10Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS12Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JOCO 0105-SL12Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JOCO 0105-SS16Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Green 37, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 23, d 9.5, D 12, E 20, L 56
JOCO 0105-SL16Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, E 35, L 71
