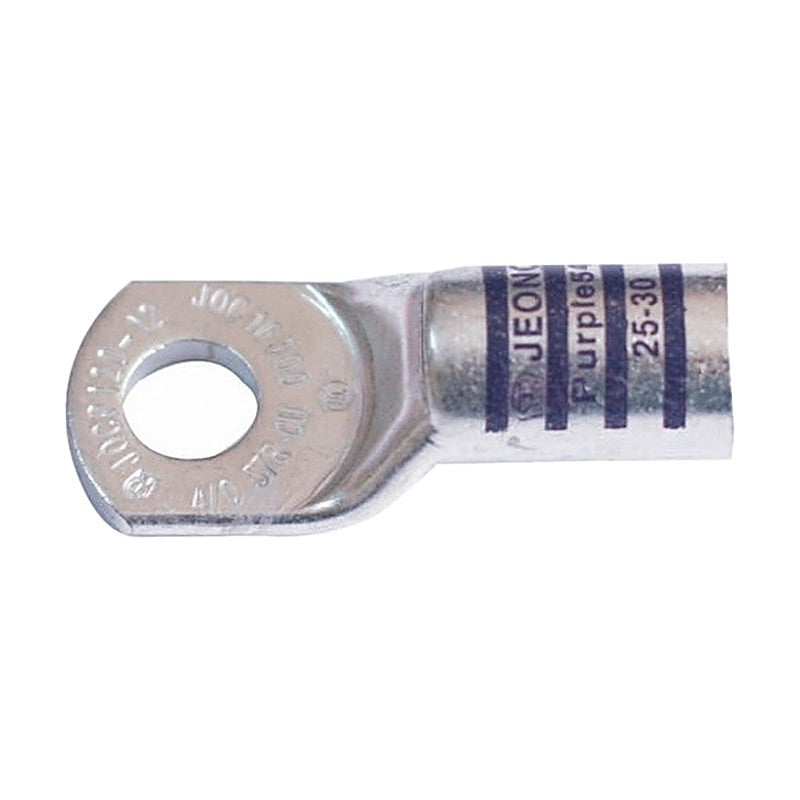

Jeoneo JOCP Tubular Cable Lugs, One Hole, With Inspection Hole

Jeoneo JOCP Tubular Cable Lugs, One Hole, With Inspection Hole

One-hole round-compressed tubular copper cable lugs (Type CP) with inspection hole for 1.5 to 1000 mm² class 2 conductors.

Key features

  • Inspection hole visually confirms full conductor insertion
  • Color coded to show proper die number and color (10-1000 mm²)
  • For IEC 60228 class 2 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 1
Jeoneo JOCP Tubular Cable Lugs, One Hole, With Inspection Hole
JOCP 1.5-3 Wire range: 20~16 AWG / 1.5 mm² | Stud size: M3 | Pack qty: 1,000 | Dimensions (mm): W 6.5, E 7, L 16, d 1.8, D 3.0
JOCP 1.5-4 Wire range: 20~16 AWG / 1.5 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 6.5, E 7, L 17, d 1.8, D 3.0
JOCP 2.5-3 Wire range: 16~14 AWG / 2.5 mm² | Stud size: M3 | Pack qty: 1,000 | Dimensions (mm): W 7.5, E 7, L 17, d 2.3, D 3.5
JOCP 2.5-4 Wire range: 16~14 AWG / 2.5 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 7.5, E 7, L 18, d 2.3, D 3.5
JOCP 4-4 Wire range: 14~12 AWG / 4 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 8.5, E 9, L 21, d 3.0, D 4.5
JOCP 4-5 Wire range: 14~12 AWG / 4 mm² | Stud size: M5 | Pack qty: 1,000 | Dimensions (mm): W 9.0, E 9, L 22, d 3.0, D 4.5
JOCP 6-4 Wire range: 12~10 AWG / 6 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 9.5, E 9, L 22, d 4.0, D 5.5
JOCP 6-5 Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Pack qty: 1,000 | Dimensions (mm): W 9.5, E 9, L 22, d 4.0, D 5.5
JOCP 6-6 Wire range: 12~10 AWG / 6 mm² | Stud size: M6 | Pack qty: 1,000 | Dimensions (mm): W 10, E 9, L 23, d 4.0, D 5.5
JOCP 10-5 Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): W 11.5, E 13, L 29, d 4.7, D 6.7
JOCP 10-6 Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): W 11.5, E 13, L 29, d 4.7, D 6.7
JOCP 16-5 Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 12, E 13, L 29, d 5.4, D 7.4
JOCP 16-6 Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 12, E 13, L 29, d 5.4, D 7.4
JOCP 16-8 Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 14, E 13, L 33, d 5.4, D 7.4
JOCP 25-6 Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): W 13, E 13, L 32, d 6.7, D 9.0
JOCP 25-8 Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): W 13, E 13, L 32, d 6.7, D 9.0
JOCP 35-6 Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, E 16, L 37, d 8.1, D 10.6
JOCP 35-8 Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, E 16, L 38, d 8.1, D 10.6
JOCP 35-10 Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 17, E 16, L 42, d 8.1, D 10.6
JOCP 50-6 Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, E 22.5, L 44, d 9.5, D 12
JOCP 50-8 Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, E 22.5, L 44, d 9.5, D 12
JOCP 50-10 Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, E 22.5, L 49, d 9.5, D 12
JOCP 50-12 Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 20, E 22.5, L 53, d 9.5, D 12
JOCP 70-6 Wire range: 2/0 AWG / 70 mm² | Stud size: M6 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 22, E 25, L 53, d 11.3, D 14.6
JOCP 70-8 Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 22, E 25, L 53, d 11.3, D 14.6
JOCP 70-10 Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 22, E 25, L 53, d 11.3, D 14.6
JOCP 70-12 Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 22, E 25, L 57, d 11.3, D 14.6
JOCP 70-14 Wire range: 2/0 AWG / 70 mm² | Stud size: M14 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 22, E 25, L 57, d 11.3, D 14.6
JOCP 95-6 Wire range: 3/0 AWG / 95 mm² | Stud size: M6 | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): W 25, E 26, L 58, d 13.5, D 17
JOCP 95-8 Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): W 25, E 26, L 58, d 13.5, D 17
JOCP 95-10 Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): W 25, E 26, L 58, d 13.5, D 17
JOCP 95-12 Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): W 25, E 26, L 61, d 13.5, D 17
JOCP 95-14 Wire range: 3/0 AWG / 95 mm² | Stud size: M14 | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): W 25, E 26, L 61, d 13.5, D 17
JOCP 95-16 Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 50 | Pack qty: 50 | Dimensions (mm): W 25, E 26, L 67, d 13.5, D 17
JOCP 120-8 Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, E 29, L 64, d 15.2, D 19
JOCP 120-10 Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, E 29, L 64, d 15.2, D 19
JOCP 120-12 Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, E 29, L 64, d 15.2, D 19
JOCP 120-14 Wire range: 250Kcmil / 120 mm² | Stud size: M14 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, E 29, L 70, d 15.2, D 19
JOCP 120-16 Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, E 29, L 70, d 15.2, D 19
JOCP 150-10 Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, E 37, L 76, d 17, D 21
JOCP 150-12 Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, E 37, L 76, d 17, D 21
JOCP 150-14 Wire range: 300Kcmil / 150 mm² | Stud size: M14 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, E 37, L 76, d 17, D 21
JOCP 150-16 Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, E 37, L 76, d 17, D 21
JOCP 150-20 Wire range: 300Kcmil / 150 mm² | Stud size: M20 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, E 37, L 83, d 17, D 21
JOCP 185-10 Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, E 39, L 80, d 19, D 23.5
JOCP 185-12 Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, E 39, L 80, d 19, D 23.5
JOCP 185-14 Wire range: 350Kcmil / 185 mm² | Stud size: M14 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, E 39, L 80, d 19, D 23.5
JOCP 185-16 Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, E 39, L 80, d 19, D 23.5
JOCP 185-20 Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, E 39, L 87, d 19, D 23.5
JOCP 240-10 Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 40, E 45, L 93, d 22, D 27.4
JOCP 240-12 Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 40, E 45, L 93, d 22, D 27.4
JOCP 240-14 Wire range: 500Kcmil / 240 mm² | Stud size: M14 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 40, E 45, L 93, d 22, D 27.4
JOCP 240-16 Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 40, E 45, L 93, d 22, D 27.4
JOCP 240-20 Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 40, E 45, L 93, d 22, D 27.4
JOCP 300-10 Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, E 50, L 100, d 24, D 30.5
JOCP 300-12 Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, E 50, L 100, d 24, D 30.5
JOCP 300-14 Wire range: 600Kcmil / 300 mm² | Stud size: M14 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, E 50, L 100, d 24, D 30.5
JOCP 300-16 Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, E 50, L 100, d 24, D 30.5
JOCP 300-20 Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, E 50, L 100, d 24, D 30.5
JOCP 400-12 Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, E 53, L 114, d 26, D 34
JOCP 400-14 Wire range: 750Kcmil / 400 mm² | Stud size: M14 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, E 53, L 114, d 26, D 34
JOCP 400-16 Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, E 53, L 114, d 26, D 34
JOCP 400-20 Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, E 53, L 114, d 26, D 34
JOCP 400-24 Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, E 53, L 114, d 26, D 34
JOCP 500-12 Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): W 57.5, E 59, L 136, d 31, D 40
JOCP 500-14 Wire range: 1000Kcmil / 500 mm² | Stud size: M14 | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): W 57.5, E 59, L 136, d 31, D 40
JOCP 500-16 Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): W 57.5, E 59, L 136, d 31, D 40
JOCP 500-20 Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): W 57.5, E 59, L 136, d 31, D 40
JOCP 500-24 Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: White 125 | Pack qty: 10 | Dimensions (mm): W 57.5, E 59, L 136, d 31, D 40
JOCP 630-12 Wire range: 1250Kcmil / 600 mm² | Stud size: M12 | Color code / die: Pink 142 | Pack qty: 8 | Dimensions (mm): W 64.5, E 68, L 150, d 34, D 45
JOCP 630-14 Wire range: 1250Kcmil / 600 mm² | Stud size: M14 | Color code / die: Pink 142 | Pack qty: 8 | Dimensions (mm): W 64.5, E 68, L 150, d 34, D 45
JOCP 630-16 Wire range: 1250Kcmil / 600 mm² | Stud size: M16 | Color code / die: Pink 142 | Pack qty: 8 | Dimensions (mm): W 64.5, E 68, L 150, d 34, D 45
JOCP 630-20 Wire range: 1250Kcmil / 600 mm² | Stud size: M20 | Color code / die: Pink 142 | Pack qty: 8 | Dimensions (mm): W 64.5, E 68, L 150, d 34, D 45
JOCP 630-24 Wire range: 1250Kcmil / 600 mm² | Stud size: M24 | Color code / die: Pink 142 | Pack qty: 8 | Dimensions (mm): W 64.5, E 68, L 150, d 34, D 45
JOCP 800-12 Wire range: 1500Kcmil / 800 mm² | Stud size: M12 | Color code / die: Orange 150 | Pack qty: 5 | Dimensions (mm): W 73, E 84, L 185, d 39, D 50.6
JOCP 800-14 Wire range: 1500Kcmil / 800 mm² | Stud size: M14 | Color code / die: Orange 150 | Pack qty: 5 | Dimensions (mm): W 73, E 84, L 185, d 39, D 50.6
JOCP 800-16 Wire range: 1500Kcmil / 800 mm² | Stud size: M16 | Color code / die: Orange 150 | Pack qty: 5 | Dimensions (mm): W 73, E 84, L 185, d 39, D 50.6
JOCP 800-20 Wire range: 1500Kcmil / 800 mm² | Stud size: M20 | Color code / die: Orange 150 | Pack qty: 5 | Dimensions (mm): W 73, E 84, L 185, d 39, D 50.6
JOCP 800-24 Wire range: 1500Kcmil / 800 mm² | Stud size: M24 | Color code / die: Orange 150 | Pack qty: 5 | Dimensions (mm): W 73, E 84, L 185, d 39, D 50.6
JOCP 1000-16 Wire range: 2000Kcmil / 1000 mm² | Stud size: M16 | Color code / die: Green 194 | Pack qty: 4 | Dimensions (mm): W 80, E 84, L 185, d 43, D 56.2
JOCP 1000-20 Wire range: 2000Kcmil / 1000 mm² | Stud size: M20 | Color code / die: Green 194 | Pack qty: 4 | Dimensions (mm): W 80, E 84, L 185, d 43, D 56.2
JOCP 1000-24 Wire range: 2000Kcmil / 1000 mm² | Stud size: M24 | Color code / die: Green 194 | Pack qty: 4 | Dimensions (mm): W 80, E 84, L 185, d 43, D 56.2
Cable LugsJeoneo
82 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOCP Tubular Cable Lugs, One Hole, With Inspection Hole

Brand Jeoneo·Cable Lugs

Available part numbers (82)

JOCP 1.5-3, JOCP 1.5-4, JOCP 2.5-3, JOCP 2.5-4, JOCP 4-4, JOCP 4-5, JOCP 6-4, JOCP 6-5, JOCP 6-6, JOCP 10-5 + 72 more — see full table ↓
