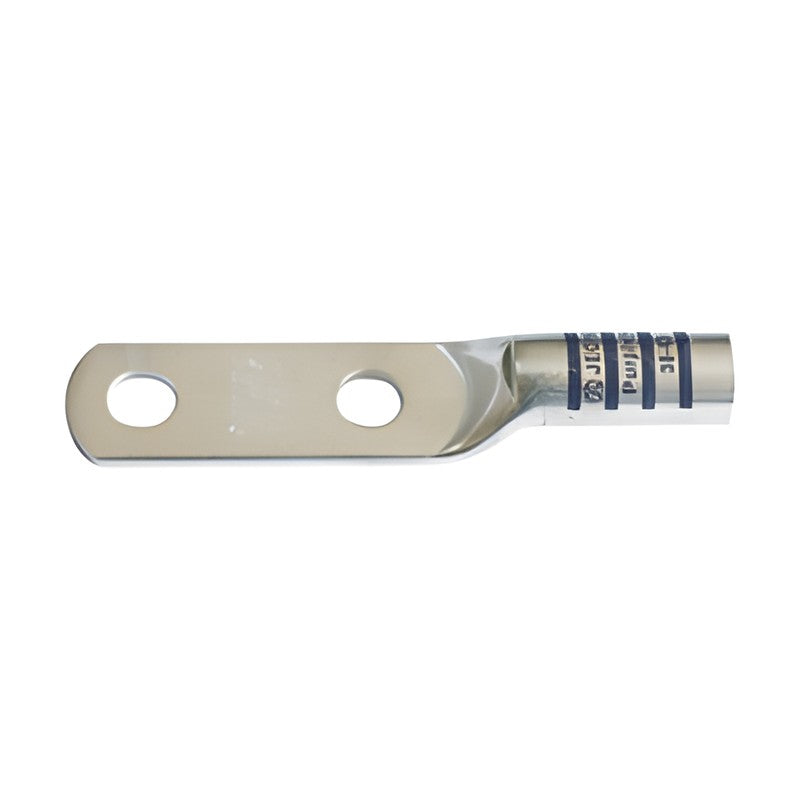

Jeoneo JOCP Tubular Cable Lugs, Two Hole, With Inspection Hole
Jeoneo JOCP Tubular Cable Lugs, Two Hole, With Inspection Hole
Two-hole round-compressed tubular copper cable lugs (Type CP) with inspection hole for 6 to 1000 mm² class 2 conductors.
Key features
- Inspection hole visually confirms full conductor insertion
- Suffix (45) indicates 45 mm hole spacing
- Color coded to show proper die number and color
- UL listed 486A-486B, up to 35 kV
Specifications
| Material | Electrolytic copper (TPC) |
|---|---|
| Surface | Tin plated |
| Conductor class | IEC 60228 class 2 |
| Holes | 2 |
| JOCP 6-2 | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Color code / die: _ | Pack qty: 1000 | Dimensions (mm): W 9, A 22.5, d 4.0, D 5.5, E 14, L 53.5 | |
| JOCP 6-2(45) | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Color code / die: _ | Pack qty: 1000 | Dimensions (mm): W 9, A 45.0, d 4.0, D 5.5, E 14, L 76.0 | |
| JOCP 10-2 | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red21 | Pack qty: 500 | Dimensions (mm): W 10, A 22.5, d 4.7, D 6.7, E 15, L 58.5 | |
| JOCP 10-2(45) | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red21 | Pack qty: 500 | Dimensions (mm): W 10, A 45.0, d 4.7, D 6.7, E 15, L 81.0 | |
| JOCP 16-2 | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue24 | Pack qty: 300 | Dimensions (mm): W 12, A 22.5, d 5.4, D 7.4, E 23, L 67.5 | |
| JOCP 16-2(45) | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue24 | Pack qty: 300 | Dimensions (mm): W 12, A 45.0, d 5.4, D 7.4, E 23, L 90.0 | |
| JOCP 25-2 | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray29 | Pack qty: 200 | Dimensions (mm): W 14, A 22.5, d 6.7, D 9.0, E 23, L 71.5 | |
| JOCP 25-2(45) | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray29 | Pack qty: 200 | Dimensions (mm): W 14, A 45.0, d 6.7, D 9.0, E 23, L 94.0 | |
| JOCP 35-2 | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown33 | Pack qty: 100 | Dimensions (mm): W 16, A 22.5, d 8.1, D 10.6, E 26, L 75.5 | |
| JOCP 35-2(45) | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown33 | Pack qty: 100 | Dimensions (mm): W 16, A 45.0, d 8.1, D 10.6, E 26, L 98.0 | |
| JOCP 50-2 | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18, A 22.5, d 9.5, D 12, E 30.5, L 85 | |
| JOCP 50-2(45) | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18, A 45.0, d 9.5, D 12, E 30.5, L 108.0 | |
| JOCP 70-2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black45 | Pack qty: 50 | Dimensions (mm): W 22, A 45, d 11.3, D 14.6, E 32, L 115 | |
| JOCP 95-2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange50 | Pack qty: 50 | Dimensions (mm): W 25, A 45, d 13.5, D 17, E 38, L 125 | |
| JOCP 120-2 | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple54 | Pack qty: 50 | Dimensions (mm): W 28, A 45, d 15.2, D 19, E 43, L 130 | |
| JOCP 150-2 | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow62 | Pack qty: 30 | Dimensions (mm): W 31, A 45, d 17, D 21, E 46, L 135 | |
| JOCP 185-2 | Wire range: 350Kcmli AWG / 185 mm² | Stud size: M12 | Color code / die: Red71 | Pack qty: 25 | Dimensions (mm): W 35, A 45, d 19, D 23.5, E 48, L 142 | |
| JOCP 240-2 | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown87 | Pack qty: 15 | Dimensions (mm): W 40, A 45, d 22, D 27.4, E 59, L 149 | |
| JOCP 300-2 | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green94 | Pack qty: 10 | Dimensions (mm): W 45, A 45, d 24, D 30.5, E 68, L 163 | |
| JOCP 400-2 | Wire range: 750Kcmil / 400 mm² | Stud size: M14 | Color code / die: Black106 | Pack qty: 8 | Dimensions (mm): W 49, A 45, d 26, D 34, E 71, L 177 | |
| JOCP 500-2 | Wire range: 1000Kcmil / 500 mm² | Stud size: M14 | Color code / die: White125 | Pack qty: 8 | Dimensions (mm): W 58, A 45, d 31, D 40, E 74, L 188 | |
| JOCP 630-2 | Wire range: 1250Kcmil / 630 mm² | Stud size: M16 | Color code / die: Pink142 | Pack qty: 5 | Dimensions (mm): W 64.5, A 45, d 34, D 45, E 81, L 211 | |
| JOCP 800-2 | Wire range: 1600Kcmil / 800 mm² | Stud size: M16 | Color code / die: Orange150 | Pack qty: 5 | Dimensions (mm): W 72, A 45, d 39, D 50.6, E 100, L 232 | |
| JOCP 1000-2 | Wire range: 2000Kcmil / 1000 mm² | Stud size: M16 | Color code / die: Green194 | Pack qty: 5 | Dimensions (mm): W 80, A 45, d 43, D 56.2, E 102, L 245 |
Cable LugsJeoneo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOCP Tubular Cable Lugs, Two Hole, With Inspection Hole
Available part numbers (24)
JOCP 6-2, JOCP 6-2(45), JOCP 10-2, JOCP 10-2(45), JOCP 16-2, JOCP 16-2(45), JOCP 25-2, JOCP 25-2(45), JOCP 35-2, JOCP 35-2(45) + 14 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOCP 6-2 | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Color code / die: _ | Pack qty: 1000 | Dimensions (mm): W 9, A 22.5, d 4.0, D 5.5, E 14, L 53.5 | ||
| JOCP 6-2(45) | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Color code / die: _ | Pack qty: 1000 | Dimensions (mm): W 9, A 45.0, d 4.0, D 5.5, E 14, L 76.0 | ||
| JOCP 10-2 | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red21 | Pack qty: 500 | Dimensions (mm): W 10, A 22.5, d 4.7, D 6.7, E 15, L 58.5 | ||
| JOCP 10-2(45) | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red21 | Pack qty: 500 | Dimensions (mm): W 10, A 45.0, d 4.7, D 6.7, E 15, L 81.0 | ||
| JOCP 16-2 | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue24 | Pack qty: 300 | Dimensions (mm): W 12, A 22.5, d 5.4, D 7.4, E 23, L 67.5 | ||
| JOCP 16-2(45) | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue24 | Pack qty: 300 | Dimensions (mm): W 12, A 45.0, d 5.4, D 7.4, E 23, L 90.0 | ||
| JOCP 25-2 | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray29 | Pack qty: 200 | Dimensions (mm): W 14, A 22.5, d 6.7, D 9.0, E 23, L 71.5 | ||
| JOCP 25-2(45) | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray29 | Pack qty: 200 | Dimensions (mm): W 14, A 45.0, d 6.7, D 9.0, E 23, L 94.0 | ||
| JOCP 35-2 | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown33 | Pack qty: 100 | Dimensions (mm): W 16, A 22.5, d 8.1, D 10.6, E 26, L 75.5 | ||
| JOCP 35-2(45) | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown33 | Pack qty: 100 | Dimensions (mm): W 16, A 45.0, d 8.1, D 10.6, E 26, L 98.0 | ||
| JOCP 50-2 | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18, A 22.5, d 9.5, D 12, E 30.5, L 85 | ||
| JOCP 50-2(45) | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18, A 45.0, d 9.5, D 12, E 30.5, L 108.0 | ||
| JOCP 70-2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black45 | Pack qty: 50 | Dimensions (mm): W 22, A 45, d 11.3, D 14.6, E 32, L 115 | ||
| JOCP 95-2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange50 | Pack qty: 50 | Dimensions (mm): W 25, A 45, d 13.5, D 17, E 38, L 125 | ||
| JOCP 120-2 | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple54 | Pack qty: 50 | Dimensions (mm): W 28, A 45, d 15.2, D 19, E 43, L 130 | ||
| JOCP 150-2 | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow62 | Pack qty: 30 | Dimensions (mm): W 31, A 45, d 17, D 21, E 46, L 135 | ||
| JOCP 185-2 | Wire range: 350Kcmli AWG / 185 mm² | Stud size: M12 | Color code / die: Red71 | Pack qty: 25 | Dimensions (mm): W 35, A 45, d 19, D 23.5, E 48, L 142 | ||
| JOCP 240-2 | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown87 | Pack qty: 15 | Dimensions (mm): W 40, A 45, d 22, D 27.4, E 59, L 149 | ||
| JOCP 300-2 | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green94 | Pack qty: 10 | Dimensions (mm): W 45, A 45, d 24, D 30.5, E 68, L 163 | ||
| JOCP 400-2 | Wire range: 750Kcmil / 400 mm² | Stud size: M14 | Color code / die: Black106 | Pack qty: 8 | Dimensions (mm): W 49, A 45, d 26, D 34, E 71, L 177 | ||
| JOCP 500-2 | Wire range: 1000Kcmil / 500 mm² | Stud size: M14 | Color code / die: White125 | Pack qty: 8 | Dimensions (mm): W 58, A 45, d 31, D 40, E 74, L 188 | ||
| JOCP 630-2 | Wire range: 1250Kcmil / 630 mm² | Stud size: M16 | Color code / die: Pink142 | Pack qty: 5 | Dimensions (mm): W 64.5, A 45, d 34, D 45, E 81, L 211 | ||
| JOCP 800-2 | Wire range: 1600Kcmil / 800 mm² | Stud size: M16 | Color code / die: Orange150 | Pack qty: 5 | Dimensions (mm): W 72, A 45, d 39, D 50.6, E 100, L 232 | ||
| JOCP 1000-2 | Wire range: 2000Kcmil / 1000 mm² | Stud size: M16 | Color code / die: Green194 | Pack qty: 5 | Dimensions (mm): W 80, A 45, d 43, D 56.2, E 102, L 245 |
Need a different model, or a part not listed here? Send us your parts list →
