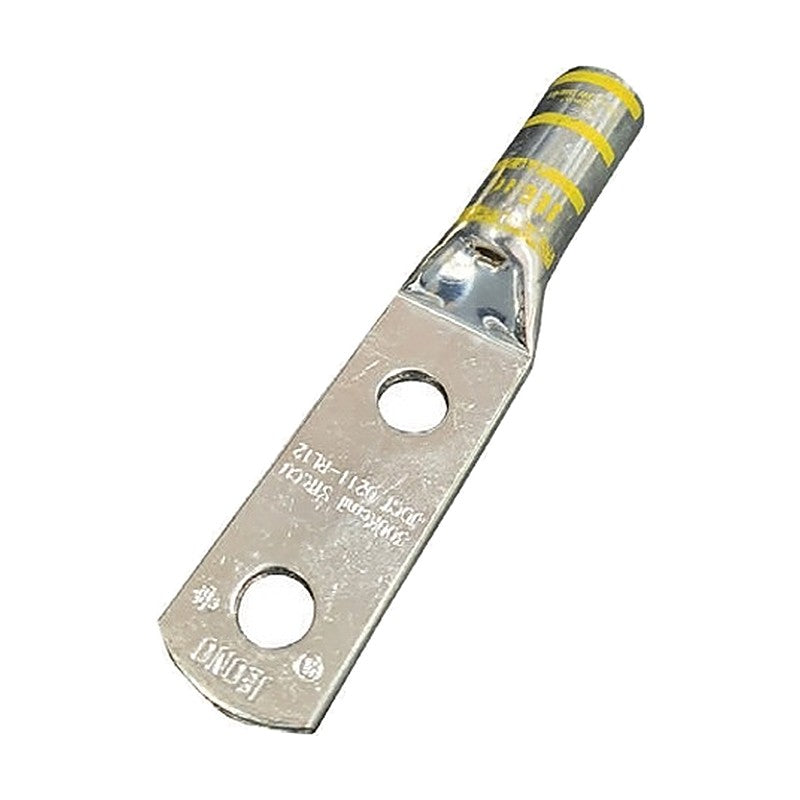

Jeoneo JOCT Code Conductor Lugs, Two Hole, Square Tongue, 10-50 mm²

Jeoneo JOCT Code Conductor Lugs, Two Hole, Square Tongue, 10-50 mm²

Two-hole copper lugs (Type CT) with inspection hole for code (class 2) conductors, standard (S) or long (L) barrel, square tongue, 10-50 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 2 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 2
Tongue form Square
JOCT 0201-SS05 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 9.5, d 4.7, D 6.7, A 16, E 15, L 52
JOCT 0201-SL05 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 9.5, d 4.7, D 6.7, A 16, E 30, L 67
JOCT 0201-SS06 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 9.5, d 4.7, D 6.7, A 16, E 15, L 52
JOCT 0201-SL06 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 9.5, d 4.7, D 6.7, A 16, E 30, L 67
JOCT 0201-SS08 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Red 21, JOCD-8 | Pack qty: 300 | Dimensions (mm): W 15, d 4.7, D 6.7, A 19, E 15, L 67
JOCT 0201-SL08 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 15, d 4.7, D 6.7, A 19, E 30, L 82
JOCT 0201-SS10 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Red 21, JOCD-8 | Pack qty: 200 | Dimensions (mm): W 15, d 4.7, D 6.7, A 19, E 15, L 67
JOCT 0201-SL10 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 15, d 4.7, D 6.7, A 19, E 30, L 82
JOCT 0201-SS12 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Red 21, JOCD-8 | Pack qty: 200 | Dimensions (mm): W 18, d 4.7, D 6.7, A 22, E 15, L 70
JOCT 0201-SL12 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Red 21, JOCD-8 | Pack qty: 150 | Dimensions (mm): W 18, d 4.7, D 6.7, A 22, E 30, L 85
JOCT 0202-SS05 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 15, L 52
JOCT 0202-SL05 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 30, L 67
JOCT 0202-SS06 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 15, L 52
JOCT 0202-SL06 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 12, d 5.4, D 7.4, A 16, E 30, L 67
JOCT 0202-SS08 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 15, L 67
JOCT 0202-SL08 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 30, L 82
JOCT 0202-SS10 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 15, L 67
JOCT 0202-SL10 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 15.5, d 5.4, D 7.4, A 19, E 30, L 82
JOCT 0202-SS12 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 18, d 5.4, D 7.4, A 22, E 15, L 70
JOCT 0202-SL12 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Blue 24, JOCD-6 | Pack qty: 150 | Dimensions (mm): W 18, d 5.4, D 7.4, A 22, E 30, L 85
JOCT 0203-SS05 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 17, L 54
JOCT 0203-SL05 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29, JOCD-4 | Pack qty: 100 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 33, L 70
JOCT 0203-SS06 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 17, L 54
JOCT 0203-SL06 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29, JOCD-4 | Pack qty: 100 | Dimensions (mm): W 14, d 6.7, D 9.0, A 16, E 33, L 70
JOCT 0203-SS08 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 14, d 6.7, D 9.0, A 19, E 17, L 70
JOCT 0203-SL08 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29, JOCD-4 | Pack qty: 100 | Dimensions (mm): W 14, d 6.7, D 9.0, A 19, E 33, L 86
JOCT 0203-SS10 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 19, E 17, L 70
JOCT 0203-SL10 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29, JOCD-4 | Pack qty: 100 | Dimensions (mm): W 15.5, d 6.7, D 9.0, A 19, E 33, L 86
JOCT 0203-SS12 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JOCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, A 22, E 17, L 73
JOCT 0203-SL12 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Gray 29, JOCD-4 | Pack qty: 100 | Dimensions (mm): W 18, d 6.7, D 9.0, A 22, E 33, L 89
JOCT 0204-SS05 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 71.5
JOCT 0204-SL05 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 75
JOCT 0204-SS06 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 71.5
JOCT 0204-SL06 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 75
JOCT 0204-SS08 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 72
JOCT 0204-SL08 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 85
JOCT 0204-SS10 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 19.5, L 72
JOCT 0204-SL10 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33, JOCD-2 | Pack qty: 50 | Dimensions (mm): W 16, d 8.1, D 10.6, A 19, E 33, L 85
JOCT 0204-SS12 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Brown 33, JOCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, A 22, E 19.5, L 75
JOCT 0204-SL12 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Brown 33, JOCD-2 | Pack qty: 50 | Dimensions (mm): W 18, d 8.1, D 10.6, A 22, E 33, L 88
JOCT 0205-SS05 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JOCT 0205-SL05 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JOCT 0205-SS06 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JOCT 0205-SL06 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JOCT 0205-SS08 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JOCT 0205-SL08 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JOCT 0205-SS10 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JOCT 0205-SL10 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JOCT 0205-SS12 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 19.5, L 97
JOCT 0205-SL12 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, A 44.5, E 35, L 112
JOCT 0205-SS16 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, A 44.5, E 19.5, L 97
JOCT 0205-SL16 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Green 37, JOCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, A 44.5, E 35, L 112
