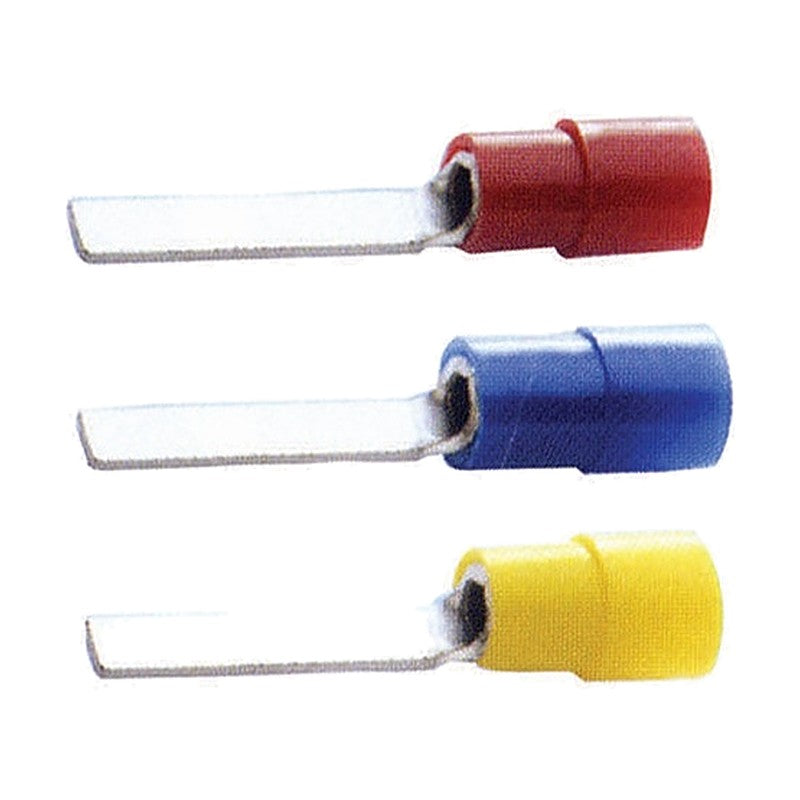

Jeoneo JONB Nylon-Insulated Blade Terminals
Jeoneo JONB Nylon-Insulated Blade Terminals
Nylon-insulated copper blade terminals for high-temperature applications up to 125 °C; U suffix = without brazed seam, W suffix = brazed seam.
Key features
- Oxygen-free copper, tin plated
- Nylon insulation, UL94 V-2
Specifications
| Material | Oxygen-free copper |
|---|---|
| Surface | Tin plated |
| Insulation | Nylon |
| Temperature rating | Up to 125 °C |
| Flammability | UL94 V-2 |
| JONB 152U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.1, t 0.7 | |
| JONB 153U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 21.0, E 11.0, D 6.1, t 0.7 | |
| JONB 154U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.1, t 0.7 | |
| JONB 155U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.1, t 0.7 | |
| JONB 156U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 25.0, E 11.0, D 6.1, t 0.7 | |
| JONB 252U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.3, t 0.8 | |
| JONB 253U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 23.0, E 11.0, D 6.3, t 0.8 | |
| JONB 254U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.3, t 0.8 | |
| JONB 255U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.3, t 0.8 | |
| JONB 256U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 19.5, E 11.0, D 6.3, t 0.8 | |
| JONB 4U | Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.5, E 14.5, D 7.8, t 0.9 | |
| JONB 4-2U | Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 25.0, E 14.5, D 7.8, t 0.9 | |
| JONB 4-3U | Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 29.0, E 14.5, D 7.8, t 0.9 | |
| JONB 6-1U | Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.5, D 8.3, t 1.0 | |
| JONB 6U | Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.9, E 14.5, D 8.3, t 1.0 | |
| JONB 152W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.1, t 0.7 | |
| JONB 153W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 21.0, E 11.0, D 6.1, t 0.7 | |
| JONB 154W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.1, t 0.7 | |
| JONB 155W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.1, t 0.7 | |
| JONB 156W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 25.0, E 11.0, D 6.1, t 0.7 | |
| JONB 252W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.3, t 0.8 | |
| JONB 253W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 23.0, E 11.0, D 6.3, t 0.8 | |
| JONB 254W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.3, t 0.8 | |
| JONB 255W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.3, t 0.8 | |
| JONB 256W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 19.5, E 11.0, D 6.3, t 0.8 | |
| JONB 4W | Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.5, E 14.5, D 7.8, t 0.9 | |
| JONB 4-2W | Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 25.0, E 14.5, D 7.8, t 0.9 | |
| JONB 4-3W | Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 29.0, E 14.5, D 7.8, t 0.9 | |
| JONB 6-1W | Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.5, D 8.3, t 1.0 | |
| JONB 6W | Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.9, E 14.5, D 8.3, t 1.0 | |
| JONB 10W | Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Color: RED | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.5, E 17.0, D 10.8, t 1.15 |
Blade TerminalsJeoneo
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JONB Nylon-Insulated Blade Terminals
Available part numbers (31)
JONB 152U, JONB 153U, JONB 154U, JONB 155U, JONB 156U, JONB 252U, JONB 253U, JONB 254U, JONB 255U, JONB 256U + 21 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Blade Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JONB 152U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.1, t 0.7 | ||
| JONB 153U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 21.0, E 11.0, D 6.1, t 0.7 | ||
| JONB 154U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.1, t 0.7 | ||
| JONB 155U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.1, t 0.7 | ||
| JONB 156U | Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 25.0, E 11.0, D 6.1, t 0.7 | ||
| JONB 252U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.3, t 0.8 | ||
| JONB 253U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 23.0, E 11.0, D 6.3, t 0.8 | ||
| JONB 254U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.3, t 0.8 | ||
| JONB 255U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.3, t 0.8 | ||
| JONB 256U | Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 19.5, E 11.0, D 6.3, t 0.8 | ||
| JONB 4U | Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.5, E 14.5, D 7.8, t 0.9 | ||
| JONB 4-2U | Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 25.0, E 14.5, D 7.8, t 0.9 | ||
| JONB 4-3U | Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 29.0, E 14.5, D 7.8, t 0.9 | ||
| JONB 6-1U | Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.5, D 8.3, t 1.0 | ||
| JONB 6U | Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.9, E 14.5, D 8.3, t 1.0 | ||
| JONB 152W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.1, t 0.7 | ||
| JONB 153W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 21.0, E 11.0, D 6.1, t 0.7 | ||
| JONB 154W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.1, t 0.7 | ||
| JONB 155W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.1, t 0.7 | ||
| JONB 156W | Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 25.0, E 11.0, D 6.1, t 0.7 | ||
| JONB 252W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 28.0, E 11.0, D 6.3, t 0.8 | ||
| JONB 253W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 23.0, E 11.0, D 6.3, t 0.8 | ||
| JONB 254W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 29.5, E 11.0, D 6.3, t 0.8 | ||
| JONB 255W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 26.5, E 11.0, D 6.3, t 0.8 | ||
| JONB 256W | Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 19.5, E 11.0, D 6.3, t 0.8 | ||
| JONB 4W | Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.5, E 14.5, D 7.8, t 0.9 | ||
| JONB 4-2W | Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 25.0, E 14.5, D 7.8, t 0.9 | ||
| JONB 4-3W | Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 29.0, E 14.5, D 7.8, t 0.9 | ||
| JONB 6-1W | Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.5, D 8.3, t 1.0 | ||
| JONB 6W | Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.9, E 14.5, D 8.3, t 1.0 | ||
| JONB 10W | Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Color: RED | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.5, E 17.0, D 10.8, t 1.15 |
Need a different model, or a part not listed here? Send us your parts list →
