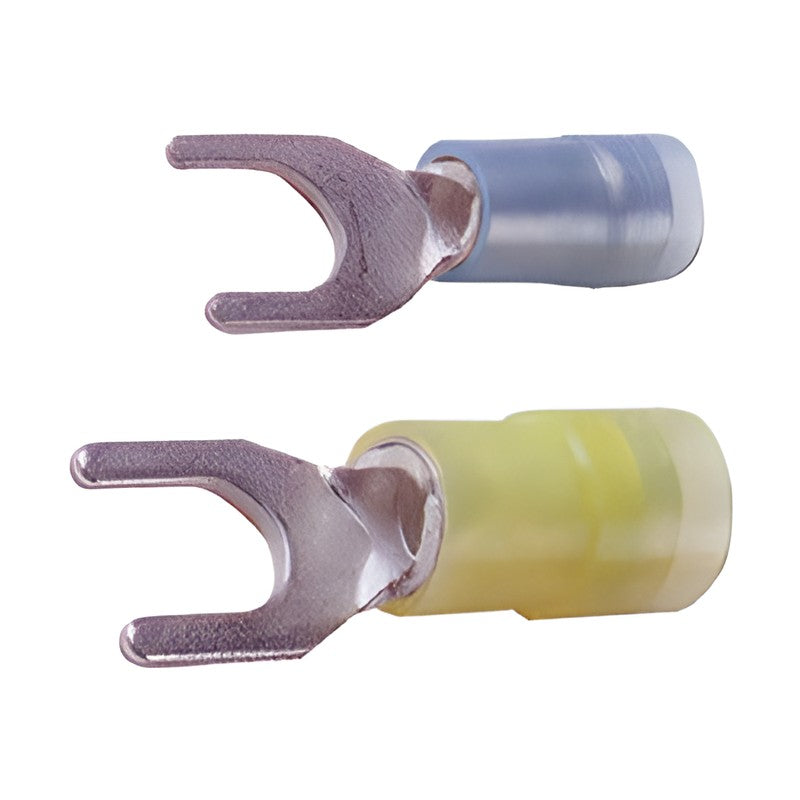

Jeoneo JONF Nylon-Insulated Funnel-Entry Fork Terminals

Jeoneo JONF Nylon-Insulated Funnel-Entry Fork Terminals

Nylon-insulated funnel-entry copper fork terminals (Type RBP(F)) for high-temperature applications up to 125 °C.

Key features

  • Funnel entry for easy wire insertion
  • Nylon insulation, UL94 V-2
  • W suffix = brazed seam version

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation Nylon
Temperature rating Up to 125 °C
Flammability UL94 V-2
Jeoneo JONF Nylon-Insulated Funnel-Entry Fork Terminals
JONF 0513 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 11, D 6.1, t 0.65
JONF 0514 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 11, D 6.1, t 0.65
JONF 0515 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 11, D 6.1, t 0.65
JONF 15253 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 11, D 6.3, t 0.8
JONF 15254 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 11, D 6.3, t 0.8
JONF 15255 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 11, D 6.3, t 0.8
JONF 464 Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14.5, D 8.3, t 0.9
JONF 465 Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14.5, D 8.3, t 0.9
JONF 0513W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 11, D 6.1, t 0.65
JONF 0514W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 11, D 6.1, t 0.65
JONF 0515W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 11, D 6.1, t 0.65
JONF 15253W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 11, D 6.3, t 0.8
JONF 15254W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 11, D 6.3, t 0.8
JONF 15255W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 11, D 6.3, t 0.8
JONF 464W Brazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14.5, D 8.3, t 0.9
JONF 465W Brazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14.5, D 8.3, t 0.9
JONF 105W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 500 | Dimensions (mm): B 10, L 32, E 17, D 10.8, t 1.0
JONF 106W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 500 | Dimensions (mm): B 11, L 33, E 17, D 10.8, t 1.0
Fork TerminalsJeoneo
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JONF Nylon-Insulated Funnel-Entry Fork Terminals

Brand Jeoneo·Fork Terminals

Available part numbers (18)

JONF 0513, JONF 0514, JONF 0515, JONF 15253, JONF 15254, JONF 15255, JONF 464, JONF 465, JONF 0513W, JONF 0514W + 8 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JONF Nylon-Insulated Funnel-Entry Fork Terminals
0 selected
RFQ List (0)
Product codeSpec
JONF 0513Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 11, D 6.1, t 0.65
JONF 0514Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 11, D 6.1, t 0.65
JONF 0515Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 11, D 6.1, t 0.65
JONF 15253Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 11, D 6.3, t 0.8
JONF 15254Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 11, D 6.3, t 0.8
JONF 15255Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 11, D 6.3, t 0.8
JONF 464Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14.5, D 8.3, t 0.9
JONF 465Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14.5, D 8.3, t 0.9
JONF 0513WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 11, D 6.1, t 0.65
JONF 0514WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 11, D 6.1, t 0.65
JONF 0515WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 11, D 6.1, t 0.65
JONF 15253WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 11, D 6.3, t 0.8
JONF 15254WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 11, D 6.3, t 0.8
JONF 15255WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 11, D 6.3, t 0.8
JONF 464WBrazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14.5, D 8.3, t 0.9
JONF 465WBrazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14.5, D 8.3, t 0.9
JONF 105WBrazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 500 | Dimensions (mm): B 10, L 32, E 17, D 10.8, t 1.0
JONF 106WBrazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 500 | Dimensions (mm): B 11, L 33, E 17, D 10.8, t 1.0
