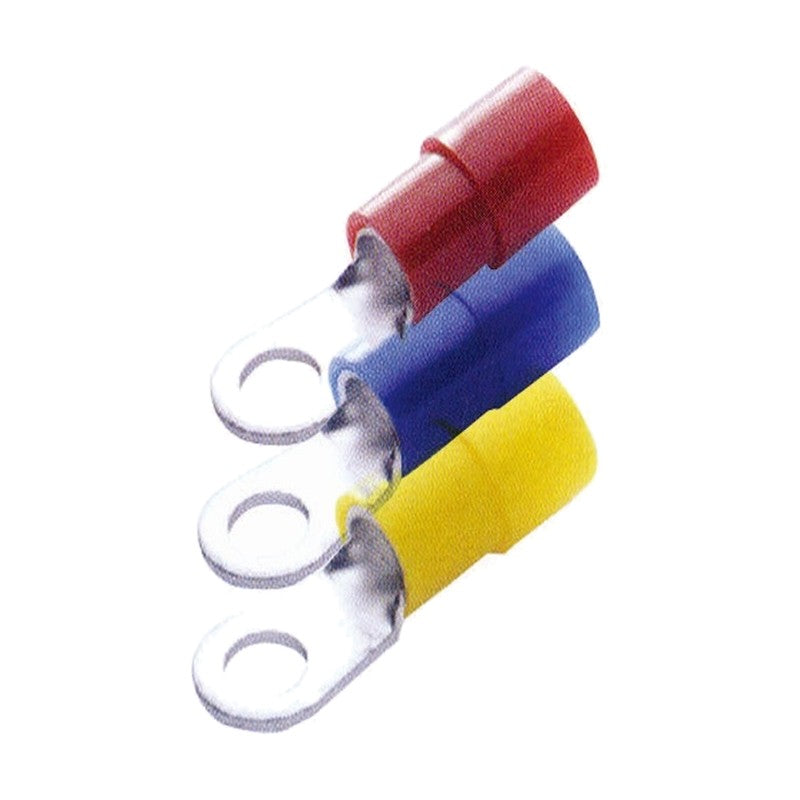

Jeoneo JONT Nylon-Insulated Ring Terminals, Electrolytic Copper

Jeoneo JONT Nylon-Insulated Ring Terminals, Electrolytic Copper

Nylon-insulated electrolytic copper ring terminals for 1.5 to 16 mm² wire, with or without brazed seam.

Key features

  • Electrolytic copper, tin plated
  • Nylon insulation

Specifications

Material Electrolytic copper
Surface Tin plated
Insulation Nylon
Jeoneo JONT Nylon-Insulated Ring Terminals, Electrolytic Copper
JONT 1.5-33 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.4, L 16.3, E 11.0, D 6.1, t 0.65
JONT 1.5-M3 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 19.0, E 11.0, D 6.1, t 0.65
JONT 1.5-44 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.1, L 18.8, E 11.0, D 6.1, t 0.65
JONT 1.5-M4 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 19.8, E 11.0, D 6.1, t 0.65
JONT 1.5-54 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 20.8, E 11.0, D 6.1, t 0.65
JONT 1.5-6 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10.4, L 25.8, E 11.0, D 6.1, t 0.65
JONT 1.5-8 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 10.4, L 26.2, E 11.0, D 6.1, t 0.65
JONT 1.5-10 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 27.5, E 11.0, D 6.1, t 0.65
JONT 1.5-12 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 17.0, L 31.0, E 11.0, D 6.1, t 0.65
JONT 2.5-M3 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21.0, E 11.0, D 6.3, t 0.65
JONT 2.5-4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.5, L 20.0, E 11.0, D 6.3, t 0.65
JONT 2.5-M4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21.0, E 11.0, D 6.3, t 0.65
JONT 2.5-54 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 20.9, E 11.0, D 6.3, t 0.65
JONT 2.5-6 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.4, L 22.5, E 11.0, D 6.3, t 0.65
JONT 2.5-8 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 8 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.5, L 26.6, E 11.0, D 6.3, t 0.65
JONT 2.5-10 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 10 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 27.5, E 11.0, D 6.3, t 0.65
JONT 2.5-12 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 12 | Color: BLUE, RED, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 17.0, L 30.8, E 11.0, D 6.3, t 0.65
JONT 4-M4 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.7, L 24.8, E 14.5, D 7.8, t 0.75
JONT 4-54 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 24.5, E 14.5, D 7.8, t 0.75
JONT 4-6 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 30.0, E 14.5, D 7.8, t 0.8
JONT 4-8 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 30.0, E 14.5, D 7.8, t 0.8
JONT 4-10 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 31.5, E 14.5, D 7.8, t 0.8
JONT 4-12 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 16.0, L 32.2, E 14.5, D 7.8, t 0.8
JONT 6-M4 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.0, L 25.0, E 14.5, D 8.3, t 0.8
JONT 6-54 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 26.0, E 14.5, D 8.3, t 0.8
JONT 6-6 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12.4, L 30.0, E 14.5, D 8.3, t 0.8
JONT 6-8 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12.4, L 30.0, E 14.5, D 8.3, t 0.8
JONT 6-10 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 31.0, E 14.5, D 8.3, t 0.8
JONT 6-12 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 16.0, L 32.5, E 14.5, D 8.3, t 0.8
JONT 10-M4 Wire range: 8 AWG / 10 mm² | Stud size (mm): 4 | Color: RED | Pack qty: 500 | Dimensions (mm): B 9.0, L 32.5, E 17.0, D 10.8, t 1.0
JONT 10-M5 Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 500 | Dimensions (mm): B 9.0, L 32.5, E 17.0, D 10.8, t 1.0
JONT 10-6 Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 500 | Dimensions (mm): B 11.8, L 32.1, E 17.0, D 10.8, t 1.0
JONT 10-8 Wire range: 8 AWG / 10 mm² | Stud size (mm): 8 | Color: RED | Pack qty: 500 | Dimensions (mm): B 15.0, L 37.5, E 17.0, D 10.8, t 1.0
JONT 10-10 Wire range: 8 AWG / 10 mm² | Stud size (mm): 10 | Color: RED | Pack qty: 500 | Dimensions (mm): B 15.0, L 37.5, E 17.0, D 10.8, t 1.0
JONT 10-12 Wire range: 8 AWG / 10 mm² | Stud size (mm): 12 | Color: RED | Pack qty: 500 | Dimensions (mm): B 20.0, L 43.5, E 17.0, D 10.8, t 1.0
JONT 10-16 Wire range: 8 AWG / 10 mm² | Stud size (mm): 16 | Color: RED | Pack qty: 500 | Dimensions (mm): B 20.0, L 43.5, E 17.0, D 10.8, t 1.0
JONT 16-5 Wire range: 6 AWG / 16 mm² | Stud size (mm): 5 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 12.0, L 40.0, E 22.0, D 12.9, t 1.2
JONT 16-6 Wire range: 6 AWG / 16 mm² | Stud size (mm): 6 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 12.0, L 40.0, E 22.0, D 12.9, t 1.2
JONT 16-8 Wire range: 6 AWG / 16 mm² | Stud size (mm): 8 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 16.0, L 41.0, E 22.0, D 12.9, t 1.2
JONT 16-10 Wire range: 6 AWG / 16 mm² | Stud size (mm): 10 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 16.0, L 41.0, E 22.0, D 12.9, t 1.2
JONT 16-12 Wire range: 6 AWG / 16 mm² | Stud size (mm): 12 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 22.0, L 51.0, E 22.0, D 12.9, t 1.2
JONT 16-16 Wire range: 6 AWG / 16 mm² | Stud size (mm): 16 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 22.0, L 51.0, E 22.0, D 12.9, t 1.2
Ring TerminalsJeoneo
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JONT Nylon-Insulated Ring Terminals, Electrolytic Copper

Brand Jeoneo·Ring Terminals

Available part numbers (42)

JONT 1.5-33, JONT 1.5-M3, JONT 1.5-44, JONT 1.5-M4, JONT 1.5-54, JONT 1.5-6, JONT 1.5-8, JONT 1.5-10, JONT 1.5-12, JONT 2.5-M3 + 32 more — see full table ↓
