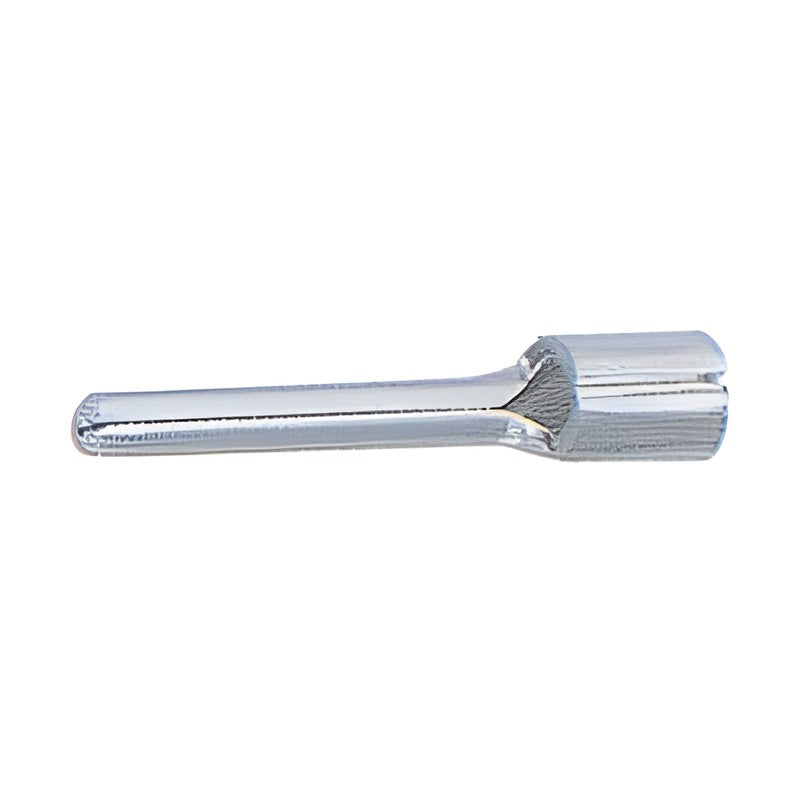

Jeoneo JOPN Non-Insulated Pin Terminals
Jeoneo JOPN Non-Insulated Pin Terminals
Non-insulated tin-plated copper pin terminals with brazed seam for 0.5 to 6 mm² wire.
Key features
- Oxygen-free copper, tin plated
- Brazed seam barrel
Specifications
| Material | Oxygen-free copper |
|---|---|
| Surface | Tin plated |
| Barrel | Brazed seam |
| Pack qty | 1,000 |
| JOPN 15W | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 19.0, E 5.0, d 1.7 | |
| JOPN 252W | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 19.0, E 5.0, d 2.3 | |
| JOPN 253W | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 22.0, E 5.0, d 2.3 | |
| JOPN 4W | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 20.0, E 6.0, d 3.0 | |
| JOPN 6W | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 20.0, E 6.0, d 3.4 |
Pin TerminalsJeoneo
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOPN Non-Insulated Pin Terminals
Available part numbers (5)
JOPN 15W, JOPN 252W, JOPN 253W, JOPN 4W, JOPN 6W
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Pin Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOPN 15W | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 19.0, E 5.0, d 1.7 | ||
| JOPN 252W | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 19.0, E 5.0, d 2.3 | ||
| JOPN 253W | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 22.0, E 5.0, d 2.3 | ||
| JOPN 4W | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 20.0, E 6.0, d 3.0 | ||
| JOPN 6W | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 20.0, E 6.0, d 3.4 |
Need a different model, or a part not listed here? Send us your parts list →
