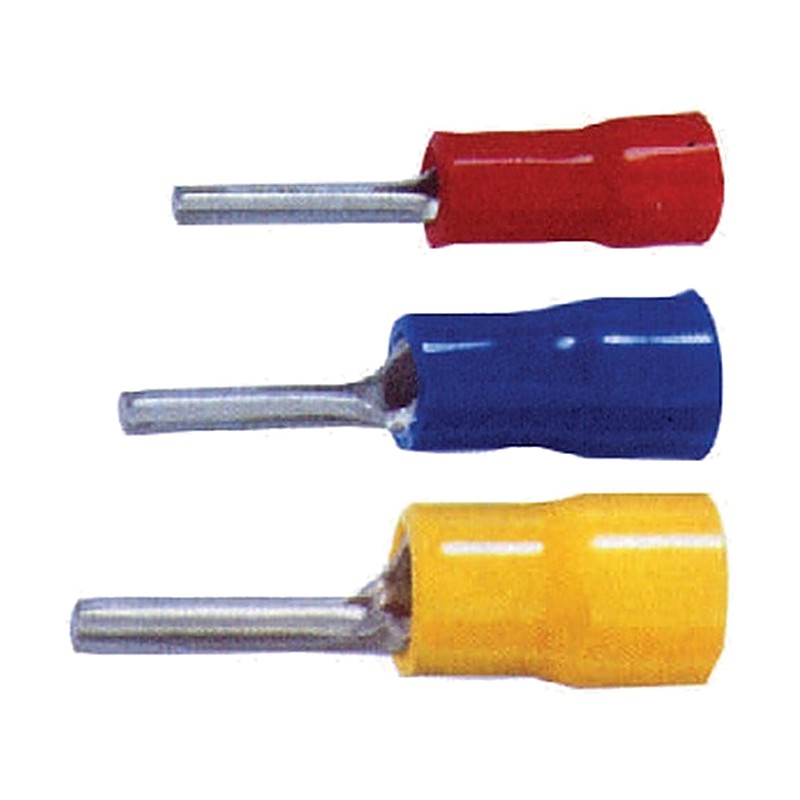

Jeoneo JOPP PVC-Insulated Pin Terminals, Electrolytic Copper

Jeoneo JOPP PVC-Insulated Pin Terminals, Electrolytic Copper

PVC-insulated electrolytic copper pin terminals for 1.5 to 6 mm² wire, with or without brazed seam.

Key features

  • Electrolytic copper, tin plated
  • PVC insulation

Specifications

Material Electrolytic copper
Surface Tin plated
Insulation PVC
Color RED, BLUE, YELLOW, WHITE, BLACK, GREEN
Pack qty 1,000
Jeoneo JOPP PVC-Insulated Pin Terminals, Electrolytic Copper
JOPP 152 Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 5.9
JOPP 251 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 1.8, L 22.0, E 10.0, D 6.3
JOPP 252 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 6.3
JOPP 253 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 27.0, E 10.0, D 6.3
JOPP 4 Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.0, E 14.0, D 7.5
JOPP 6 Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.0, E 14.0, D 8.3
Pin TerminalsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOPP PVC-Insulated Pin Terminals, Electrolytic Copper

Brand Jeoneo·Pin Terminals

Available part numbers (6)

JOPP 152, JOPP 251, JOPP 252, JOPP 253, JOPP 4, JOPP 6

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOPP PVC-Insulated Pin Terminals, Electrolytic Copper
0 selected
RFQ List (0)
Product codeSpec
JOPP 152Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 5.9
JOPP 251Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 1.8, L 22.0, E 10.0, D 6.3
JOPP 252Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 6.3
JOPP 253Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 27.0, E 10.0, D 6.3
JOPP 4Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.0, E 14.0, D 7.5
JOPP 6Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.0, E 14.0, D 8.3
