Jeoneo JOST Circuit Breaker Terminals, Type ST

Jeoneo JOST Circuit Breaker Terminals, Type ST

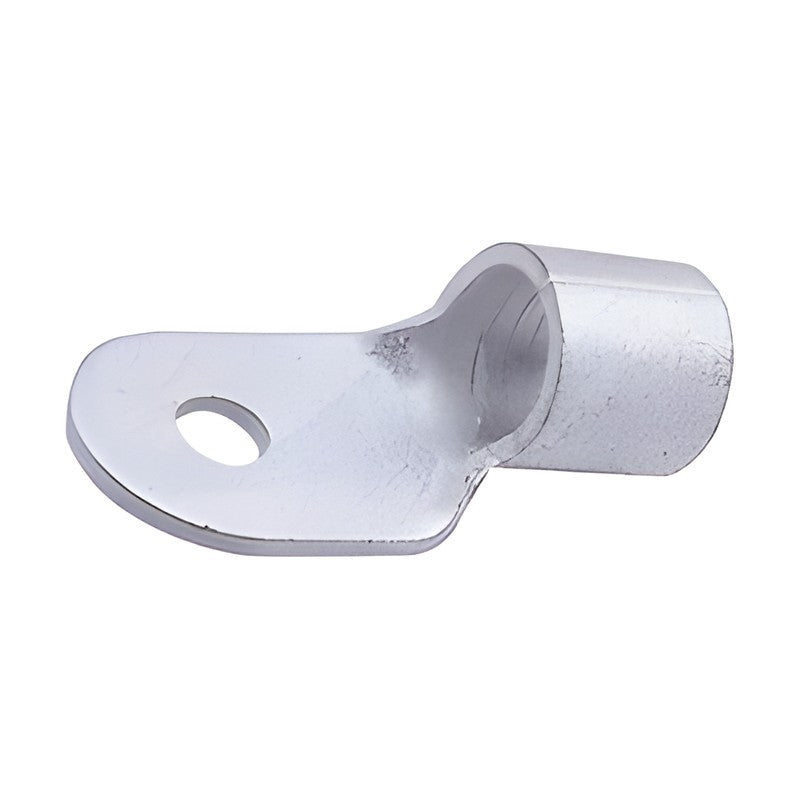

Non-insulated electrolytic copper terminals (Type ST) for connecting 16 and 25 mm² conductors to low-voltage circuit breakers.

Key features

  • Electrolytic copper, tin plated, brazed seam

Specifications

Material Electrolytic copper
Surface Tin plated
Barrel Brazed seam
Stud size (mm) 8
Pack qty 300
JOST 16-8 Wire range: 6 AWG / 16 mm² | Dimensions (mm): B 13.5, L 29.5, E 11.0, d 6.3, t 1.1
JOST 25-8 Wire range: 4 AWG / 25 mm² | Dimensions (mm): B 13.5, L 33.3, E 12.0, d 8.5, t 1.5
Fork TerminalsJeoneo
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOST Circuit Breaker Terminals, Type ST

Brand Jeoneo·Fork Terminals

Available part numbers (2)

JOST 16-8, JOST 25-8

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JOST 16-8Wire range: 6 AWG / 16 mm² | Dimensions (mm): B 13.5, L 29.5, E 11.0, d 6.3, t 1.1
JOST 25-8Wire range: 4 AWG / 25 mm² | Dimensions (mm): B 13.5, L 33.3, E 12.0, d 8.5, t 1.5
