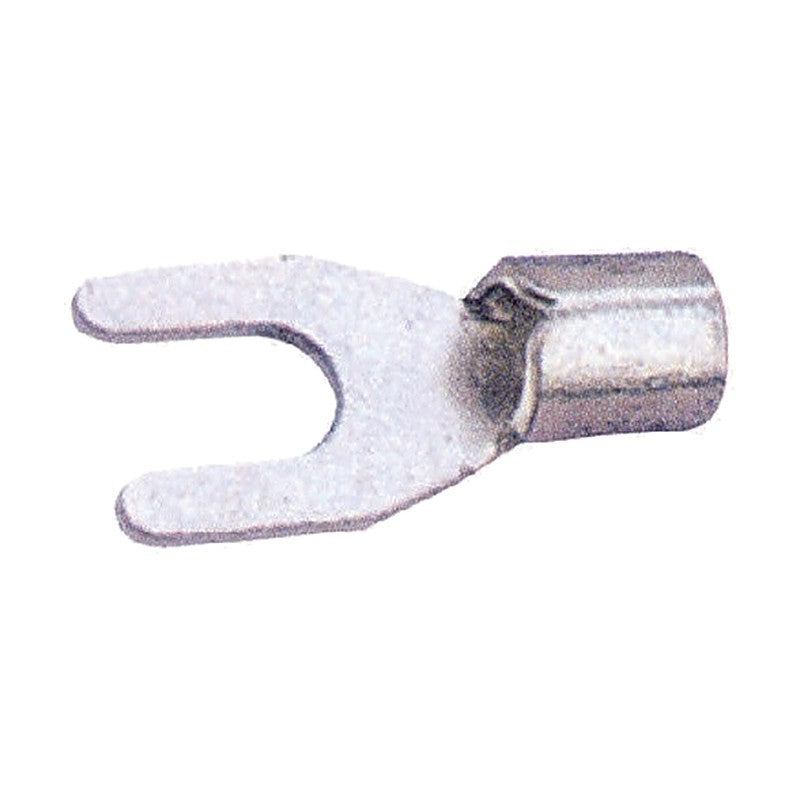

Jeoneo JOT Non-Insulated Fork Terminals, Electrolytic Copper
Jeoneo JOT Non-Insulated Fork Terminals, Electrolytic Copper
Non-insulated tin-plated electrolytic copper fork terminals for 0.75 to 10 mm² wire, with or without brazed seam.
Key features
- Electrolytic copper, tin plated
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| JOT 1.0-32 | Wire range: 26~22 AWG / 0.75, 1.0 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 5.9, L 14.5, E 5.5, d 1.7, t 0.65 | |
| JOT 1.5-32 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 5.9, L 14.0, E 4.5, d 2.0, t 0.65 | |
| JOT 1.5-43 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 15.5, E 4.5, d 2.0, t 0.65 | |
| JOT 1.5-55 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 16.0, E 4.5, d 2.0, t 0.65 | |
| JOT 2.5-32 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 15.3, E 5.0, d 2.4, t 0.65 | |
| JOT 2.5-43 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 15.5, E 5.0, d 2.4, t 0.65 | |
| JOT 2.5-55 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 16.0, E 5.0, d 2.4, t 0.65 | |
| JOT 4-44 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 18.0, E 7.0, d 3.0, t 0.75 | |
| JOT 4-55 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 18.0, E 7.0, d 3.0, t 0.75 | |
| JOT 6-44 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 19.3, E 7.0, d 3.6, t 0.8 | |
| JOT 6-55 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 9.2, L 19.3, E 7.0, d 3.6, t 0.8 | |
| JOT 10-6Y | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Pack qty: 500 | Dimensions (mm): B 11.5, L 25.0, E 8.5, d 4.7, t 0.9 |
Fork TerminalsJeoneo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOT Non-Insulated Fork Terminals, Electrolytic Copper
Available part numbers (12)
JOT 1.0-32, JOT 1.5-32, JOT 1.5-43, JOT 1.5-55, JOT 2.5-32, JOT 2.5-43, JOT 2.5-55, JOT 4-44, JOT 4-55, JOT 6-44 + 2 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Fork Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOT 1.0-32 | Wire range: 26~22 AWG / 0.75, 1.0 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 5.9, L 14.5, E 5.5, d 1.7, t 0.65 | ||
| JOT 1.5-32 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 5.9, L 14.0, E 4.5, d 2.0, t 0.65 | ||
| JOT 1.5-43 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 15.5, E 4.5, d 2.0, t 0.65 | ||
| JOT 1.5-55 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 16.0, E 4.5, d 2.0, t 0.65 | ||
| JOT 2.5-32 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 15.3, E 5.0, d 2.4, t 0.65 | ||
| JOT 2.5-43 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 15.5, E 5.0, d 2.4, t 0.65 | ||
| JOT 2.5-55 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 16.0, E 5.0, d 2.4, t 0.65 | ||
| JOT 4-44 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 18.0, E 7.0, d 3.0, t 0.75 | ||
| JOT 4-55 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 18.0, E 7.0, d 3.0, t 0.75 | ||
| JOT 6-44 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 19.3, E 7.0, d 3.6, t 0.8 | ||
| JOT 6-55 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 9.2, L 19.3, E 7.0, d 3.6, t 0.8 | ||
| JOT 10-6Y | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Pack qty: 500 | Dimensions (mm): B 11.5, L 25.0, E 8.5, d 4.7, t 0.9 |
Need a different model, or a part not listed here? Send us your parts list →
