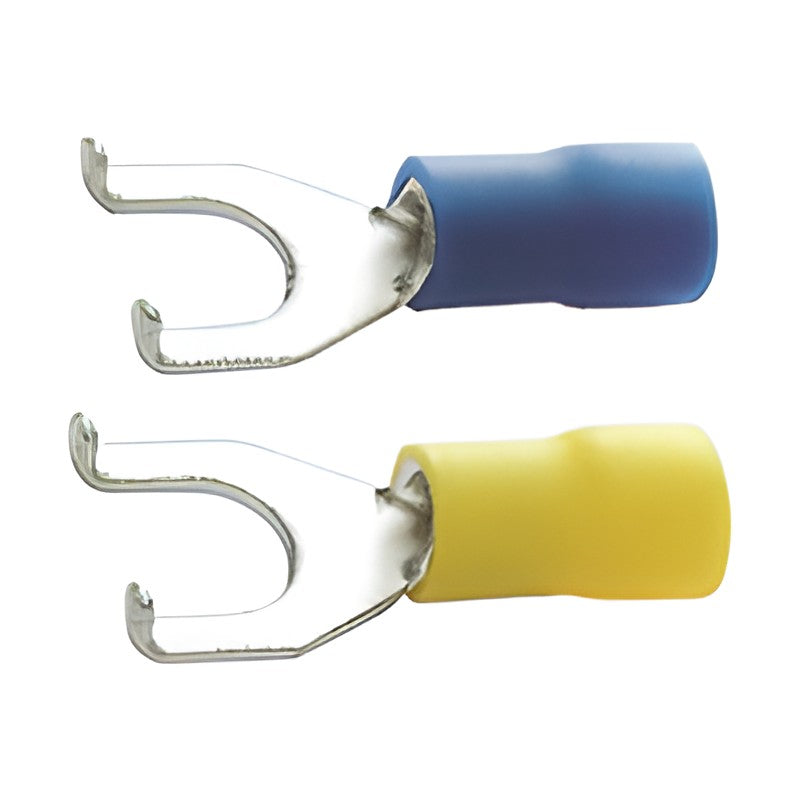

Jeoneo JPFT PVC-Insulated Flanged Spade Terminals

Jeoneo JPFT PVC-Insulated Flanged Spade Terminals

PVC-insulated copper flanged spade (locking fork) terminals for 0.5 to 6 mm² wire; W suffix = brazed seam.

Key features

  • Flanged fork tips for secure retention
  • PVC insulation rated 105 °C, UL94 V-0

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation PVC
Insulation temperature rating 105 °C
Flammability UL94 V-0
Color RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY
Pack qty 1,000
Jeoneo JPFT PVC-Insulated Flanged Spade Terminals
JPFT 153SY Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 18.1, D 6.1, t 0.7
JPFT 153Y Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 10, L 18.1, D 6.1, t 0.7
JPFT 154Y Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.3, D 6.1, t 0.7
JPFT 154LY Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 155Y Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 253SY Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 20.0, D 6.6, t 0.8
JPFT 253Y Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 10, L 20.0, D 6.6, t 0.8
JPFT 254Y Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.2, D 6.6, t 0.8
JPFT 254LY Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 255Y Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 464Y Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14, L 25.0, D 8.3, t 1.0
JPFT 465Y Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14, L 26.0, D 8.3, t 1.0
JPFT 153SYW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 18.1, D 6.1, t 0.7
JPFT 153YW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 10, L 18.1, D 6.1, t 0.7
JPFT 154YW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.3, D 6.1, t 0.7
JPFT 154LYW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 155YW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 253SYW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 20.0, D 6.6, t 0.8
JPFT 253YW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 10, L 20.0, D 6.6, t 0.8
JPFT 254YW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.2, D 6.6, t 0.8
JPFT 254LYW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 255YW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 464YW Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14, L 25.0, D 8.3, t 1.0
JPFT 465YW Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14, L 26.0, D 8.3, t 1.0
Fork TerminalsJeoneo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JPFT PVC-Insulated Flanged Spade Terminals

Brand Jeoneo·Fork Terminals

Available part numbers (24)

JPFT 153SY, JPFT 153Y, JPFT 154Y, JPFT 154LY, JPFT 155Y, JPFT 253SY, JPFT 253Y, JPFT 254Y, JPFT 254LY, JPFT 255Y + 14 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JPFT PVC-Insulated Flanged Spade Terminals
0 selected
RFQ List (0)
Product codeSpec
JPFT 153SYBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 18.1, D 6.1, t 0.7
JPFT 153YBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 10, L 18.1, D 6.1, t 0.7
JPFT 154YBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.3, D 6.1, t 0.7
JPFT 154LYBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 155YBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 253SYBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 20.0, D 6.6, t 0.8
JPFT 253YBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 10, L 20.0, D 6.6, t 0.8
JPFT 254YBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.2, D 6.6, t 0.8
JPFT 254LYBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 255YBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 464YBrazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14, L 25.0, D 8.3, t 1.0
JPFT 465YBrazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14, L 26.0, D 8.3, t 1.0
JPFT 153SYWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 18.1, D 6.1, t 0.7
JPFT 153YWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 10, L 18.1, D 6.1, t 0.7
JPFT 154YWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.3, D 6.1, t 0.7
JPFT 154LYWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 155YWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.1, t 0.7
JPFT 253SYWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 10, L 20.0, D 6.6, t 0.8
JPFT 253YWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 10, L 20.0, D 6.6, t 0.8
JPFT 254YWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 10, L 18.2, D 6.6, t 0.8
JPFT 254LYWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 255YWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 10, L 22.0, D 6.6, t 0.8
JPFT 464YWBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14, L 25.0, D 8.3, t 1.0
JPFT 465YWBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14, L 26.0, D 8.3, t 1.0
