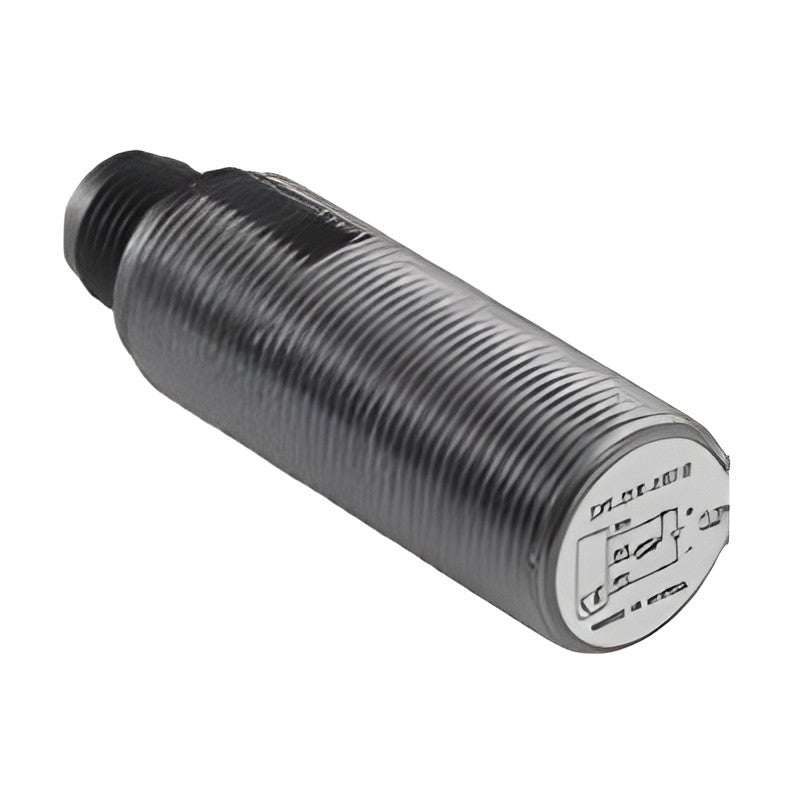

KOINO IPX DC 2-Wire Cylindrical Connector Inductive Proximity Sensors

KOINO IPX DC 2-Wire Cylindrical Connector Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, DC 2-wire, cylindrical, connector type, in M12/M18/M30 sizes.

Key features

  • DC 2-wire type
  • Shielded and non-shielded versions
  • IP67 protection
  • CE certified

Specifications

Rated voltage 24 VDC
Supply voltage 15-30 VDC
Control output current 3-100 mA (ON)
Leakage current 0.7 mA max. (OFF)
Hysteresis 10% of sensing distance max.
Protection circuits Surge, overcurrent
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 60947-5-2)
Connection Connector
Housing Brass, nickel plated; sensing face PBT
IPX-2D12-02A1R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO | Polarity: Polarized
IPX-2D12-04A1RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO | Polarity: Polarized
IPX-2D18-05A1R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D18-08A1RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO | Polarity: Polarized
IPX-2D30-10A1R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO | Polarity: Polarized
IPX-2D30-15A1RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO | Polarity: Polarized
IPX-2D12-02A2R Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC | Polarity: Polarized
IPX-2D12-04A2RN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC | Polarity: Polarized
IPX-2D18-05A2R Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D18-08A2RN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC | Polarity: Polarized
IPX-2D30-10A2R Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC | Polarity: Polarized
IPX-2D30-15A2RN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC | Polarity: Polarized
IPX-2D12-02A1RF Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO | Polarity: Non-polarized
IPX-2D12-04A1RNF Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO | Polarity: Non-polarized
IPX-2D18-05A1RF Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D18-08A1RNF Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-10A1RF Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-15A1RNF Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO | Polarity: Non-polarized
IPX-2D12-02A2RF Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC | Polarity: Non-polarized
IPX-2D12-04A2RNF Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC | Polarity: Non-polarized
IPX-2D18-05A2RF Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D18-08A2RNF Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-10A2RF Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-15A2RNF Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC | Polarity: Non-polarized
Proximity SensorsKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX DC 2-Wire Cylindrical Connector Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (24)

IPX-2D12-02A1R, IPX-2D12-04A1RN, IPX-2D18-05A1R, IPX-2D18-08A1RN, IPX-2D30-10A1R, IPX-2D30-15A1RN, IPX-2D12-02A2R, IPX-2D12-04A2RN, IPX-2D18-05A2R, IPX-2D18-08A2RN + 14 more — see full table ↓
