• KOINO IPX DC 2-Wire Cylindrical Wire-Connector Inductive Proximity Sensors
1 1

KOINO IPX DC 2-Wire Cylindrical Wire-Connector Inductive Proximity Sensors

KOINO IPX DC 2-Wire Cylindrical Wire-Connector Inductive Proximity Sensors

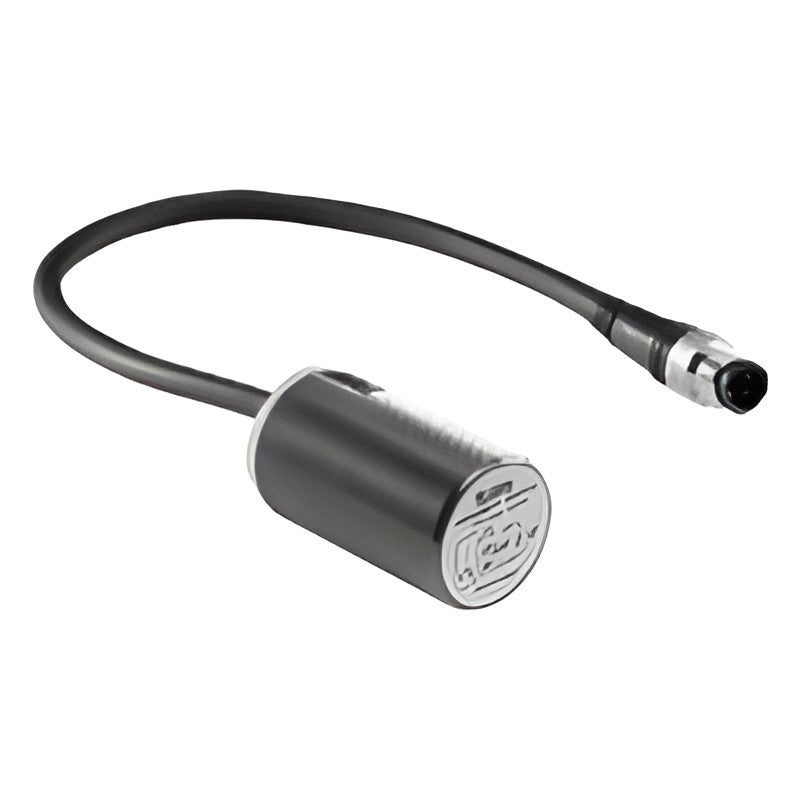

High-frequency oscillation inductive proximity sensors, DC 2-wire, cylindrical, wire connector type, in M12/M18/M30 sizes.

Key features

  • DC 2-wire type
  • Shielded and non-shielded versions
  • IP67 protection
  • CE certified

Specifications

Rated voltage 24 VDC
Supply voltage 15-30 VDC
Control output current 3-100 mA (ON)
Leakage current 0.7 mA max. (OFF)
Hysteresis 10% of sensing distance max.
Protection circuits Surge, overcurrent
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 60947-5-2)
Connection Wire with connector
Housing Brass, nickel plated; sensing face PBT
IPX-2D12-02A1W Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO | Polarity: Polarized
IPX-2D12-04A1WN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO | Polarity: Polarized
IPX-2D18-05A1W Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D18-08A1WN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO | Polarity: Polarized
IPX-2D30-10A1W Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO | Polarity: Polarized
IPX-2D30-15A1WN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO | Polarity: Polarized
IPX-2D12-02A2W Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC | Polarity: Polarized
IPX-2D12-04A2WN Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC | Polarity: Polarized
IPX-2D18-05A2W Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D18-08A2WN Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC | Polarity: Polarized
IPX-2D30-10A2W Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC | Polarity: Polarized
IPX-2D30-15A2WN Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC | Polarity: Polarized
IPX-2D12-02A1WF Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO | Polarity: Non-polarized
IPX-2D12-04A1WNF Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO | Polarity: Non-polarized
IPX-2D18-05A1WF Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D18-08A1WNF Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-10A1WF Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-15A1WNF Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO | Polarity: Non-polarized
IPX-2D12-02A2WF Diameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC | Polarity: Non-polarized
IPX-2D12-04A2WNF Diameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC | Polarity: Non-polarized
IPX-2D18-05A2WF Diameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D18-08A2WNF Diameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-10A2WF Diameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-15A2WNF Diameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC | Polarity: Non-polarized
Proximity SensorsKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX DC 2-Wire Cylindrical Wire-Connector Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (24)

IPX-2D12-02A1W, IPX-2D12-04A1WN, IPX-2D18-05A1W, IPX-2D18-08A1WN, IPX-2D30-10A1W, IPX-2D30-15A1WN, IPX-2D12-02A2W, IPX-2D12-04A2WN, IPX-2D18-05A2W, IPX-2D18-08A2WN + 14 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPX-2D12-02A1WDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO | Polarity: Polarized
IPX-2D12-04A1WNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO | Polarity: Polarized
IPX-2D18-05A1WDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D18-08A1WNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO | Polarity: Polarized
IPX-2D30-10A1WDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO | Polarity: Polarized
IPX-2D30-15A1WNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO | Polarity: Polarized
IPX-2D12-02A2WDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC | Polarity: Polarized
IPX-2D12-04A2WNDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC | Polarity: Polarized
IPX-2D18-05A2WDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D18-08A2WNDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC | Polarity: Polarized
IPX-2D30-10A2WDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC | Polarity: Polarized
IPX-2D30-15A2WNDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC | Polarity: Polarized
IPX-2D12-02A1WFDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NO | Polarity: Non-polarized
IPX-2D12-04A1WNFDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NO | Polarity: Non-polarized
IPX-2D18-05A1WFDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D18-08A1WNFDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-10A1WFDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-15A1WNFDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NO | Polarity: Non-polarized
IPX-2D12-02A2WFDiameter: M12 | Shielding: Shielded | Sensing distance: 2 mm | Output: NC | Polarity: Non-polarized
IPX-2D12-04A2WNFDiameter: M12 | Shielding: Non-shielded | Sensing distance: 4 mm | Output: NC | Polarity: Non-polarized
IPX-2D18-05A2WFDiameter: M18 | Shielding: Shielded | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D18-08A2WNFDiameter: M18 | Shielding: Non-shielded | Sensing distance: 8 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-10A2WFDiameter: M30 | Shielding: Shielded | Sensing distance: 10 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-15A2WNFDiameter: M30 | Shielding: Non-shielded | Sensing distance: 15 mm | Output: NC | Polarity: Non-polarized
