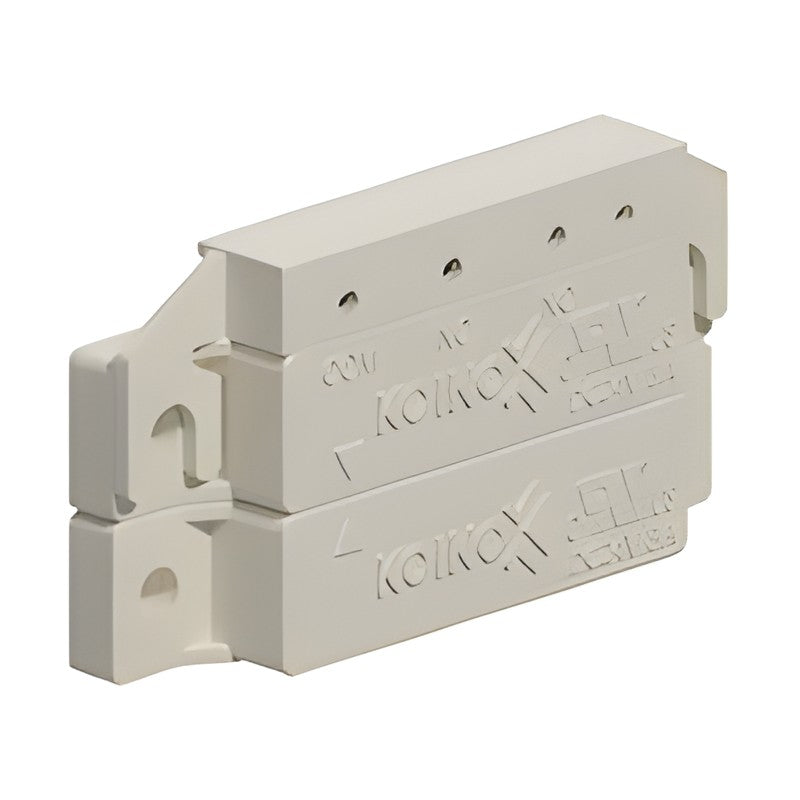

KOINO KMS-1C Magnetic Door Sensors

KOINO KMS-1C Magnetic Door Sensors

Magnetic door sensor whose contact changes state by the field of a separate magnet, with optional bracket and terminal cover.

Key features

  • Contact changes by magnetic force
  • Flame-retardant material
  • Bracket and terminal cover sold separately
  • UL and RoHS certified

Specifications

Contact 1C (NO/NC)
Rated current 3 A (resistive)
Rated voltage 250 VAC, 24 VDC
Contact resistance 50 mOhm max. (initial)
Operating distance 10 mm max. sensor to magnet
Insulation resistance 100 MOhm min. (500 VDC)
Operating temperature -25 to +50 C (no icing)
Electrical life 200,000 operations min.
Mechanical life 1,000,000 operations min.
KMS-1C Type: Set (contact sensor + magnet)
KMS-1C-S Type: Contact sensor only
KMS-1C-B1 Type: Bracket (sold separately)
KMS-1C-TC Type: Terminal cover (sold separately)
Door SwitchesKOINO
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KMS-1C Magnetic Door Sensors

Brand KOINO·Door Switches

Available part numbers (4)

KMS-1C, KMS-1C-S, KMS-1C-B1, KMS-1C-TC

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KMS-1CType: Set (contact sensor + magnet)
KMS-1C-SType: Contact sensor only
KMS-1C-B1Type: Bracket (sold separately)
KMS-1C-TCType: Terminal cover (sold separately)
