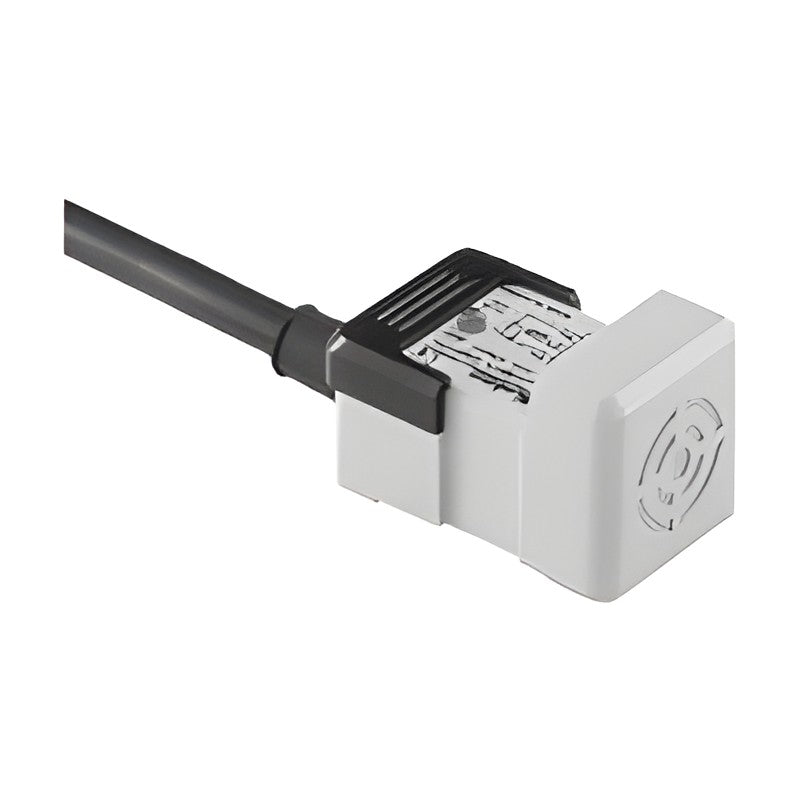

KOINO IPX DC 2-Wire Rectangular Cable Inductive Proximity Sensors

KOINO IPX DC 2-Wire Rectangular Cable Inductive Proximity Sensors

High-frequency oscillation inductive proximity sensors, DC 2-wire, rectangular, cable type, in 17/25/30/40 mm square sizes.

Key features

  • DC 2-wire type
  • Rectangular housings
  • IP67 protection
  • CE certified

Specifications

Rated voltage 24 VDC
Supply voltage 15-30 VDC
Control output current 3-100 mA (ON)
Leakage current 0.7 mA max. (OFF)
Hysteresis 10% of sensing distance max.
Protection circuits Surge, overcurrent
Indicator Red LED
Protection IP67
Operating temperature -25 to +70 C
Certification CE (EN 60947-5-2)
Connection Cable, 2 m
Housing PBT
IPX-2D17-05A1S Size: 17 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D25-05A1S Size: 25 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D30-10A1S Size: 30 mm square | Sensing distance: 10 mm | Output: NO | Polarity: Polarized
IPX-2D40-20A1S Size: 40 mm square | Sensing distance: 20 mm | Output: NO | Polarity: Polarized
IPX-2D17-05A2S Size: 17 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D25-05A2S Size: 25 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D30-10A2S Size: 30 mm square | Sensing distance: 10 mm | Output: NC | Polarity: Polarized
IPX-2D40-20A2S Size: 40 mm square | Sensing distance: 20 mm | Output: NC | Polarity: Polarized
IPX-2D17-05A1SF Size: 17 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D25-05A1SF Size: 25 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-10A1SF Size: 30 mm square | Sensing distance: 10 mm | Output: NO | Polarity: Non-polarized
IPX-2D40-20A1SF Size: 40 mm square | Sensing distance: 20 mm | Output: NO | Polarity: Non-polarized
IPX-2D17-05A2SF Size: 17 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D25-05A2SF Size: 25 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-10A2SF Size: 30 mm square | Sensing distance: 10 mm | Output: NC | Polarity: Non-polarized
IPX-2D40-20A2SF Size: 40 mm square | Sensing distance: 20 mm | Output: NC | Polarity: Non-polarized
Proximity SensorsKOINO
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX DC 2-Wire Rectangular Cable Inductive Proximity Sensors

Brand KOINO·Proximity Sensors

Available part numbers (16)

IPX-2D17-05A1S, IPX-2D25-05A1S, IPX-2D30-10A1S, IPX-2D40-20A1S, IPX-2D17-05A2S, IPX-2D25-05A2S, IPX-2D30-10A2S, IPX-2D40-20A2S, IPX-2D17-05A1SF, IPX-2D25-05A1SF + 6 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPX-2D17-05A1SSize: 17 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D25-05A1SSize: 25 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Polarized
IPX-2D30-10A1SSize: 30 mm square | Sensing distance: 10 mm | Output: NO | Polarity: Polarized
IPX-2D40-20A1SSize: 40 mm square | Sensing distance: 20 mm | Output: NO | Polarity: Polarized
IPX-2D17-05A2SSize: 17 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D25-05A2SSize: 25 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Polarized
IPX-2D30-10A2SSize: 30 mm square | Sensing distance: 10 mm | Output: NC | Polarity: Polarized
IPX-2D40-20A2SSize: 40 mm square | Sensing distance: 20 mm | Output: NC | Polarity: Polarized
IPX-2D17-05A1SFSize: 17 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D25-05A1SFSize: 25 mm square | Sensing distance: 5 mm | Output: NO | Polarity: Non-polarized
IPX-2D30-10A1SFSize: 30 mm square | Sensing distance: 10 mm | Output: NO | Polarity: Non-polarized
IPX-2D40-20A1SFSize: 40 mm square | Sensing distance: 20 mm | Output: NO | Polarity: Non-polarized
IPX-2D17-05A2SFSize: 17 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D25-05A2SFSize: 25 mm square | Sensing distance: 5 mm | Output: NC | Polarity: Non-polarized
IPX-2D30-10A2SFSize: 30 mm square | Sensing distance: 10 mm | Output: NC | Polarity: Non-polarized
IPX-2D40-20A2SFSize: 40 mm square | Sensing distance: 20 mm | Output: NC | Polarity: Non-polarized
