KOINO KTM-3M On-Delay Timing Relays (1 s-60 min, 14-pin)

KOINO KTM-3M On-Delay Timing Relays (1 s-60 min, 14-pin)

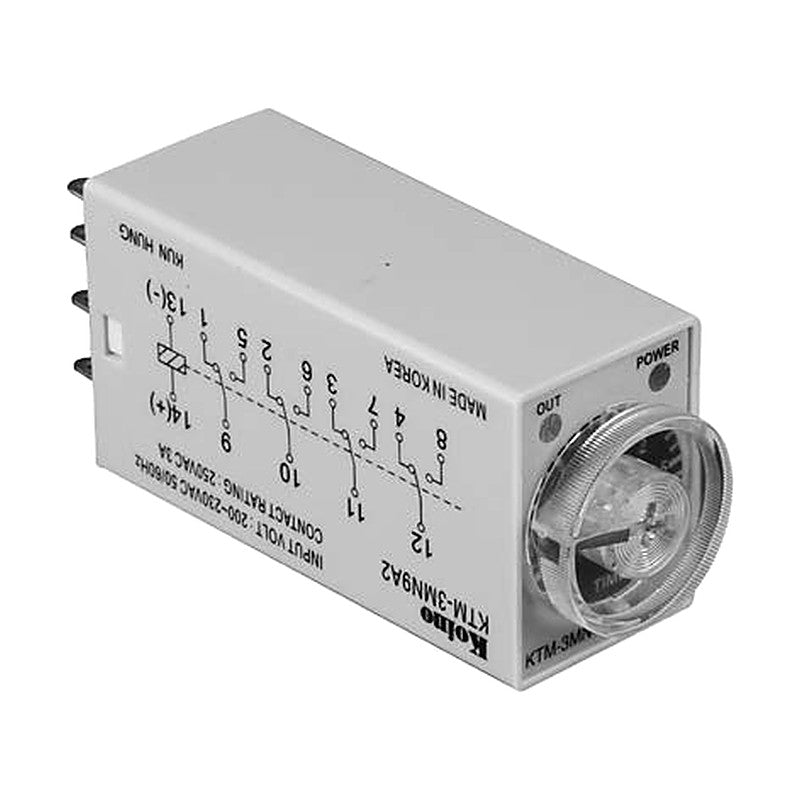

KOINO KTM-3M miniature on-delay timing relay in a 14-pin relay housing, with 11 fixed time ranges from 1 s to 60 min, 8 supply voltages and 4-pin (4C) or 2-pin (2C) output versions.

Key features

  • Ultra-compact ON DELAY timer in a standard 14-pin relay footprint, mates with KOINO sockets KH-RS-14M / KH-RS-14N
  • Time range fixed by model: 1, 3, 6, 10, 30, 60 s or 3, 5, 10, 30, 60 min; set-time error within +/-5%
  • Supply voltage by model: 100-120 / 200-230 / 240VAC or 12 / 24 / 48 / 110 / 125VDC
  • Output: 4-pin version 4C (4a4b) 220VAC 3A, 2-pin version 2C (2a2b) 220VAC 5A (resistive)
  • Red indicator/power LED flashes at 0.5 s while timing, yellow output LED lights when the output operates
  • High-reliability relay contacts; mechanical life 10 million, electrical 200,000 ops

Specifications

Operation ON DELAY
Voltage tolerance +/-10% of rated
Power consumption AC approx. 3VA, DC approx. 1.5W
Reset time 100 ms max.
Set error +/-5%, 50 ms max. of full scale
Dielectric strength 2,000VAC 50/60Hz for 1 min
Shock approx. 30G (300 m/s2)
Protection IP40
Operating temperature -10 to +50 C (no freezing), 35-85% RH
Housing Case ABS ivory, base PC glass; approx. 40 g
Source KOINO general catalog 5th ed., p. 559-583
KTM-3M1S-A1 Time range: 1 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-A12 Time range: 1 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-A2 Time range: 1 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-A22 Time range: 1 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-A3 Time range: 1 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-A32 Time range: 1 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D1 Time range: 1 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D12 Time range: 1 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D2 Time range: 1 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D22 Time range: 1 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D3 Time range: 1 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D32 Time range: 1 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D4 Time range: 1 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D42 Time range: 1 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D5 Time range: 1 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D52 Time range: 1 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-A1 Time range: 3 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-A12 Time range: 3 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-A2 Time range: 3 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-A22 Time range: 3 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-A3 Time range: 3 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-A32 Time range: 3 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D1 Time range: 3 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D12 Time range: 3 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D2 Time range: 3 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D22 Time range: 3 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D3 Time range: 3 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D32 Time range: 3 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D4 Time range: 3 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D42 Time range: 3 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D5 Time range: 3 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D52 Time range: 3 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-A1 Time range: 6 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-A12 Time range: 6 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-A2 Time range: 6 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-A22 Time range: 6 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-A3 Time range: 6 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-A32 Time range: 6 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D1 Time range: 6 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D12 Time range: 6 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D2 Time range: 6 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D22 Time range: 6 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D3 Time range: 6 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D32 Time range: 6 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D4 Time range: 6 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D42 Time range: 6 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D5 Time range: 6 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D52 Time range: 6 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-A1 Time range: 10 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-A12 Time range: 10 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-A2 Time range: 10 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-A22 Time range: 10 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-A3 Time range: 10 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-A32 Time range: 10 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D1 Time range: 10 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D12 Time range: 10 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D2 Time range: 10 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D22 Time range: 10 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D3 Time range: 10 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D32 Time range: 10 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D4 Time range: 10 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D42 Time range: 10 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D5 Time range: 10 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D52 Time range: 10 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-A1 Time range: 30 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-A12 Time range: 30 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-A2 Time range: 30 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-A22 Time range: 30 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-A3 Time range: 30 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-A32 Time range: 30 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D1 Time range: 30 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D12 Time range: 30 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D2 Time range: 30 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D22 Time range: 30 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D3 Time range: 30 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D32 Time range: 30 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D4 Time range: 30 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D42 Time range: 30 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D5 Time range: 30 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D52 Time range: 30 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-A1 Time range: 60 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-A12 Time range: 60 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-A2 Time range: 60 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-A22 Time range: 60 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-A3 Time range: 60 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-A32 Time range: 60 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D1 Time range: 60 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D12 Time range: 60 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D2 Time range: 60 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D22 Time range: 60 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D3 Time range: 60 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D32 Time range: 60 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D4 Time range: 60 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D42 Time range: 60 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D5 Time range: 60 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D52 Time range: 60 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-A1 Time range: 3 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-A12 Time range: 3 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-A2 Time range: 3 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-A22 Time range: 3 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-A3 Time range: 3 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-A32 Time range: 3 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D1 Time range: 3 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D12 Time range: 3 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D2 Time range: 3 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D22 Time range: 3 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D3 Time range: 3 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D32 Time range: 3 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D4 Time range: 3 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D42 Time range: 3 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D5 Time range: 3 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D52 Time range: 3 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-A1 Time range: 5 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-A12 Time range: 5 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-A2 Time range: 5 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-A22 Time range: 5 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-A3 Time range: 5 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-A32 Time range: 5 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D1 Time range: 5 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D12 Time range: 5 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D2 Time range: 5 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D22 Time range: 5 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D3 Time range: 5 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D32 Time range: 5 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D4 Time range: 5 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D42 Time range: 5 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D5 Time range: 5 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D52 Time range: 5 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-A1 Time range: 10 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-A12 Time range: 10 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-A2 Time range: 10 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-A22 Time range: 10 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-A3 Time range: 10 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-A32 Time range: 10 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D1 Time range: 10 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D12 Time range: 10 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D2 Time range: 10 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D22 Time range: 10 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D3 Time range: 10 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D32 Time range: 10 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D4 Time range: 10 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D42 Time range: 10 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D5 Time range: 10 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D52 Time range: 10 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-A1 Time range: 30 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-A12 Time range: 30 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-A2 Time range: 30 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-A22 Time range: 30 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-A3 Time range: 30 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-A32 Time range: 30 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D1 Time range: 30 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D12 Time range: 30 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D2 Time range: 30 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D22 Time range: 30 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D3 Time range: 30 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D32 Time range: 30 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D4 Time range: 30 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D42 Time range: 30 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D5 Time range: 30 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D52 Time range: 30 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-A1 Time range: 60 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-A12 Time range: 60 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-A2 Time range: 60 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-A22 Time range: 60 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-A3 Time range: 60 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-A32 Time range: 60 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D1 Time range: 60 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D12 Time range: 60 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D2 Time range: 60 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D22 Time range: 60 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D3 Time range: 60 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D32 Time range: 60 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D4 Time range: 60 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D42 Time range: 60 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D5 Time range: 60 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D52 Time range: 60 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
TimersKOINO
176 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KTM-3M On-Delay Timing Relays (1 s-60 min, 14-pin)

Brand KOINO·Timers

Available part numbers (176)

KTM-3M1S-A1, KTM-3M1S-A12, KTM-3M1S-A2, KTM-3M1S-A22, KTM-3M1S-A3, KTM-3M1S-A32, KTM-3M1S-D1, KTM-3M1S-D12, KTM-3M1S-D2, KTM-3M1S-D22 + 166 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTM-3M1S-A1Time range: 1 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-A12Time range: 1 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-A2Time range: 1 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-A22Time range: 1 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-A3Time range: 1 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-A32Time range: 1 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D1Time range: 1 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D12Time range: 1 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D2Time range: 1 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D22Time range: 1 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D3Time range: 1 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D32Time range: 1 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D4Time range: 1 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D42Time range: 1 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M1S-D5Time range: 1 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M1S-D52Time range: 1 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-A1Time range: 3 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-A12Time range: 3 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-A2Time range: 3 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-A22Time range: 3 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-A3Time range: 3 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-A32Time range: 3 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D1Time range: 3 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D12Time range: 3 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D2Time range: 3 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D22Time range: 3 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D3Time range: 3 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D32Time range: 3 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D4Time range: 3 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D42Time range: 3 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3S-D5Time range: 3 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3S-D52Time range: 3 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-A1Time range: 6 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-A12Time range: 6 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-A2Time range: 6 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-A22Time range: 6 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-A3Time range: 6 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-A32Time range: 6 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D1Time range: 6 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D12Time range: 6 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D2Time range: 6 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D22Time range: 6 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D3Time range: 6 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D32Time range: 6 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D4Time range: 6 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D42Time range: 6 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M6S-D5Time range: 6 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M6S-D52Time range: 6 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-A1Time range: 10 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-A12Time range: 10 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-A2Time range: 10 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-A22Time range: 10 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-A3Time range: 10 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-A32Time range: 10 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D1Time range: 10 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D12Time range: 10 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D2Time range: 10 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D22Time range: 10 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D3Time range: 10 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D32Time range: 10 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D4Time range: 10 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D42Time range: 10 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10S-D5Time range: 10 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10S-D52Time range: 10 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-A1Time range: 30 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-A12Time range: 30 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-A2Time range: 30 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-A22Time range: 30 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-A3Time range: 30 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-A32Time range: 30 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D1Time range: 30 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D12Time range: 30 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D2Time range: 30 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D22Time range: 30 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D3Time range: 30 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D32Time range: 30 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D4Time range: 30 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D42Time range: 30 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30S-D5Time range: 30 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30S-D52Time range: 30 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-A1Time range: 60 s max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-A12Time range: 60 s max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-A2Time range: 60 s max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-A22Time range: 60 s max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-A3Time range: 60 s max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-A32Time range: 60 s max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D1Time range: 60 s max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D12Time range: 60 s max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D2Time range: 60 s max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D22Time range: 60 s max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D3Time range: 60 s max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D32Time range: 60 s max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D4Time range: 60 s max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D42Time range: 60 s max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60S-D5Time range: 60 s max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60S-D52Time range: 60 s max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-A1Time range: 3 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-A12Time range: 3 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-A2Time range: 3 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-A22Time range: 3 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-A3Time range: 3 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-A32Time range: 3 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D1Time range: 3 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D12Time range: 3 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D2Time range: 3 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D22Time range: 3 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D3Time range: 3 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D32Time range: 3 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D4Time range: 3 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D42Time range: 3 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M3M-D5Time range: 3 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M3M-D52Time range: 3 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-A1Time range: 5 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-A12Time range: 5 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-A2Time range: 5 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-A22Time range: 5 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-A3Time range: 5 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-A32Time range: 5 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D1Time range: 5 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D12Time range: 5 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D2Time range: 5 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D22Time range: 5 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D3Time range: 5 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D32Time range: 5 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D4Time range: 5 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D42Time range: 5 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M5M-D5Time range: 5 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M5M-D52Time range: 5 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-A1Time range: 10 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-A12Time range: 10 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-A2Time range: 10 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-A22Time range: 10 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-A3Time range: 10 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-A32Time range: 10 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D1Time range: 10 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D12Time range: 10 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D2Time range: 10 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D22Time range: 10 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D3Time range: 10 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D32Time range: 10 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D4Time range: 10 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D42Time range: 10 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M10M-D5Time range: 10 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M10M-D52Time range: 10 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-A1Time range: 30 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-A12Time range: 30 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-A2Time range: 30 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-A22Time range: 30 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-A3Time range: 30 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-A32Time range: 30 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D1Time range: 30 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D12Time range: 30 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D2Time range: 30 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D22Time range: 30 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D3Time range: 30 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D32Time range: 30 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D4Time range: 30 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D42Time range: 30 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M30M-D5Time range: 30 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M30M-D52Time range: 30 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-A1Time range: 60 min max. | Supply voltage: 100-120VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-A12Time range: 60 min max. | Supply voltage: 100-120VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-A2Time range: 60 min max. | Supply voltage: 200-230VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-A22Time range: 60 min max. | Supply voltage: 200-230VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-A3Time range: 60 min max. | Supply voltage: 240VAC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-A32Time range: 60 min max. | Supply voltage: 240VAC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D1Time range: 60 min max. | Supply voltage: 12VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D12Time range: 60 min max. | Supply voltage: 12VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D2Time range: 60 min max. | Supply voltage: 24VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D22Time range: 60 min max. | Supply voltage: 24VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D3Time range: 60 min max. | Supply voltage: 48VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D32Time range: 60 min max. | Supply voltage: 48VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D4Time range: 60 min max. | Supply voltage: 110VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D42Time range: 60 min max. | Supply voltage: 110VDC | Pin type: 2-pin plug-in (2C, 5A)
KTM-3M60M-D5Time range: 60 min max. | Supply voltage: 125VDC | Pin type: 4-pin plug-in (4C, 3A)
KTM-3M60M-D52Time range: 60 min max. | Supply voltage: 125VDC | Pin type: 2-pin plug-in (2C, 5A)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Controllers & Meters →
