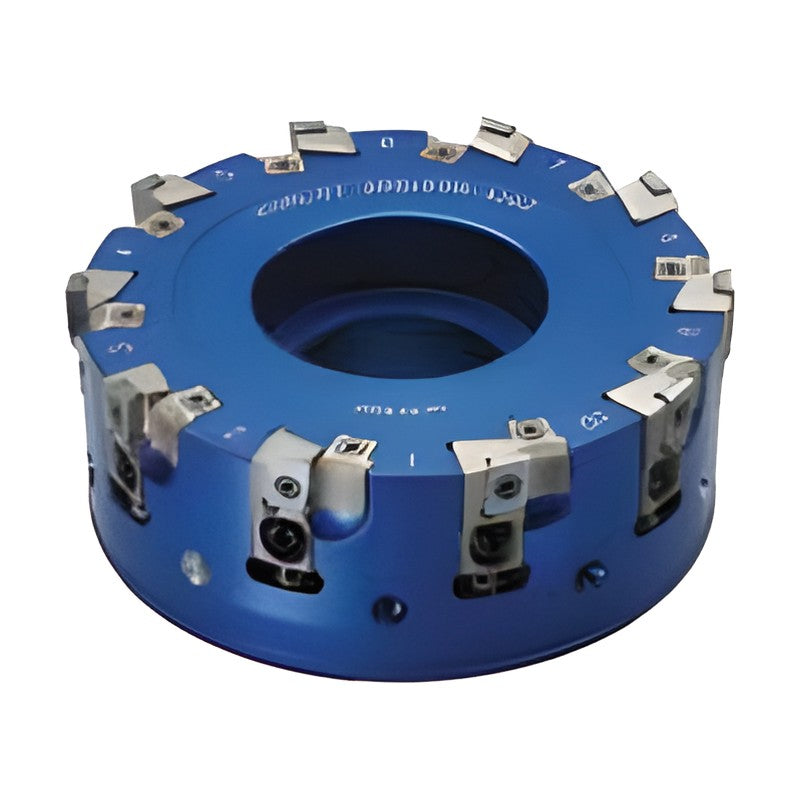

Korloy Aero Mill APD(M)-A PCD Face Milling Cutter

Korloy Aero Mill APD(M)-A PCD Face Milling Cutter

Aluminum-body 90° face milling cutter with adjustable cartridges for CDEW PCD and carbide inserts, for roughing and finishing of aluminum alloys.

Key features

  • Adjustable cutting height for finishing aluminum alloys
  • Accepts PCD and carbide CDEW inserts
  • Chip cover design for durability and chip evacuation
  • Aluminum alloy body for high-speed machining
  • Central through-coolant
  • Balance level G2.5 with balancing screw

Specifications

Approach angle 90°
Insert CDEW1204
Mounting Arbor (inch; (M) = metric)
Cutter diameter range Ø80 - Ø315 mm
Max. ap (mm) 10
APD(M)080R/L-A6Z No. of teeth: 6 | ØD (mm): 80 | ØD1 (mm): 76 | Ød inch (metric) (mm): 25.4 (27) | a (mm): 9.5 (12.4) | b (mm): 6 (7) | E (mm): 25 (22) | F (mm): 50 | Max. ap (mm): 10 | Max. rpm: 16000 | Weight (kg): 0.75 | Fig.: 1
APD(M)100R/L-A6Z No. of teeth: 6 | ØD (mm): 100 | ØD1 (mm): 95 | Ød inch (metric) (mm): 31.75 (32) | a (mm): 12.7 (14.4) | b (mm): 8 (8) | E (mm): 32 (28) | F (mm): 50 | Max. ap (mm): 10 | Max. rpm: 15000 | Weight (kg): 0.95 | Fig.: 2
APD(M)125R/L-A8Z No. of teeth: 8 | ØD (mm): 125 | ØD1 (mm): 120 | Ød inch (metric) (mm): 38.1 (40) | a (mm): 15.9 (16.4) | b (mm): 10 (9) | E (mm): 38 (30) | F (mm): 63 | Max. ap (mm): 10 | Max. rpm: 12500 | Weight (kg): 1.8 | Fig.: 2
APD(M)160R/L-A10Z No. of teeth: 10 | ØD (mm): 160 | ØD1 (mm): 155 | Ød inch (metric) (mm): 50.8 (40) | a (mm): 19.0 (16.4) | b (mm): 11 (9) | E (mm): 38 (30) | F (mm): 63 | Max. ap (mm): 10 | Max. rpm: 10000 | Weight (kg): 2.9 | Fig.: 2
APD(M)200R/L-A12Z No. of teeth: 12 | ØD (mm): 200 | ØD1 (mm): 195 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 (14) | E (mm): 38 (38) | F (mm): 63 | Max. ap (mm): 10 | Max. rpm: 8000 | Weight (kg): 4.0 | Fig.: 3
APD(M)250R/L-A16Z No. of teeth: 16 | ØD (mm): 250 | ØD1 (mm): 245 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 (14) | E (mm): 38 (38) | F (mm): 63 | Max. ap (mm): 10 | Max. rpm: 6500 | Weight (kg): 6.3 | Fig.: 3
APD(M)315R/L-A18Z No. of teeth: 18 | ØD (mm): 315 | ØD1 (mm): 310 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 (14) | E (mm): 38 (38) | F (mm): 80 | Max. ap (mm): 10 | Max. rpm: 5000 | Weight (kg): 11.3 | Fig.: 4
