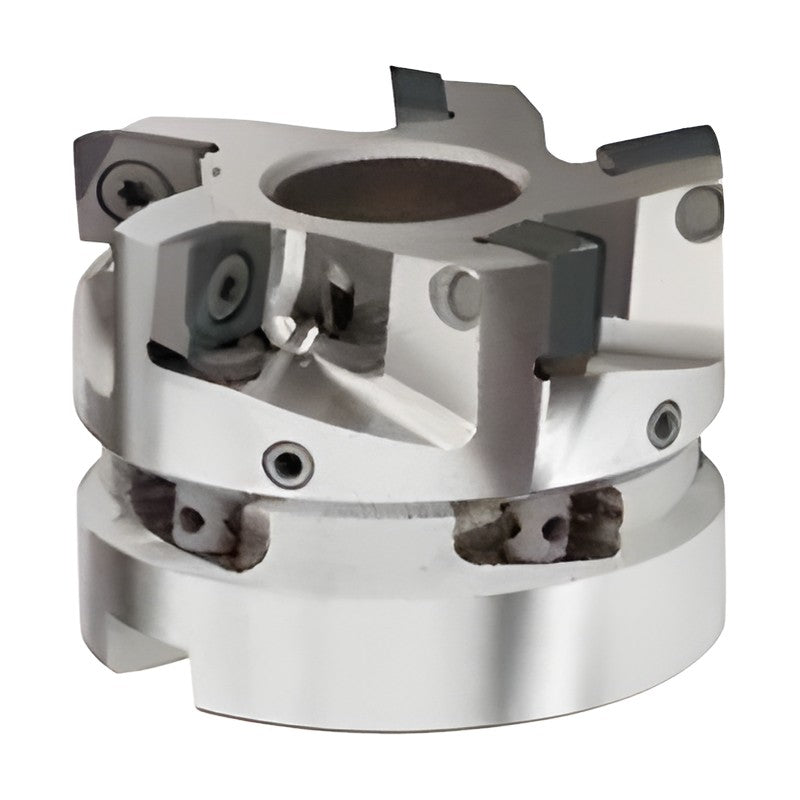

Korloy Aero Mill Mini MAPD PCD Face Milling Cutter

Korloy Aero Mill Mini MAPD PCD Face Milling Cutter

Compact steel-body 90° arbor-type face milling cutter for SNEW PCD and carbide inserts, for roughing and finishing of aluminum alloys.

Key features

  • Accepts PCD and carbide SNEW inserts
  • Fine adjustment ±0.1 mm in 2 µm steps
  • Through-coolant directly onto the edge
  • Simplified cutter structure with wide chip pockets
  • Balance level G2.5 with balancing screw

Specifications

Approach angle 90°
Insert SNEW09T3
Mounting Arbor (FMC16 / FMC22)
Coolant Through coolant (H)
F (mm) 40
Max. ap (mm) 9.5
MAPD040HR/L-Z4 No. of teeth: 4 | ØD (mm): 40 | ØD2 (mm): 34 | Ød (mm): 16 | a (mm): 8.4 | b (mm): 5.6 | E (mm): 18 | F (mm): 40 | Ød1 (mm): 9 | Ød2 (mm): 14 | Max. ap (mm): 9.5 | Max. rpm: 24,000 | Weight (kg): 0.24
MAPD050HR/L-Z5 No. of teeth: 5 | ØD (mm): 50 | ØD2 (mm): 42 | Ød (mm): 22 | a (mm): 10.4 | b (mm): 6.3 | E (mm): 20 | F (mm): 40 | Ød1 (mm): 11 | Ød2 (mm): 18 | Max. ap (mm): 9.5 | Max. rpm: 22,000 | Weight (kg): 0.35
MAPD063HR/L-Z6 No. of teeth: 6 | ØD (mm): 63 | ØD2 (mm): 42 | Ød (mm): 22 | a (mm): 10.4 | b (mm): 6.3 | E (mm): 20 | F (mm): 40 | Ød1 (mm): 11 | Ød2 (mm): 18 | Max. ap (mm): 9.5 | Max. rpm: 20,000 | Weight (kg): 0.65
Milling CuttersKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Aero Mill Mini MAPD PCD Face Milling Cutter

Brand Korloy·Milling Cutters

Available part numbers (3)

MAPD040HR/L-Z4, MAPD050HR/L-Z5, MAPD063HR/L-Z6

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MAPD040HR/L-Z4No. of teeth: 4 | ØD (mm): 40 | ØD2 (mm): 34 | Ød (mm): 16 | a (mm): 8.4 | b (mm): 5.6 | E (mm): 18 | F (mm): 40 | Ød1 (mm): 9 | Ød2 (mm): 14 | Max. ap (mm): 9.5 | Max. rpm: 24,000 | Weight (kg): 0.24
MAPD050HR/L-Z5No. of teeth: 5 | ØD (mm): 50 | ØD2 (mm): 42 | Ød (mm): 22 | a (mm): 10.4 | b (mm): 6.3 | E (mm): 20 | F (mm): 40 | Ød1 (mm): 11 | Ød2 (mm): 18 | Max. ap (mm): 9.5 | Max. rpm: 22,000 | Weight (kg): 0.35
MAPD063HR/L-Z6No. of teeth: 6 | ØD (mm): 63 | ØD2 (mm): 42 | Ød (mm): 22 | a (mm): 10.4 | b (mm): 6.3 | E (mm): 20 | F (mm): 40 | Ød1 (mm): 11 | Ød2 (mm): 18 | Max. ap (mm): 9.5 | Max. rpm: 20,000 | Weight (kg): 0.65
