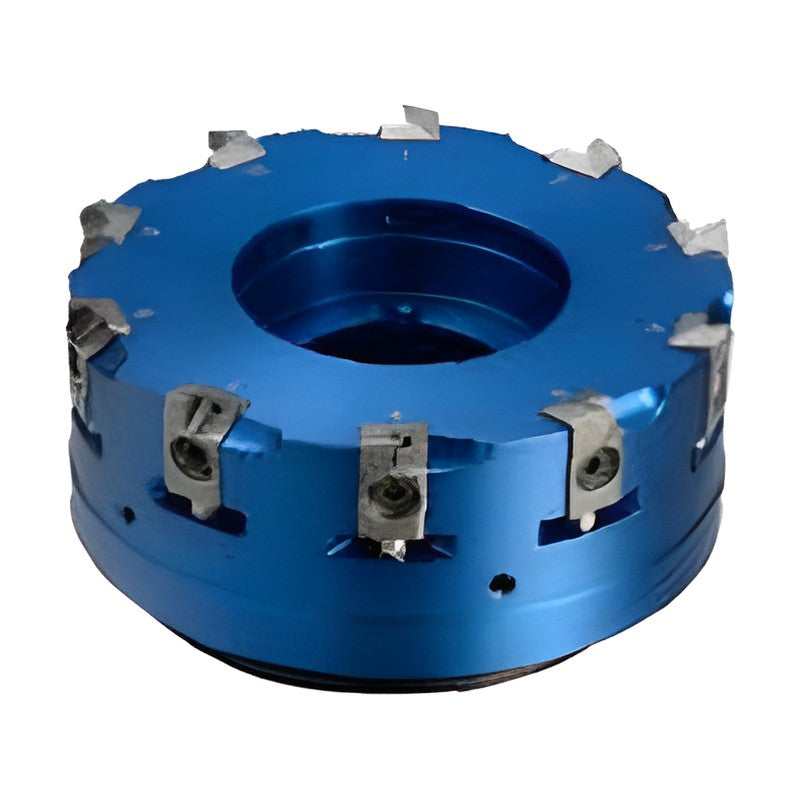

Korloy Aero Mill Plus APD(M)-PB PCD Blade Face Milling Cutter

Korloy Aero Mill Plus APD(M)-PB PCD Blade Face Milling Cutter

Blade-type 90° aluminum-body face milling cutter for BAMPR PCD blades, for medium cutting to finishing of aluminum alloys.

Key features

  • Blade-type simple geometry without chip cover, variable number of edges
  • Direct coolant injection onto each blade
  • Spanner adjustment for 1 µm fine control, 50% shorter setting time
  • Lightweight coolant bolts reduce cutter weight by 30%

Specifications

Approach angle 90°
Blade BAMPR
Mounting Arbor (inch; (M) = metric)
Cutter diameter range Ø80 - Ø315 mm
Max. ap (mm) 5
APD(M)080R/L-PB6Z No. of teeth: 6 | Max. no. of teeth: 10 | ØD (mm): 80 | ØD1 (mm): 77 | Ød inch (metric) (mm): 25.4 (27) | a (mm): 9.5 (12.4) | b (mm): 6 (7) | E (mm): 23.5 | F (mm): 50 | Max. ap (mm): 5 | Weight (kg): 0.55 | Fig.: 1
APD(M)080R/L-PB8Z No. of teeth: 8 | Max. no. of teeth: 10 | ØD (mm): 80 | ØD1 (mm): 77 | Ød inch (metric) (mm): 25.4 (27) | a (mm): 9.5 (12.4) | b (mm): 6 (7) | E (mm): 23.5 | F (mm): 50 | Max. ap (mm): 5 | Weight (kg): 0.55 | Fig.: 1
APD(M)100R/L-PB6Z No. of teeth: 6 | Max. no. of teeth: 12 | ØD (mm): 100 | ØD1 (mm): 97 | Ød inch (metric) (mm): 31.75 (32) | a (mm): 12.7 (14.4) | b (mm): 8 | E (mm): 34 (32) | F (mm): 50 | Max. ap (mm): 5 | Weight (kg): 0.92 | Fig.: 2
APD(M)100R/L-PB8Z No. of teeth: 8 | Max. no. of teeth: 12 | ØD (mm): 100 | ØD1 (mm): 97 | Ød inch (metric) (mm): 31.75 (32) | a (mm): 12.7 (14.4) | b (mm): 8 | E (mm): 34 (32) | F (mm): 50 | Max. ap (mm): 5 | Weight (kg): 0.92 | Fig.: 2
APD(M)125R/L-PB8Z No. of teeth: 8 | Max. no. of teeth: 14 | ØD (mm): 125 | ØD1 (mm): 122 | Ød inch (metric) (mm): 38.1 (40) | a (mm): 15.9 (16.4) | b (mm): 10 (9) | E (mm): 40 (35) | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 1.9 | Fig.: 2
APD(M)125R/L-PB10Z No. of teeth: 10 | Max. no. of teeth: 14 | ØD (mm): 125 | ØD1 (mm): 122 | Ød inch (metric) (mm): 38.1 (40) | a (mm): 15.9 (16.4) | b (mm): 10 (9) | E (mm): 40 (35) | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 1.9 | Fig.: 2
APD(M)160R/L-PB10Z No. of teeth: 10 | Max. no. of teeth: 20 | ØD (mm): 160 | ØD1 (mm): 157 | Ød inch (metric) (mm): 50.8 (40) | a (mm): 19.0 (16.4) | b (mm): 11 (9) | E (mm): 41 (35) | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 3.3 | Fig.: 2
APD(M)160R/L-PB12Z No. of teeth: 12 | Max. no. of teeth: 20 | ØD (mm): 160 | ØD1 (mm): 157 | Ød inch (metric) (mm): 50.8 (40) | a (mm): 19.0 (16.4) | b (mm): 11 (9) | E (mm): 41 (35) | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 3.3 | Fig.: 2
APD(M)200R/L-PB12Z No. of teeth: 12 | Max. no. of teeth: 26 | ØD (mm): 200 | ØD1 (mm): 197 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 | E (mm): 40 | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 4.0 | Fig.: 3
APD(M)250R/L-PB16Z No. of teeth: 16 | Max. no. of teeth: 32 | ØD (mm): 250 | ØD1 (mm): 247 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 | E (mm): 40 | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 6.5 | Fig.: 3
APD(M)315R/L-PB18Z No. of teeth: 18 | Max. no. of teeth: 42 | ØD (mm): 315 | ØD1 (mm): 312 | Ød inch (metric) (mm): 47.625 (60) | a (mm): 25.4 (25.7) | b (mm): 14 | E (mm): 40 | F (mm): 63 | Max. ap (mm): 5 | Weight (kg): 11.3 | Fig.: 4
