• Korloy Auto Tools ISO Turning Insert CCGT-KF (2021 Catalog Additions)
1 1

Korloy Auto Tools ISO Turning Insert CCGT-KF (2021 Catalog Additions)

Korloy Auto Tools ISO Turning Insert CCGT-KF (2021 Catalog Additions)

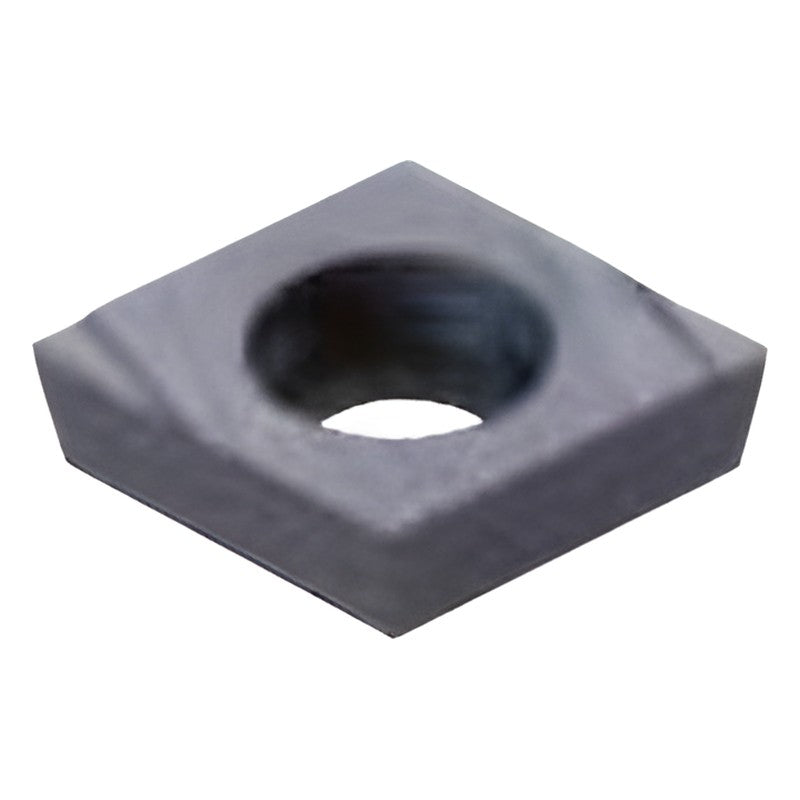

Precision-ground 80° rhombic positive CCGT insert with KF chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

  • KF chip breaker for finishing with sharp cutting edge
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape C (80° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker KF
Application Finishing
CCGT0301003R-KF PC5300 Hand: Right | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Grade: PC5300 | Stock: Yes
CCGT0301003R-KF PC8110 Hand: Right | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Grade: PC8110 | Stock: Yes
CCGT030101R-KF PC5300 Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030101R-KF PC8110 Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030102R-KF PC5300 Hand: Right | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.5 | Grade: PC5300 | Stock: Yes
CCGT030102R-KF PC8110 Hand: Right | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.5 | Grade: PC8110 | Stock: Yes
CCGT030104R-KF PC5300 Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030104R-KF PC8110 Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT0401003R-KF PC5300 Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT0401003R-KF PC8110 Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT040101R-KF PC5300 Hand: Right | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040101R-KF PC8110 Hand: Right | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040102R-KF PC5300 Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.3 | Grade: PC5300 | Stock: Yes
CCGT040102R-KF PC8110 Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.3 | Grade: PC8110 | Stock: Yes
CCGT040104R-KF PC5300 Hand: Right | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040104R-KF PC8110 Hand: Right | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT0602003R-KF Hand: Right | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T3003R-KF Hand: Right | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT0301003L-KF PC5300 Hand: Left | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT0301003L-KF PC8110 Hand: Left | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030101L-KF PC5300 Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030101L-KF PC8110 Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030102L-KF PC5300 Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030102L-KF PC8110 Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030104L-KF PC5300 Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030104L-KF PC8110 Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT0401003L-KF PC5300 Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT0401003L-KF PC8110 Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040101L-KF PC5300 Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040101L-KF PC8110 Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040102L-KF PC5300 Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040102L-KF PC8110 Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040104L-KF PC5300 Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040104L-KF PC8110 Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT0602003L-KF Hand: Left | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T3003L-KF Hand: Left | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert CCGT-KF (2021 Catalog Additions)

Brand Korloy·Turning Inserts

Available part numbers (36)

CCGT0301003R-KF PC5300, CCGT0301003R-KF PC8110, CCGT030101R-KF PC5300, CCGT030101R-KF PC8110, CCGT030102R-KF PC5300, CCGT030102R-KF PC8110, CCGT030104R-KF PC5300, CCGT030104R-KF PC8110, CCGT0401003R-KF PC5300, CCGT0401003R-KF PC8110 + 26 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCGT0301003R-KF PC5300Hand: Right | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Grade: PC5300 | Stock: Yes
CCGT0301003R-KF PC8110Hand: Right | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Grade: PC8110 | Stock: Yes
CCGT030101R-KF PC5300Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030101R-KF PC8110Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030102R-KF PC5300Hand: Right | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.5 | Grade: PC5300 | Stock: Yes
CCGT030102R-KF PC8110Hand: Right | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Cutting edge length l (mm): 3.5 | Grade: PC8110 | Stock: Yes
CCGT030104R-KF PC5300Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030104R-KF PC8110Hand: Right | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT0401003R-KF PC5300Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT0401003R-KF PC8110Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT040101R-KF PC5300Hand: Right | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040101R-KF PC8110Hand: Right | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040102R-KF PC5300Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.3 | Grade: PC5300 | Stock: Yes
CCGT040102R-KF PC8110Hand: Right | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Cutting edge length l (mm): 4.3 | Grade: PC8110 | Stock: Yes
CCGT040104R-KF PC5300Hand: Right | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040104R-KF PC8110Hand: Right | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT0602003R-KFHand: Right | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T3003R-KFHand: Right | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT0301003L-KF PC5300Hand: Left | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT0301003L-KF PC8110Hand: Left | Cutting edge length l (mm): 3.6 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030101L-KF PC5300Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030101L-KF PC8110Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030102L-KF PC5300Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030102L-KF PC8110Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT030104L-KF PC5300Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC5300 | Stock: Yes
CCGT030104L-KF PC8110Hand: Left | Cutting edge length l (mm): 3.5 | Inscribed circle Ød (mm): 3.5 | Thickness t (mm): 1.39 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 1.9 | Grade: PC8110 | Stock: Yes
CCGT0401003L-KF PC5300Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT0401003L-KF PC8110Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040101L-KF PC5300Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040101L-KF PC8110Hand: Left | Cutting edge length l (mm): 4.4 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040102L-KF PC5300Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040102L-KF PC8110Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT040104L-KF PC5300Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
CCGT040104L-KF PC8110Hand: Left | Cutting edge length l (mm): 4.3 | Inscribed circle Ød (mm): 4.3 | Thickness t (mm): 1.79 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
CCGT0602003L-KFHand: Left | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T3003L-KFHand: Left | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
