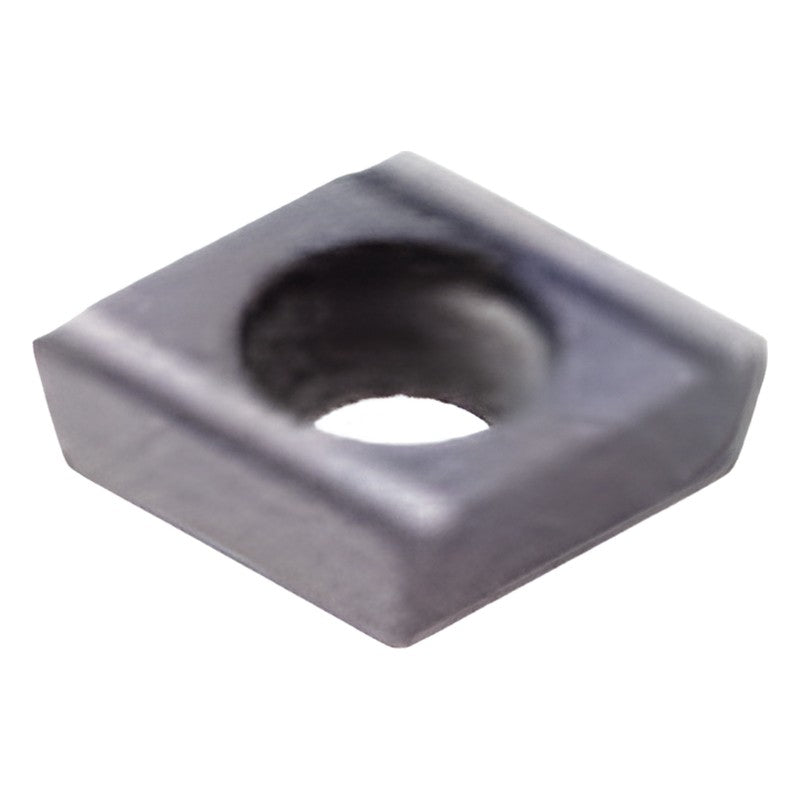

Korloy Auto Tools ISO Turning Insert CCGT-KM

Korloy Auto Tools ISO Turning Insert CCGT-KM

Precision-ground 80° rhombic positive CCGT insert with KM chip breaker for Swiss-type / automatic lathe turning (medium to finishing).

Key features

  • KM chip breaker for medium-to-finishing cutting
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape C (80° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker KM
Application Medium to finishing
Grades PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01
Stock Not marked as stock item
CCGT0602005R-KM Hand: Right | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT060201R-KM Hand: Right | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT060202R-KM Hand: Right | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T3005R-KM Hand: Right | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T301R-KM Hand: Right | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T302R-KM Hand: Right | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT0602005L-KM Hand: Left | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT060201L-KM Hand: Left | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT060202L-KM Hand: Left | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T3005L-KM Hand: Left | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T301L-KM Hand: Left | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T302L-KM Hand: Left | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
