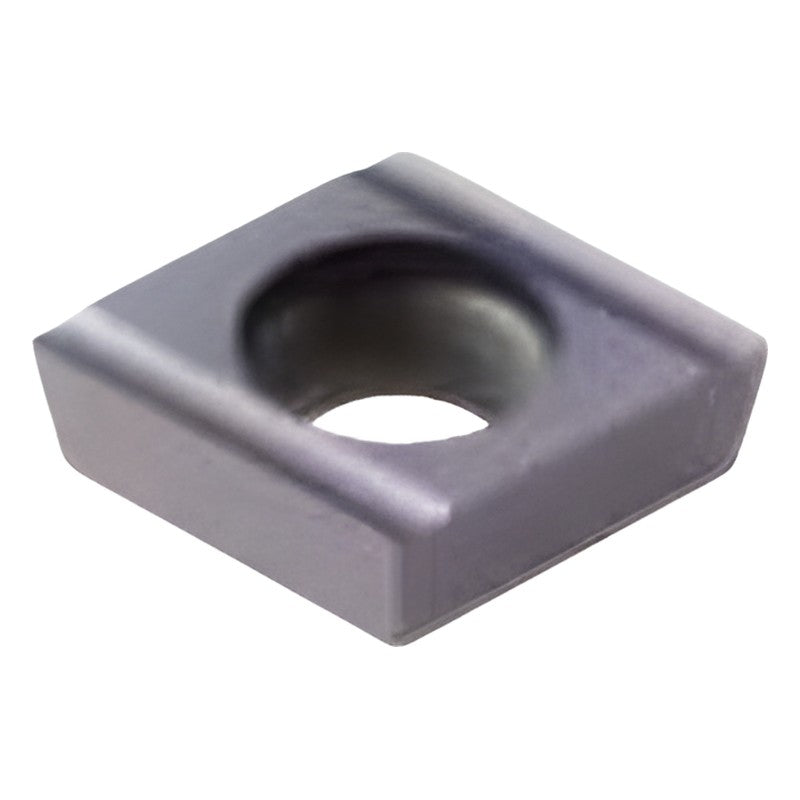

Korloy Auto Tools ISO Turning Insert CCGT-KM (2021 Catalog Additions)

Precision-ground 80° rhombic positive CCGT insert with KM chip breaker for Swiss-type / automatic lathe turning (medium to finishing).

Key features

KM chip breaker for medium-to-finishing cutting
Positive 7° relief for low cutting force on small parts
Precise nose R with minus tolerance (MF types)
Sharp edges for chip control and surface roughness on small diameters
For precision electrical/electronic and medical components

Specifications

Insert shape	C (80° rhombic)
Relief angle	7°
Tolerance class	G
Chip breaker	KM
Application	Medium to finishing
Stock	Yes

CCGT0602003R-KM PC5300		Hand: Right \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
CCGT0602003R-KM PC8110		Hand: Right \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
CCGT060204R-KM PC5300		Hand: Right \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
CCGT060204R-KM PC8110		Hand: Right \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
CCGT09T3003R-KM PC5300		Hand: Right \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
CCGT09T3003R-KM PC8110		Hand: Right \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
CCGT09T304R-KM PC5300		Hand: Right \| Cutting edge length l (mm): 9.2 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
CCGT09T304R-KM PC8110		Hand: Right \| Cutting edge length l (mm): 9.2 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
CCGT0602003L-KM PC5300		Hand: Left \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
CCGT0602003L-KM PC8110		Hand: Left \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
CCGT060204L-KM PC5300		Hand: Left \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
CCGT060204L-KM PC8110		Hand: Left \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
CCGT09T3003L-KM PC5300		Hand: Left \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
CCGT09T3003L-KM PC8110		Hand: Left \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes

Turning InsertsKorloy

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert CCGT-KM (2021 Catalog Additions)

Brand Korloy·Turning Inserts

Available part numbers (14)

CCGT0602003R-KM PC5300, CCGT0602003R-KM PC8110, CCGT060204R-KM PC5300, CCGT060204R-KM PC8110, CCGT09T3003R-KM PC5300, CCGT09T3003R-KM PC8110, CCGT09T304R-KM PC5300, CCGT09T304R-KM PC8110, CCGT0602003L-KM PC5300, CCGT0602003L-KM PC8110 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CCGT0602003R-KM PC5300	Hand: Right \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	CCGT0602003R-KM PC8110	Hand: Right \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	CCGT060204R-KM PC5300	Hand: Right \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	CCGT060204R-KM PC8110	Hand: Right \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	CCGT09T3003R-KM PC5300	Hand: Right \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	CCGT09T3003R-KM PC8110	Hand: Right \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
	CCGT09T304R-KM PC5300	Hand: Right \| Cutting edge length l (mm): 9.2 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	CCGT09T304R-KM PC8110	Hand: Right \| Cutting edge length l (mm): 9.2 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
	CCGT0602003L-KM PC5300	Hand: Left \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	CCGT0602003L-KM PC8110	Hand: Left \| Cutting edge length l (mm): 6.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	CCGT060204L-KM PC5300	Hand: Left \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	CCGT060204L-KM PC8110	Hand: Left \| Cutting edge length l (mm): 6.2 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	CCGT09T3003L-KM PC5300	Hand: Left \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	CCGT09T3003L-KM PC8110	Hand: Left \| Cutting edge length l (mm): 9.8 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
