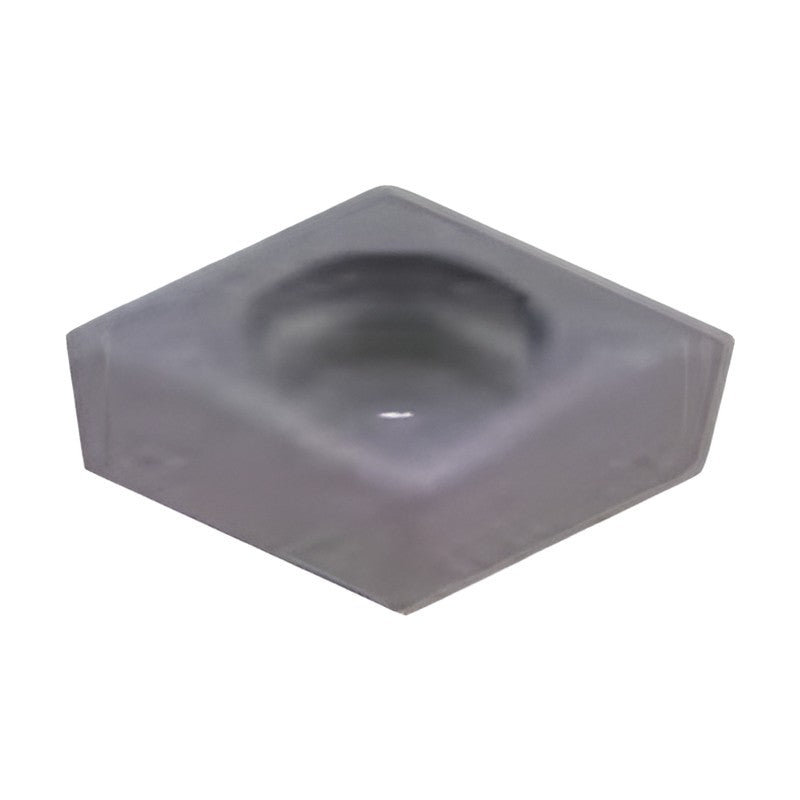

Korloy Auto Tools ISO Turning Insert CCGT-VP1

Korloy Auto Tools ISO Turning Insert CCGT-VP1

Precision-ground 80° rhombic positive CCGT insert with VP1 chip breaker for Swiss-type / automatic lathe turning (finishing / medium cutting).

Key features

  • VP1 chip breaker for medium cutting with edge toughness
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape C (80° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker VP1
Application Finishing / medium cutting
Hand Neutral
Stock Yes
CCGT60201-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT60201-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
CCGT60201-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT60201-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
CCGT60201-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
CCGT60202-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT60202-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
CCGT60202-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT60202-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
CCGT60202-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
CCGT60204-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT60204-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
CCGT60204-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT60204-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
CCGT60204-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
CCGT09T301-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T301-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8105 | Stock: Yes
CCGT09T301-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T301-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8115 | Stock: Yes
CCGT09T301-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: H01 | Stock: Yes
CCGT09T302-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T302-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8105 | Stock: Yes
CCGT09T302-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T302-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8115 | Stock: Yes
CCGT09T302-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: H01 | Stock: Yes
CCGT09T304-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T304-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8105 | Stock: Yes
CCGT09T304-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T304-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8115 | Stock: Yes
CCGT09T304-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: H01 | Stock: Yes
CCGT060201MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT060201MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT060202MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT060202MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT060204MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT060204MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT09T301MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT09T301MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT09T302MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT09T302MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT09T304MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.3 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT09T304MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.3 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
Turning InsertsKorloy
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert CCGT-VP1

Brand Korloy·Turning Inserts

Available part numbers (42)

CCGT60201-VP1 PC5300, CCGT60201-VP1 PC8105, CCGT60201-VP1 PC8110, CCGT60201-VP1 PC8115, CCGT60201-VP1 H01, CCGT60202-VP1 PC5300, CCGT60202-VP1 PC8105, CCGT60202-VP1 PC8110, CCGT60202-VP1 PC8115, CCGT60202-VP1 H01 + 32 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCGT60201-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT60201-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
CCGT60201-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT60201-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
CCGT60201-VP1 H01Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
CCGT60202-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT60202-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
CCGT60202-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT60202-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
CCGT60202-VP1 H01Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
CCGT60204-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT60204-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
CCGT60204-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT60204-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
CCGT60204-VP1 H01Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
CCGT09T301-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T301-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8105 | Stock: Yes
CCGT09T301-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T301-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8115 | Stock: Yes
CCGT09T301-VP1 H01Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grade: H01 | Stock: Yes
CCGT09T302-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T302-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8105 | Stock: Yes
CCGT09T302-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T302-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8115 | Stock: Yes
CCGT09T302-VP1 H01Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grade: H01 | Stock: Yes
CCGT09T304-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T304-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8105 | Stock: Yes
CCGT09T304-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T304-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8115 | Stock: Yes
CCGT09T304-VP1 H01Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Grade: H01 | Stock: Yes
CCGT060201MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT060201MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 6.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT060202MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT060202MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 6.4 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT060204MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT060204MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT09T301MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT09T301MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT09T302MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT09T302MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
CCGT09T304MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.3 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
CCGT09T304MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.3 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
