Korloy Auto Tools ISO Turning Insert DCET-KM

Korloy Auto Tools ISO Turning Insert DCET-KM

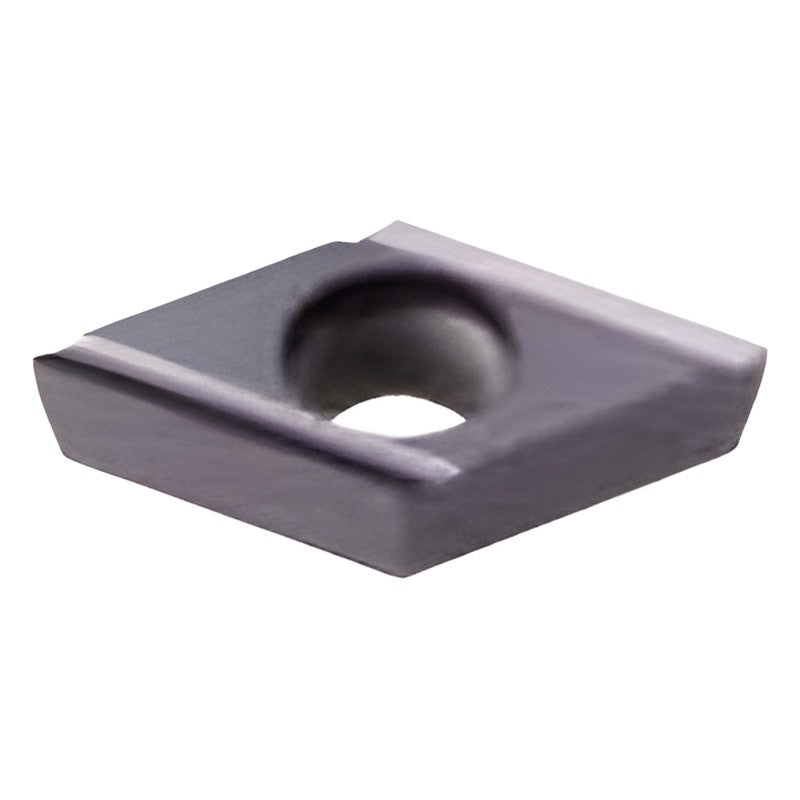

Precision-ground 55° rhombic positive DCET insert with KM chip breaker for Swiss-type / automatic lathe turning (medium to finishing).

Key features

  • KM chip breaker for medium-to-finishing cutting
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape D (55° rhombic)
Relief angle 7°
Tolerance class E
Chip breaker KM
Application Medium to finishing
Nose R tolerance Minus (MF, high precision)
Stock Yes
DCET0702005MFR-KM PC5300 Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET0702005MFR-KM PC8110 Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070201MFR-KM PC5300 Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070201MFR-KM PC8110 Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070202MFR-KM PC5300 Hand: Right | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Cutting edge length l (mm): 7.8 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070202MFR-KM PC8110 Hand: Right | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Cutting edge length l (mm): 7.8 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T3005MFR-KM PC8110 Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T301MFR-KM PC5300 Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T301MFR-KM PC8110 Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T302MFR-KM PC5300 Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T302MFR-KM PC8110 Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET0702005MFL-KM PC5300 Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET0702005MFL-KM PC8110 Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070201MFL-KM PC5300 Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070201MFL-KM PC8110 Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070202MFL-KM PC5300 Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070202MFL-KM PC8110 Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T3005MFL-KM PC5300 Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T3005MFL-KM PC8110 Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T301MFL-KM PC5300 Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T301MFL-KM PC8110 Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T302MFL-KM PC5300 Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T302MFL-KM PC8110 Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
Turning InsertsKorloy
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert DCET-KM

Brand Korloy·Turning Inserts

Available part numbers (23)

DCET0702005MFR-KM PC5300, DCET0702005MFR-KM PC8110, DCET070201MFR-KM PC5300, DCET070201MFR-KM PC8110, DCET070202MFR-KM PC5300, DCET070202MFR-KM PC8110, DCET11T3005MFR-KM PC8110, DCET11T301MFR-KM PC5300, DCET11T301MFR-KM PC8110, DCET11T302MFR-KM PC5300 + 13 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCET0702005MFR-KM PC5300Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET0702005MFR-KM PC8110Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070201MFR-KM PC5300Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070201MFR-KM PC8110Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070202MFR-KM PC5300Hand: Right | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Cutting edge length l (mm): 7.8 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070202MFR-KM PC8110Hand: Right | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Cutting edge length l (mm): 7.8 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T3005MFR-KM PC8110Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T301MFR-KM PC5300Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T301MFR-KM PC8110Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T302MFR-KM PC5300Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T302MFR-KM PC8110Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET0702005MFL-KM PC5300Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET0702005MFL-KM PC8110Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070201MFL-KM PC5300Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070201MFL-KM PC8110Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET070202MFL-KM PC5300Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET070202MFL-KM PC8110Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T3005MFL-KM PC5300Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T3005MFL-KM PC8110Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T301MFL-KM PC5300Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T301MFL-KM PC8110Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCET11T302MFL-KM PC5300Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCET11T302MFL-KM PC8110Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
