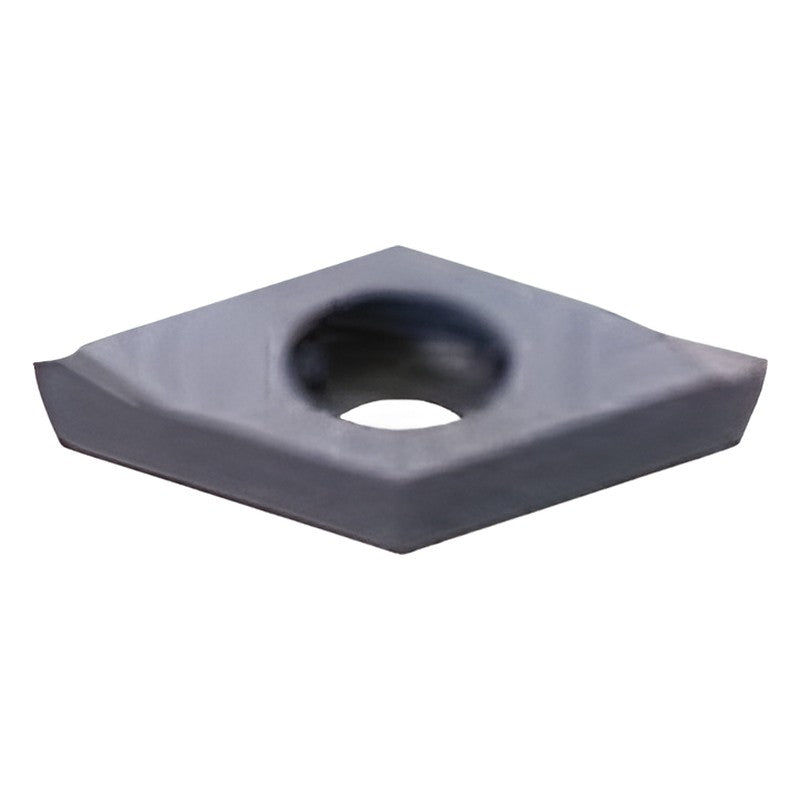

Korloy Auto Tools ISO Turning Insert DCGT-KF (2021 Catalog Additions)

Precision-ground 55° rhombic positive DCGT insert with KF chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

KF chip breaker for finishing with sharp cutting edge
Positive 7° relief for low cutting force on small parts
Precise nose R with minus tolerance (MF types)
Sharp edges for chip control and surface roughness on small diameters
For precision electrical/electronic and medical components

Specifications

Insert shape	D (55° rhombic)
Relief angle	7°
Tolerance class	G
Chip breaker	KF
Application	Finishing
Stock	Yes

DCGT0702003R-KF PC5300		Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 80° \| Grade: PC5300 \| Stock: Yes
DCGT0702003R-KF PC8110		Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 80° \| Grade: PC8110 \| Stock: Yes
DCGT070204R-KF PC5300		Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
DCGT070204R-KF PC8110		Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
DCGT11T3003R-KF PC5300		Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
DCGT11T3003R-KF PC8110		Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
DCGT11T304R-KF PC5300		Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
DCGT11T304R-KF PC8110		Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
DCGT0702003L-KF PC5300		Hand: Left \| Cutting edge length l (mm): 7.8 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Thickness t (mm): 2.38 \| Inscribed circle Ød (mm): 6.35 \| Grade: PC5300 \| Stock: Yes
DCGT0702003L-KF PC8110		Hand: Left \| Cutting edge length l (mm): 7.8 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Thickness t (mm): 2.38 \| Inscribed circle Ød (mm): 6.35 \| Grade: PC8110 \| Stock: Yes
DCGT070204L-KF PC5300		Hand: Left \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
DCGT070204L-KF PC8110		Hand: Left \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
DCGT11T3003L-KF PC5300		Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
DCGT11T3003L-KF PC8110		Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
DCGT11T304L-KF PC5300		Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
DCGT11T304L-KF PC8110		Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes

Turning InsertsKorloy

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert DCGT-KF (2021 Catalog Additions)

Brand Korloy·Turning Inserts

Available part numbers (16)

DCGT0702003R-KF PC5300, DCGT0702003R-KF PC8110, DCGT070204R-KF PC5300, DCGT070204R-KF PC8110, DCGT11T3003R-KF PC5300, DCGT11T3003R-KF PC8110, DCGT11T304R-KF PC5300, DCGT11T304R-KF PC8110, DCGT0702003L-KF PC5300, DCGT0702003L-KF PC8110 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	DCGT0702003R-KF PC5300	Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 80° \| Grade: PC5300 \| Stock: Yes
	DCGT0702003R-KF PC8110	Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 80° \| Grade: PC8110 \| Stock: Yes
	DCGT070204R-KF PC5300	Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	DCGT070204R-KF PC8110	Hand: Right \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	DCGT11T3003R-KF PC5300	Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	DCGT11T3003R-KF PC8110	Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
	DCGT11T304R-KF PC5300	Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	DCGT11T304R-KF PC8110	Hand: Right \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
	DCGT0702003L-KF PC5300	Hand: Left \| Cutting edge length l (mm): 7.8 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Thickness t (mm): 2.38 \| Inscribed circle Ød (mm): 6.35 \| Grade: PC5300 \| Stock: Yes
	DCGT0702003L-KF PC8110	Hand: Left \| Cutting edge length l (mm): 7.8 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 2.8 \| Thickness t (mm): 2.38 \| Inscribed circle Ød (mm): 6.35 \| Grade: PC8110 \| Stock: Yes
	DCGT070204L-KF PC5300	Hand: Left \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	DCGT070204L-KF PC8110	Hand: Left \| Cutting edge length l (mm): 7.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 2.38 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	DCGT11T3003L-KF PC5300	Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	DCGT11T3003L-KF PC8110	Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.03 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
	DCGT11T304L-KF PC5300	Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC5300 \| Stock: Yes
	DCGT11T304L-KF PC8110	Hand: Left \| Cutting edge length l (mm): 11.6 \| Inscribed circle Ød (mm): 9.525 \| Thickness t (mm): 3.97 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 4.4 \| Grade: PC8110 \| Stock: Yes
