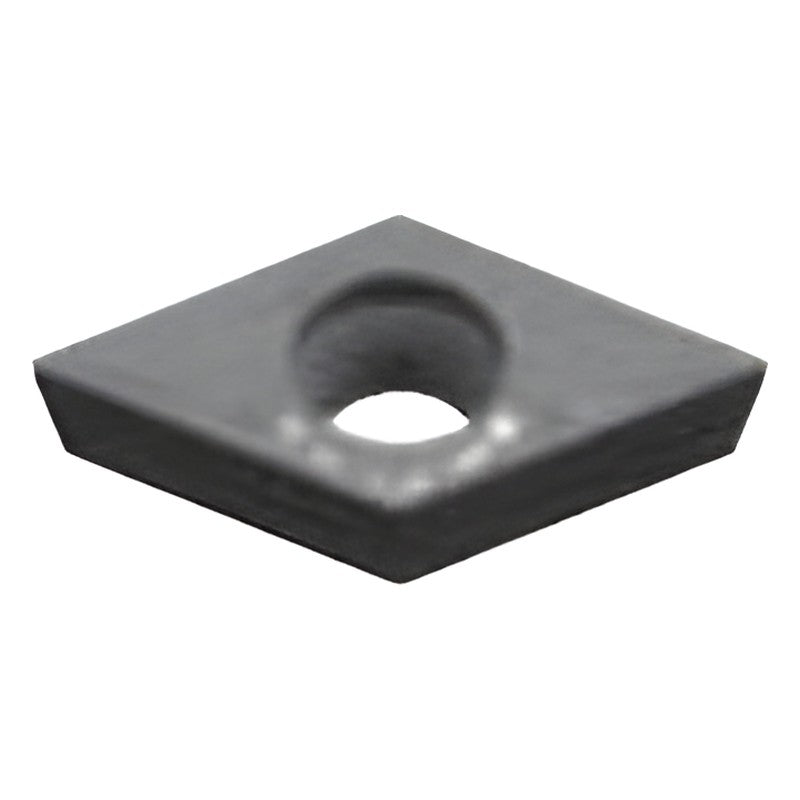

Korloy Auto Tools ISO Turning Insert DCGT-MS

Korloy Auto Tools ISO Turning Insert DCGT-MS

Precision-ground 55° rhombic positive DCGT insert with MS chip breaker for Swiss-type / automatic lathe turning (medium cutting).

Key features

  • MS chip breaker for medium cutting with good surface roughness
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape D (55° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker MS
Application Medium cutting
Hand Neutral
Cutting edge length l (mm) 11.6
Inscribed circle Ød (mm) 9.525
Thickness t (mm) 3.97
Hole diameter Ød1 (mm) 4.4
DCGT11T301-MS Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.09 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302-MS Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.19 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T304-MS Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.39 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301MFN-MS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.09 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCGT11T301MFN-MS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.09 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCGT11T302MFN-MS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.19 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCGT11T302MFN-MS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.19 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
DCGT11T304MFN-MS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.39 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
DCGT11T304MFN-MS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.39 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
Turning InsertsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert DCGT-MS

Brand Korloy·Turning Inserts

Available part numbers (9)

DCGT11T301-MS, DCGT11T302-MS, DCGT11T304-MS, DCGT11T301MFN-MS PC5300, DCGT11T301MFN-MS PC8110, DCGT11T302MFN-MS PC5300, DCGT11T302MFN-MS PC8110, DCGT11T304MFN-MS PC5300, DCGT11T304MFN-MS PC8110

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
