Korloy Auto Tools ISO Turning Insert VCGT-FS

Korloy Auto Tools ISO Turning Insert VCGT-FS

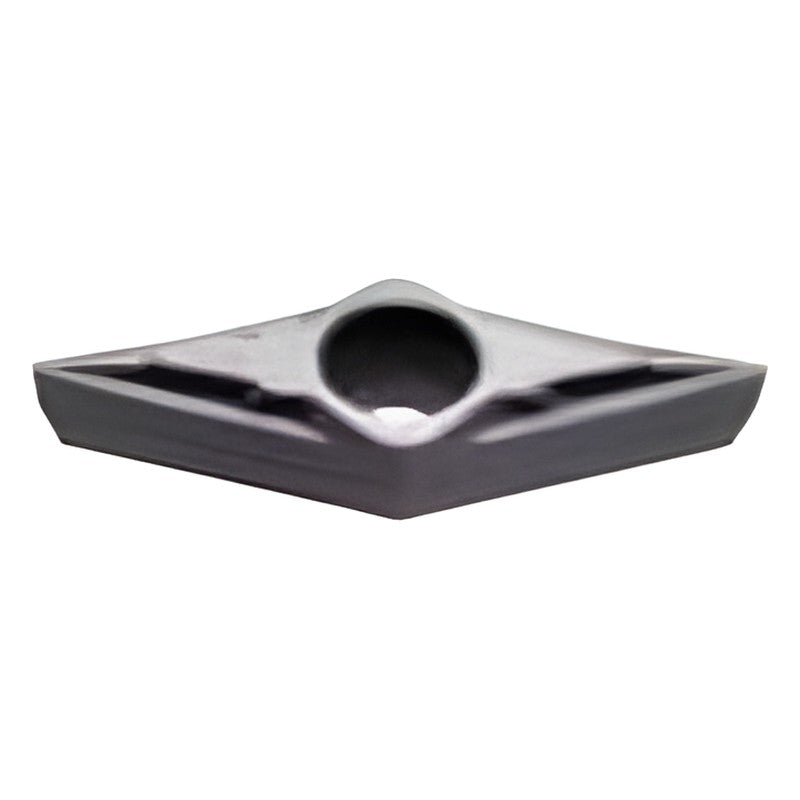

Precision-ground 35° rhombic positive VCGT insert with FS chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

  • FS chip breaker for finishing with stable chip control
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape V (35° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker FS
Application Finishing
Hand Neutral
VCGT110301-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110301-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110302-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110302-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110304-FS PC8110 Hand: Neutral | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Cutting edge length l (mm): 11.0 | Thickness t (mm): 3.18 | Inscribed circle Ød (mm): 6.35 | Grade: PC8110 | Stock: Yes
VCGT110304-FS PC5300 Hand: Neutral | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Cutting edge length l (mm): 11.0 | Thickness t (mm): 3.18 | Inscribed circle Ød (mm): 6.35 | Grade: PC5300 | Stock: Yes
VCGT160401-FS PC8110 Hand: Neutral | Hole diameter Ød1 (mm): 35° | Nose radius r (mm): 0.10 | Cutting edge length l (mm): 16.3 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Grade: PC8110 | Stock: Yes
VCGT160401-FS PC5300 Hand: Neutral | Hole diameter Ød1 (mm): 35° | Nose radius r (mm): 0.10 | Cutting edge length l (mm): 16.3 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Grade: PC5300 | Stock: Yes
VCGT160402-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 16.1 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
VCGT160402-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 16.1 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
VCGT160404-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 15.7 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
VCGT160404-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 15.7 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
VCGT110301MFN-FS Hand: Neutral | Cutting edge length l (mm): 10.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110302MFN-FS Hand: Neutral | Cutting edge length l (mm): 10.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110304MFN-FS Hand: Neutral | Cutting edge length l (mm): 11.4 | Hole diameter Ød1 (mm): 2.8 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Inscribed circle Ød (mm): 6.35 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT160401MFN-FS Hand: Neutral | Cutting edge length l (mm): 16.3 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 35° | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT160402MFN-FS Hand: Neutral | Cutting edge length l (mm): 16.1 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT160404MFN-FS Hand: Neutral | Cutting edge length l (mm): 15.7 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCGT-FS

Brand Korloy·Turning Inserts

Available part numbers (18)

VCGT110301-FS PC5300, VCGT110301-FS PC8110, VCGT110302-FS PC5300, VCGT110302-FS PC8110, VCGT110304-FS PC8110, VCGT110304-FS PC5300, VCGT160401-FS PC8110, VCGT160401-FS PC5300, VCGT160402-FS PC5300, VCGT160402-FS PC8110 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCGT110301-FS PC5300Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110301-FS PC8110Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110302-FS PC5300Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110302-FS PC8110Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110304-FS PC8110Hand: Neutral | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Cutting edge length l (mm): 11.0 | Thickness t (mm): 3.18 | Inscribed circle Ød (mm): 6.35 | Grade: PC8110 | Stock: Yes
VCGT110304-FS PC5300Hand: Neutral | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Cutting edge length l (mm): 11.0 | Thickness t (mm): 3.18 | Inscribed circle Ød (mm): 6.35 | Grade: PC5300 | Stock: Yes
VCGT160401-FS PC8110Hand: Neutral | Hole diameter Ød1 (mm): 35° | Nose radius r (mm): 0.10 | Cutting edge length l (mm): 16.3 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Grade: PC8110 | Stock: Yes
VCGT160401-FS PC5300Hand: Neutral | Hole diameter Ød1 (mm): 35° | Nose radius r (mm): 0.10 | Cutting edge length l (mm): 16.3 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Grade: PC5300 | Stock: Yes
VCGT160402-FS PC5300Hand: Neutral | Cutting edge length l (mm): 16.1 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
VCGT160402-FS PC8110Hand: Neutral | Cutting edge length l (mm): 16.1 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
VCGT160404-FS PC8110Hand: Neutral | Cutting edge length l (mm): 15.7 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
VCGT160404-FS PC5300Hand: Neutral | Cutting edge length l (mm): 15.7 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
VCGT110301MFN-FSHand: Neutral | Cutting edge length l (mm): 10.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110302MFN-FSHand: Neutral | Cutting edge length l (mm): 10.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110304MFN-FSHand: Neutral | Cutting edge length l (mm): 11.4 | Hole diameter Ød1 (mm): 2.8 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Inscribed circle Ød (mm): 6.35 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT160401MFN-FSHand: Neutral | Cutting edge length l (mm): 16.3 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 35° | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT160402MFN-FSHand: Neutral | Cutting edge length l (mm): 16.1 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT160404MFN-FSHand: Neutral | Cutting edge length l (mm): 15.7 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 4.76 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
