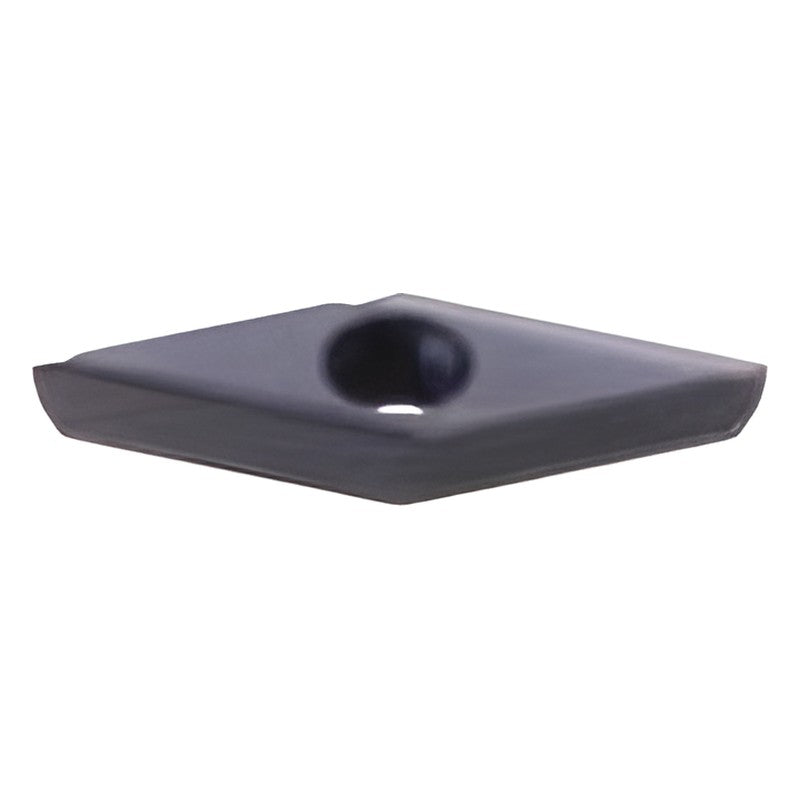

Korloy Auto Tools ISO Turning Insert VCGT-KM

Korloy Auto Tools ISO Turning Insert VCGT-KM

Precision-ground 35° rhombic positive VCGT insert with KM chip breaker for Swiss-type / automatic lathe turning (medium to finishing).

Key features

  • KM chip breaker for medium-to-finishing cutting
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape V (35° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker KM
Application Medium to finishing
Cutting edge length l (mm) 11
Inscribed circle Ød (mm) 6.35
Thickness t (mm) 3.18
Hole diameter Ød1 (mm) 2.8
VCGT1103003R-KM Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110301R-KM Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110302R-KM PC9030 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC9030 | Stock: Yes
VCGT1103003L-KM Hand: Left | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110301L-KM Hand: Left | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT110302L-KM Hand: Left | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCGT-KM

Brand Korloy·Turning Inserts

Available part numbers (6)

VCGT1103003R-KM, VCGT110301R-KM, VCGT110302R-KM PC9030, VCGT1103003L-KM, VCGT110301L-KM, VCGT110302L-KM

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
