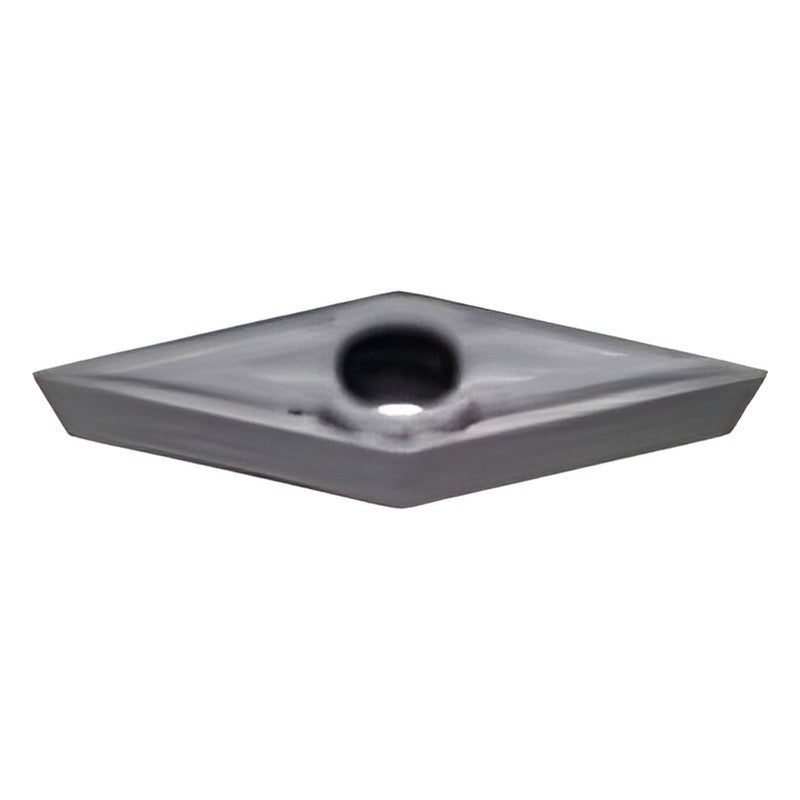

Korloy Auto Tools ISO Turning Insert VCGT-MS (2021 Catalog Additions)

Precision-ground 35° rhombic positive VCGT insert with MS chip breaker for Swiss-type / automatic lathe turning (medium cutting).

Key features

MS chip breaker for medium cutting with good surface roughness
Positive 7° relief for low cutting force on small parts
Precise nose R with minus tolerance (MF types)
Sharp edges for chip control and surface roughness on small diameters
For precision electrical/electronic and medical components

Specifications

Insert shape	V (35° rhombic)
Relief angle	7°
Tolerance class	G
Chip breaker	MS
Application	Medium cutting
Hand	Neutral
Inscribed circle Ød (mm)	6.35
Thickness t (mm)	3.18
Hole diameter Ød1 (mm)	2.8
Stock	Yes

VCGT110301-MS PC8110		Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.10 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
VCGT110301-MS PC5300		Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.10 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
VCGT110302-MS PC8110		Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.20 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 10.6 \| Grade: PC8110 \| Stock: Yes
VCGT110302-MS PC5300		Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.20 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 10.6 \| Grade: PC5300 \| Stock: Yes
VCGT110304-MS PC8110		Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 11.4 \| Grade: PC8110 \| Stock: Yes
VCGT110304-MS PC5300		Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 11.4 \| Grade: PC5300 \| Stock: Yes
VCGT110301MFN-MS PC5300		Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCGT110301MFN-MS PC8110		Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCGT110302MFN-MS PC5300		Hand: Neutral \| Cutting edge length l (mm): 10.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCGT110302MFN-MS PC8110		Hand: Neutral \| Cutting edge length l (mm): 10.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCGT110304MFN-MS PC5300		Hand: Neutral \| Cutting edge length l (mm): 11.4 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.4 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCGT110304MFN-MS PC8110		Hand: Neutral \| Cutting edge length l (mm): 11.4 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.4 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes

Turning InsertsKorloy

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCGT-MS (2021 Catalog Additions)

Brand Korloy·Turning Inserts

Available part numbers (12)

VCGT110301-MS PC8110, VCGT110301-MS PC5300, VCGT110302-MS PC8110, VCGT110302-MS PC5300, VCGT110304-MS PC8110, VCGT110304-MS PC5300, VCGT110301MFN-MS PC5300, VCGT110301MFN-MS PC8110, VCGT110302MFN-MS PC5300, VCGT110302MFN-MS PC8110 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VCGT110301-MS PC8110	Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.10 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC8110 \| Stock: Yes
	VCGT110301-MS PC5300	Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.10 \| Hole diameter Ød1 (mm): 2.8 \| Grade: PC5300 \| Stock: Yes
	VCGT110302-MS PC8110	Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.20 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 10.6 \| Grade: PC8110 \| Stock: Yes
	VCGT110302-MS PC5300	Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.20 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 10.6 \| Grade: PC5300 \| Stock: Yes
	VCGT110304-MS PC8110	Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 11.4 \| Grade: PC8110 \| Stock: Yes
	VCGT110304-MS PC5300	Hand: Neutral \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.40 \| Hole diameter Ød1 (mm): 2.8 \| Cutting edge length l (mm): 11.4 \| Grade: PC5300 \| Stock: Yes
	VCGT110301MFN-MS PC5300	Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCGT110301MFN-MS PC8110	Hand: Neutral \| Cutting edge length l (mm): 10.8 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCGT110302MFN-MS PC5300	Hand: Neutral \| Cutting edge length l (mm): 10.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCGT110302MFN-MS PC8110	Hand: Neutral \| Cutting edge length l (mm): 10.6 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCGT110304MFN-MS PC5300	Hand: Neutral \| Cutting edge length l (mm): 11.4 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.4 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCGT110304MFN-MS PC8110	Hand: Neutral \| Cutting edge length l (mm): 11.4 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.4 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
