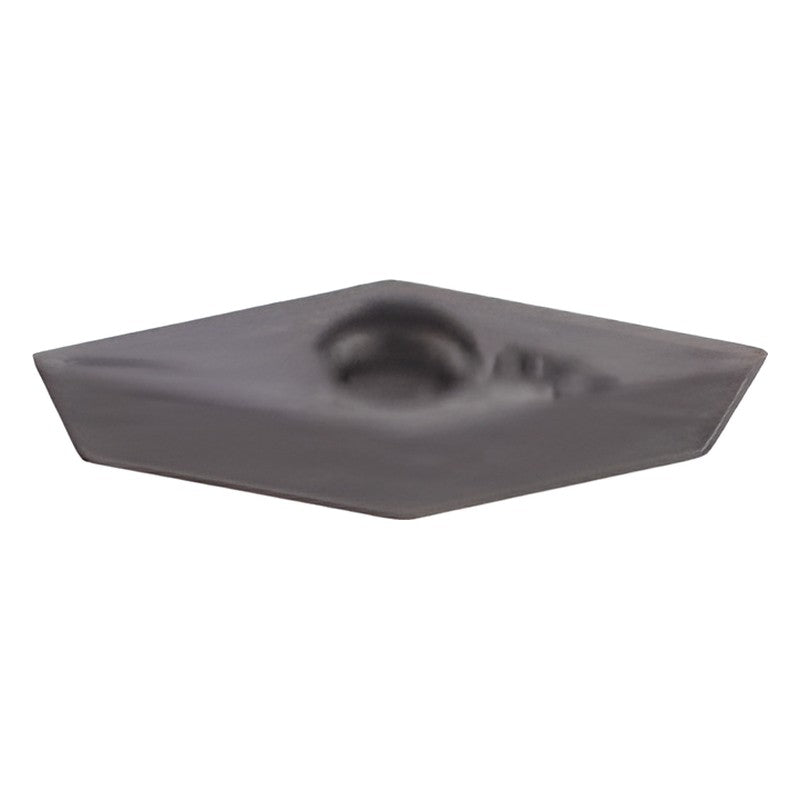

Korloy Auto Tools ISO Turning Insert VCGT-VP1

Korloy Auto Tools ISO Turning Insert VCGT-VP1

Precision-ground 35° rhombic positive VCGT insert with VP1 chip breaker for Swiss-type / automatic lathe turning (finishing / medium cutting).

Key features

  • VP1 chip breaker for medium cutting with edge toughness
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape V (35° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker VP1
Application Finishing / medium cutting
Hand Neutral
Cutting edge length l (mm) 11
Inscribed circle Ød (mm) 6.35
Thickness t (mm) 3.18
Hole diameter Ød1 (mm) 2.8
Stock Yes
VCGT110301-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110301-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
VCGT110301-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110301-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
VCGT110301-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
VCGT110302-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110302-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
VCGT110302-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110302-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
VCGT110302-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
VCGT110304-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110304-VP1 PC8105 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
VCGT110304-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110304-VP1 PC8115 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
VCGT110304-VP1 H01 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
VCGT110301MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGT110301MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGT110302MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGT110302MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGT110304MFN-VP1 PC5300 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGT110304MFN-VP1 PC8110 Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
Turning InsertsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCGT-VP1

Brand Korloy·Turning Inserts

Available part numbers (21)

VCGT110301-VP1 PC5300, VCGT110301-VP1 PC8105, VCGT110301-VP1 PC8110, VCGT110301-VP1 PC8115, VCGT110301-VP1 H01, VCGT110302-VP1 PC5300, VCGT110302-VP1 PC8105, VCGT110302-VP1 PC8110, VCGT110302-VP1 PC8115, VCGT110302-VP1 H01 + 11 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCGT110301-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110301-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
VCGT110301-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110301-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
VCGT110301-VP1 H01Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
VCGT110302-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110302-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
VCGT110302-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110302-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
VCGT110302-VP1 H01Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
VCGT110304-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VCGT110304-VP1 PC8105Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8105 | Stock: Yes
VCGT110304-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VCGT110304-VP1 PC8115Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8115 | Stock: Yes
VCGT110304-VP1 H01Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Grade: H01 | Stock: Yes
VCGT110301MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGT110301MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGT110302MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGT110302MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGT110304MFN-VP1 PC5300Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGT110304MFN-VP1 PC8110Hand: Neutral | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
