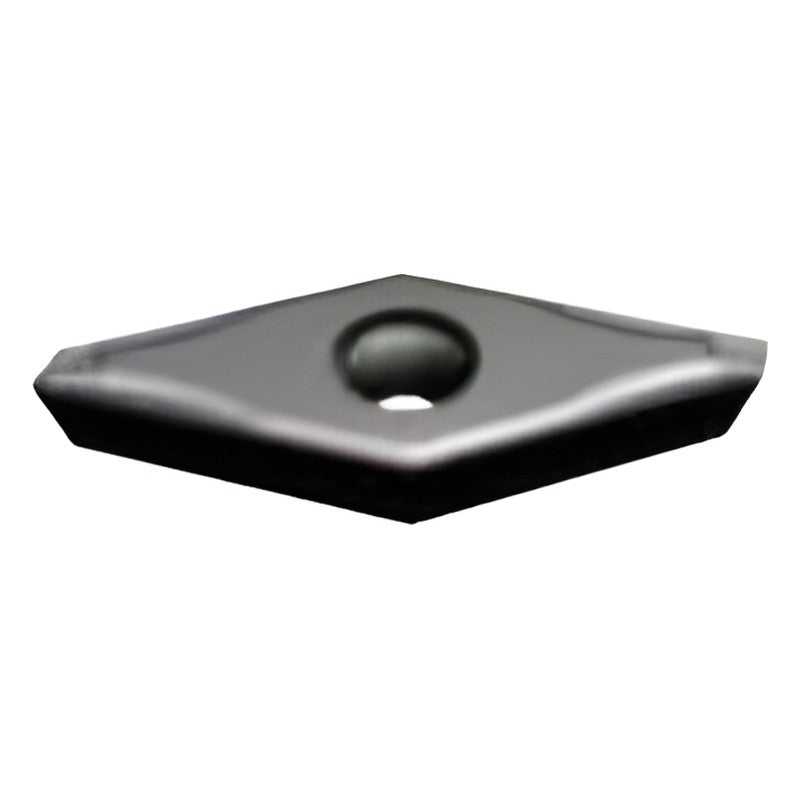

Korloy Auto Tools ISO Turning Insert VCGX-VP1

Korloy Auto Tools ISO Turning Insert VCGX-VP1

Precision-ground 35° rhombic positive VCGX insert with VP1 chip breaker for Swiss-type / automatic lathe turning (finishing / medium cutting).

Key features

  • VP1 chip breaker for medium cutting with edge toughness
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape V (35° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker VP1
Application Finishing / medium cutting
Hand Right
Cutting edge length l (mm) 11
Inscribed circle Ød (mm) 7.50
Thickness t (mm) 3.18
Hole diameter Ød1 (mm) 2.8
Nose R tolerance Minus (MF, high precision)
Stock Yes
VCGX120300MFR-VP1 PC5300 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.0 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120300MFR-VP1 PC8110 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.0 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120301MFR-VP1 PC5300 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120301MFR-VP1 PC8110 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120302MFR-VP1 PC5300 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120302MFR-VP1 PC8110 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120304MFR-VP1 PC5300 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120304MFR-VP1 PC8110 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120308MFR-VP1 PC5300 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120308MFR-VP1 PC8110 Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
Turning InsertsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCGX-VP1

Brand Korloy·Turning Inserts

Available part numbers (10)

VCGX120300MFR-VP1 PC5300, VCGX120300MFR-VP1 PC8110, VCGX120301MFR-VP1 PC5300, VCGX120301MFR-VP1 PC8110, VCGX120302MFR-VP1 PC5300, VCGX120302MFR-VP1 PC8110, VCGX120304MFR-VP1 PC5300, VCGX120304MFR-VP1 PC8110, VCGX120308MFR-VP1 PC5300, VCGX120308MFR-VP1 PC8110

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCGX120300MFR-VP1 PC5300Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.0 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120300MFR-VP1 PC8110Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.0 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120301MFR-VP1 PC5300Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120301MFR-VP1 PC8110Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120302MFR-VP1 PC5300Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120302MFR-VP1 PC8110Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120304MFR-VP1 PC5300Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120304MFR-VP1 PC8110Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
VCGX120308MFR-VP1 PC5300Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC5300 | Stock: Yes
VCGX120308MFR-VP1 PC8110Hand: Right | Cutting edge length l (mm): 11 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grade: PC8110 | Stock: Yes
