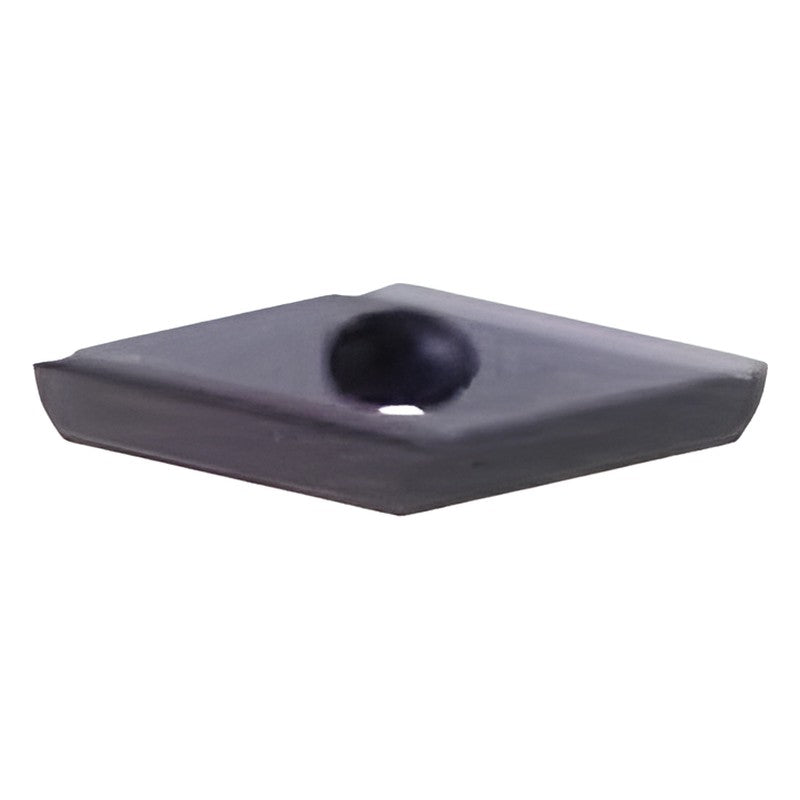

Korloy Auto Tools ISO Turning Insert VPGT-KM

Korloy Auto Tools ISO Turning Insert VPGT-KM

Precision-ground 35° rhombic positive VPGT insert with KM chip breaker for Swiss-type / automatic lathe turning (medium to finishing).

Key features

  • KM chip breaker for medium-to-finishing cutting
  • Positive 11° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape V (35° rhombic)
Relief angle 11°
Tolerance class G
Chip breaker KM
Application Medium to finishing
Stock Yes
VPGT080201R-KM PC5300 Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080201R-KM PC8110 Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT080202R-KM PC5300 Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080202R-KM PC8110 Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT1103003R-KM PC5300 Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT1103003R-KM PC8110 Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110301R-KM PC5300 Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110301R-KM PC8110 Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110302R-KM PC5300 Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110302R-KM PC8110 Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT080201L-KM PC5300 Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080201L-KM PC8110 Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT080202L-KM PC5300 Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080202L-KM PC8110 Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT1103003L-KM PC5300 Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT1103003L-KM PC8110 Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110301L-KM PC5300 Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110301L-KM PC8110 Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110302L-KM PC5300 Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110302L-KM PC8110 Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
Turning InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VPGT-KM

Brand Korloy·Turning Inserts

Available part numbers (20)

VPGT080201R-KM PC5300, VPGT080201R-KM PC8110, VPGT080202R-KM PC5300, VPGT080202R-KM PC8110, VPGT1103003R-KM PC5300, VPGT1103003R-KM PC8110, VPGT110301R-KM PC5300, VPGT110301R-KM PC8110, VPGT110302R-KM PC5300, VPGT110302R-KM PC8110 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VPGT080201R-KM PC5300Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080201R-KM PC8110Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT080202R-KM PC5300Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080202R-KM PC8110Hand: Right | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT1103003R-KM PC5300Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT1103003R-KM PC8110Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110301R-KM PC5300Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110301R-KM PC8110Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110302R-KM PC5300Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110302R-KM PC8110Hand: Right | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT080201L-KM PC5300Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080201L-KM PC8110Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT080202L-KM PC5300Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC5300 | Stock: Yes
VPGT080202L-KM PC8110Hand: Left | Cutting edge length l (mm): 8.0 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.3 | Grade: PC8110 | Stock: Yes
VPGT1103003L-KM PC5300Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT1103003L-KM PC8110Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.03 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110301L-KM PC5300Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110301L-KM PC8110Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
VPGT110302L-KM PC5300Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
VPGT110302L-KM PC8110Hand: Left | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 3.18 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
