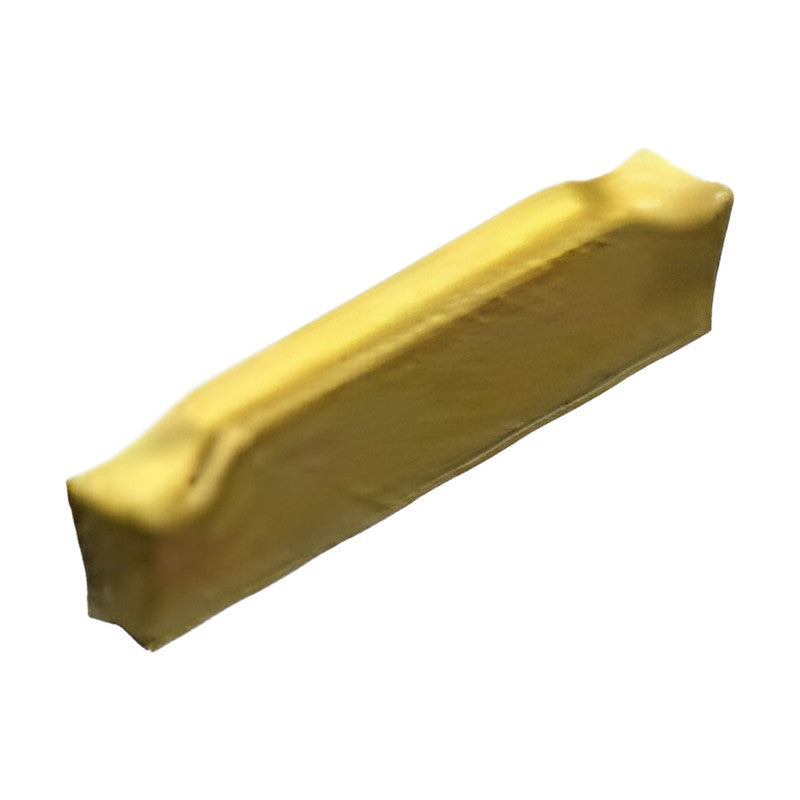

Korloy Auto Tools KGT Grooving Insert KGMR-LP/RP

Korloy Auto Tools KGT Grooving Insert KGMR-LP/RP

Double-sided KGT grooving insert (KGMR-LP/RP) for automatic lathes - parting off (right-handed).

Key features

  • Economic double-sided insert
  • Strong clamping in exclusive KGEHR/L holders
  • Widths 2 and 3 mm
  • Grades NC3225 / NC5330 / PC5300 / PC9030 (availability per row)

Specifications

Chip breaker KGMR-LP/RP
Application Parting off (right-handed)
Corner radius r (mm) 0.2
Length ℓ (mm) 20
Stock Yes
KGMR200-6D-LP NC5330 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR200-6D-LP PC5300 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR200-15D-LP NC5330 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR200-15D-LP PC5300 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
KGMR300-6D-LP NC5330 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR300-6D-LP PC5300 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR300-15D-LP NC5330 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR300-15D-LP PC5300 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
KGMR200-6D-RP NC5330 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR200-6D-RP PC5300 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR200-15D-RP NC5330 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR200-15D-RP PC5300 Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
KGMR300-6D-RP NC5330 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR300-6D-RP PC5300 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR300-15D-RP NC5330 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR300-15D-RP PC5300 Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
Grooving InsertsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools KGT Grooving Insert KGMR-LP/RP

Brand Korloy·Grooving Inserts

Available part numbers (16)

KGMR200-6D-LP NC5330, KGMR200-6D-LP PC5300, KGMR200-15D-LP NC5330, KGMR200-15D-LP PC5300, KGMR300-6D-LP NC5330, KGMR300-6D-LP PC5300, KGMR300-15D-LP NC5330, KGMR300-15D-LP PC5300, KGMR200-6D-RP NC5330, KGMR200-6D-RP PC5300 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGMR200-6D-LP NC5330Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR200-6D-LP PC5300Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR200-15D-LP NC5330Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR200-15D-LP PC5300Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
KGMR300-6D-LP NC5330Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR300-6D-LP PC5300Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR300-15D-LP NC5330Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR300-15D-LP PC5300Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
KGMR200-6D-RP NC5330Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR200-6D-RP PC5300Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR200-15D-RP NC5330Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR200-15D-RP PC5300Width b (mm): 2 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
KGMR300-6D-RP NC5330Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: NC5330 | Stock: Yes
KGMR300-6D-RP PC5300Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 6 | Grade: PC5300 | Stock: Yes
KGMR300-15D-RP NC5330Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: NC5330 | Stock: Yes
KGMR300-15D-RP PC5300Width b (mm): 3 | Corner radius r (mm): 0.2 | Length ℓ (mm): 20 | d (mm): 2.3 | Lead angle α (°): 15 | Grade: PC5300 | Stock: Yes
