• Korloy Auto Tools KGT Grooving Insert KRMN-C
1 1

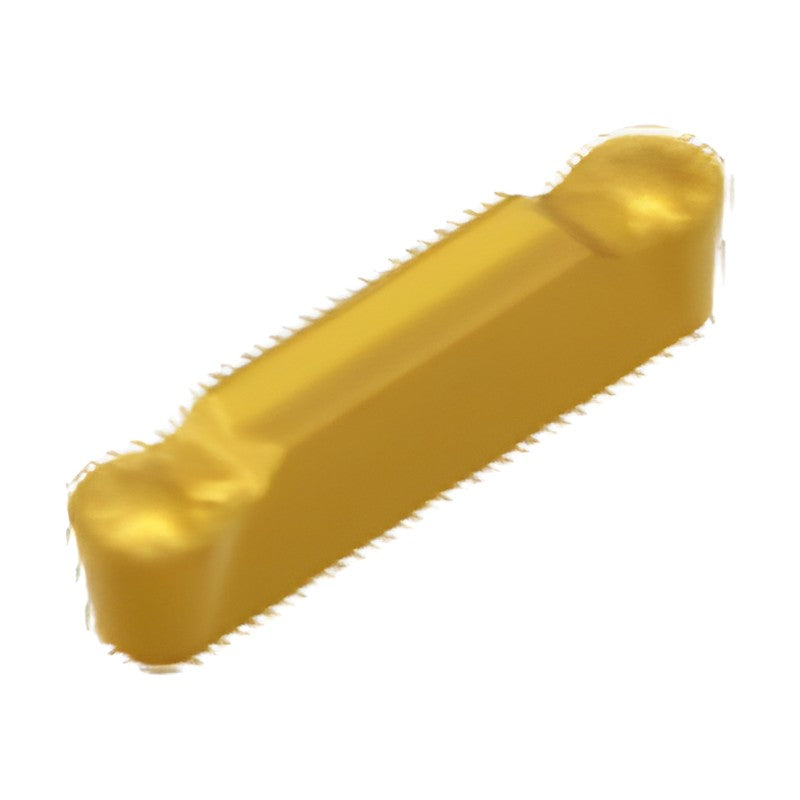

Korloy Auto Tools KGT Grooving Insert KRMN-C

Korloy Auto Tools KGT Grooving Insert KRMN-C

Double-sided KGT grooving insert (KRMN-C) for automatic lathes - grooving / turning (full radius).

Key features

  • Economic double-sided insert
  • Strong clamping in exclusive KGEHR/L holders
  • Widths 2 and 3 mm
  • Grades NC3225 / NC5330 / PC5300 / PC9030 (availability per row)

Specifications

Chip breaker KRMN-C
Application Grooving / turning (full radius)
Length ℓ (mm) 20
Lead angle α (°) -
Stock Yes
KRMN200-C NC3225 Width b (mm): 2 | Corner radius r (mm): 1 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): - | Grade: NC3225 | Stock: Yes
KRMN200-C NC5330 Width b (mm): 2 | Corner radius r (mm): 1 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): - | Grade: NC5330 | Stock: Yes
KRMN200-C PC5300 Width b (mm): 2 | Corner radius r (mm): 1 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): - | Grade: PC5300 | Stock: Yes
KRMN300-C NC3225 Width b (mm): 3 | Corner radius r (mm): 1.5 | Length ℓ (mm): 20 | d (mm): 2.2 | Lead angle α (°): - | Grade: NC3225 | Stock: Yes
KRMN300-C NC5330 Width b (mm): 3 | Corner radius r (mm): 1.5 | Length ℓ (mm): 20 | d (mm): 2.2 | Lead angle α (°): - | Grade: NC5330 | Stock: Yes
KRMN300-C PC5300 Width b (mm): 3 | Corner radius r (mm): 1.5 | Length ℓ (mm): 20 | d (mm): 2.2 | Lead angle α (°): - | Grade: PC5300 | Stock: Yes
Grooving InsertsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools KGT Grooving Insert KRMN-C

Brand Korloy·Grooving Inserts

Available part numbers (6)

KRMN200-C NC3225, KRMN200-C NC5330, KRMN200-C PC5300, KRMN300-C NC3225, KRMN300-C NC5330, KRMN300-C PC5300

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KRMN200-C NC3225Width b (mm): 2 | Corner radius r (mm): 1 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): - | Grade: NC3225 | Stock: Yes
KRMN200-C NC5330Width b (mm): 2 | Corner radius r (mm): 1 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): - | Grade: NC5330 | Stock: Yes
KRMN200-C PC5300Width b (mm): 2 | Corner radius r (mm): 1 | Length ℓ (mm): 20 | d (mm): 1.7 | Lead angle α (°): - | Grade: PC5300 | Stock: Yes
KRMN300-C NC3225Width b (mm): 3 | Corner radius r (mm): 1.5 | Length ℓ (mm): 20 | d (mm): 2.2 | Lead angle α (°): - | Grade: NC3225 | Stock: Yes
KRMN300-C NC5330Width b (mm): 3 | Corner radius r (mm): 1.5 | Length ℓ (mm): 20 | d (mm): 2.2 | Lead angle α (°): - | Grade: NC5330 | Stock: Yes
KRMN300-C PC5300Width b (mm): 3 | Corner radius r (mm): 1.5 | Length ℓ (mm): 20 | d (mm): 2.2 | Lead angle α (°): - | Grade: PC5300 | Stock: Yes
