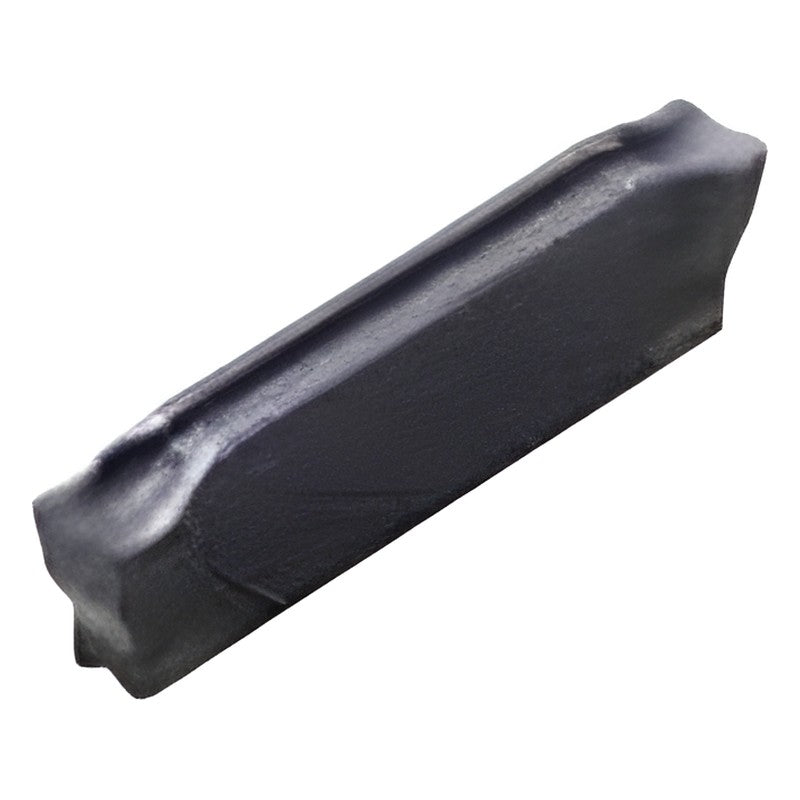

Korloy Auto Tools MGT Grooving Insert MGMN-L

Korloy Auto Tools MGT Grooving Insert MGMN-L

Double-sided MGT grooving insert MGMN-L for automatic lathes - grooving.

Key features

  • Economic double-sided insert
  • For MGEHR/L exclusive holders
  • Widths 1.5~2.5 mm
  • Grades NC3030 / NC3120 / PC5300 / PC9030 (availability per row)

Specifications

Chip breaker MGMN-L
Application Grooving
Stock Yes
MGMN200-02-L NC3030 Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: NC3030 | Stock: Yes
MGMN200-02-L PC5300 Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN200-04-L PC5300 Width b (mm): 2.0 | Corner radius r (mm): 0.40 | Length l (mm): 16.0 | d (mm): 1.7 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN250-02-L NC3030 Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: NC3030 | Stock: Yes
MGMN250-02-L PC5300 Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: PC5300 | Stock: Yes
Grooving InsertsKorloy
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools MGT Grooving Insert MGMN-L

Brand Korloy·Grooving Inserts

Available part numbers (5)

MGMN200-02-L NC3030, MGMN200-02-L PC5300, MGMN200-04-L PC5300, MGMN250-02-L NC3030, MGMN250-02-L PC5300

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGMN200-02-L NC3030Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: NC3030 | Stock: Yes
MGMN200-02-L PC5300Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN200-04-L PC5300Width b (mm): 2.0 | Corner radius r (mm): 0.40 | Length l (mm): 16.0 | d (mm): 1.7 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN250-02-L NC3030Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: NC3030 | Stock: Yes
MGMN250-02-L PC5300Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: PC5300 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
