Korloy Auto Tools MSB Micro Boring Tool MGFR Face Grooving

Korloy Auto Tools MSB Micro Boring Tool MGFR Face Grooving

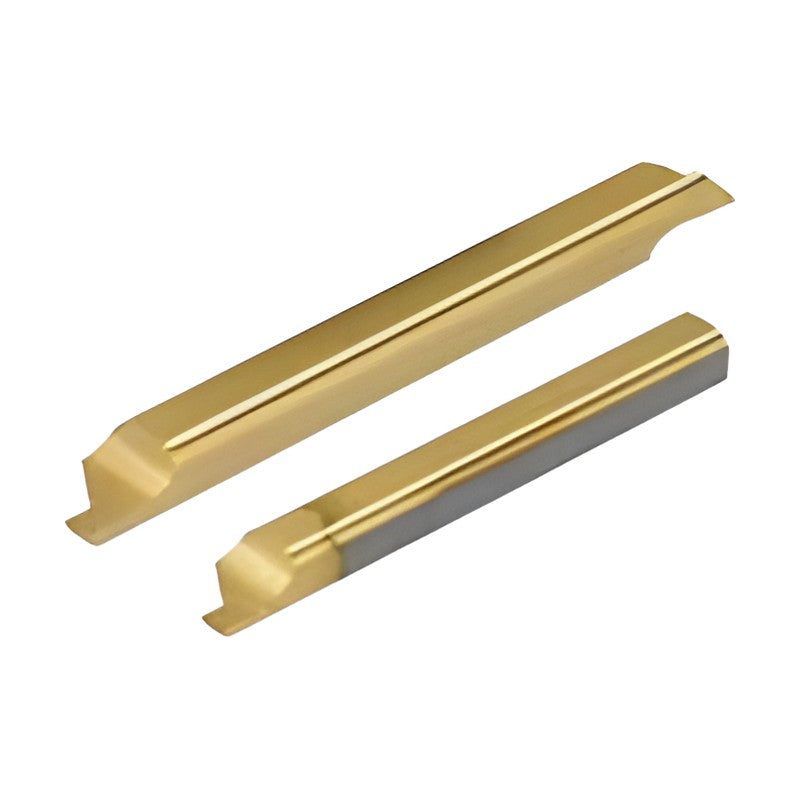

Solid carbide micro small boring tool MGFR for face grooving of small bores on automatic lathes.

Key features

  • Micro small boring bar (MSB) for small-bore machining on automatic lathes
  • High-hardness grade PC30M for long tool life
  • Twin-edge (double-ended) and single-edge versions
  • For fittings, valves, medical and automotive parts
  • Used with SL sleeves

Specifications

Series MGFR
Application Face Grooving
Grade PC30M (coated)
Grades PC30M
Stock Not marked as stock item
MGFR0400-1.0 Min. bore/face diameter Ød (mm): 4.0 | Groove width (mm): 1.0 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0400-1.0-1 Min. bore/face diameter Ød (mm): 4.0 | Groove width (mm): 1.0 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0400-1.5 Min. bore/face diameter Ød (mm): 4.0 | Groove width (mm): 1.5 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0400-1.5-1 Min. bore/face diameter Ød (mm): 4.0 | Groove width (mm): 1.5 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0600-1.0 Min. bore/face diameter Ød (mm): 6.0 | Groove width (mm): 1.0 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0600-1.0-1 Min. bore/face diameter Ød (mm): 6.0 | Groove width (mm): 1.0 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0600-1.5 Min. bore/face diameter Ød (mm): 6.0 | Groove width (mm): 1.5 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0600-1.5-1 Min. bore/face diameter Ød (mm): 6.0 | Groove width (mm): 1.5 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0600-2.0 Min. bore/face diameter Ød (mm): 6.0 | Groove width (mm): 2.0 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0622-2.0-1 Min. bore/face diameter Ød (mm): 6.0 | Groove width (mm): 2.0 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0800-1.0 Min. bore/face diameter Ød (mm): 8.0 | Groove width (mm): 1.0 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0800-1.0-1 Min. bore/face diameter Ød (mm): 8.0 | Groove width (mm): 1.0 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0800-1.5 Min. bore/face diameter Ød (mm): 8.0 | Groove width (mm): 1.5 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0800-1.5-1 Min. bore/face diameter Ød (mm): 8.0 | Groove width (mm): 1.5 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0800-2.0 Min. bore/face diameter Ød (mm): 8.0 | Groove width (mm): 2.0 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR0800-2.0-1 Min. bore/face diameter Ød (mm): 8.0 | Groove width (mm): 2.0 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-2.0 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 2.0 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-2.0-1 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 2.0 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-2.5 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 2.5 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-2.5-1 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 2.5 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-3.0 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 3.0 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-3.0-1 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 3.0 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-3.5 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 3.5 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-3.5-1 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 3.5 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-4.0 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 4.0 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-4.0-1 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 4.0 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-4.5 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 4.5 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGFR1000-4.5-1 Min. bore/face diameter Ød (mm): 10.0 | Groove width (mm): 4.5 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
